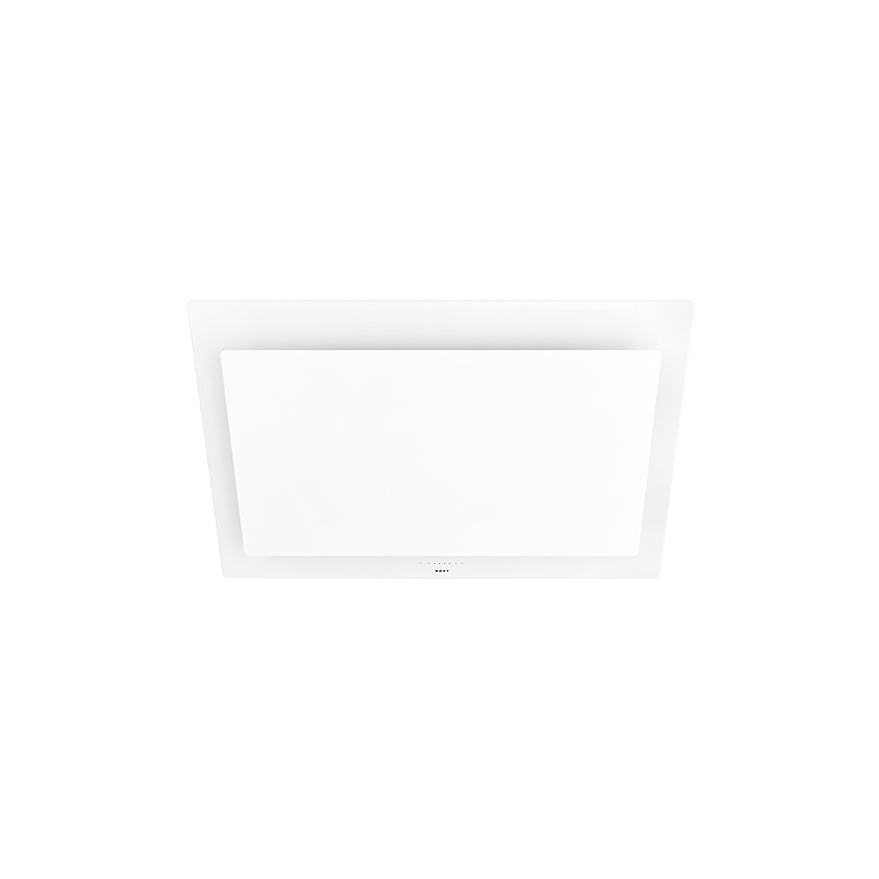

Novy Wall mounted Vision 7839

Name: Novy Wall mounted Vision 7839
Brand: Novy
Price: 1894 EUR
Availability: InStock

Type number: 7839

Comparer

See other versions of this product

Just that little bit more in terms of design

Vision 90 cm White

modern, clean look
stainless steel & white glass
models with recirculation as standard, making an outlet to the outside unnecessary
subtle LED lighting (2700K)

Optional

Specifications

Energy label

Lighting Efficiency class (LEhood)

Functions and features

Control method

Touch control

Number of speeds

3 + power

Automatic Power revert (minutes)

Motor

Integrated

Sound absorber

Integrated

Recirculation

Standard, Monoblock

InTouch function

Optional

Auto stop

Yes

Delayed switch off (minutes)

Number of grease filters

Grease filter

7830020

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Yes

Lighting

Functional light dimmable

Soft-ON/OFF

Number of functional lights

Total energy consumption functional light (W)

Color functional light (K)

2700

Dimensions

Advised mounting height induction hobs (Hmin-Hmax) (mm)

500 - 750

Product dimensions exhaust (WxDxHmin-Hmax) (mm)

898 x 426 x -

Product dimensions recirculation (WxDxHmin-Hmax) (mm)

898 x 426 x 517 - 517

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

500 - 750

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 750

Diameter outlet (mm)

Not applicable

Position exhaust

Top

Airflow and noise level

Airflow duct out speed 1 (m³/h)

124

Airflow duct out speed 2 (m³/h)

196

Airflow duct out speed 3 (m³/h)

394

Airflow duct out max powerspeed (m³/h) (Qboost)

490

Sound pressure duct out speed 1 (dB(A))

Sound pressure duct out speed 2 (dB(A))

Sound pressure duct out speed 3 (dB(A))

Sound pressure duct out at max powerspeed (dB(A))

Technical specifications

Maximum power (W)

200

Voltage appliance (V)

230

Frequency (Hz)

Length power supply cable (m)

1,3

Power consumption in stand-by-mode (Ps) (W)

0.29

Net weight (kg)

See all specifications

Manuals & downloads

Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing
