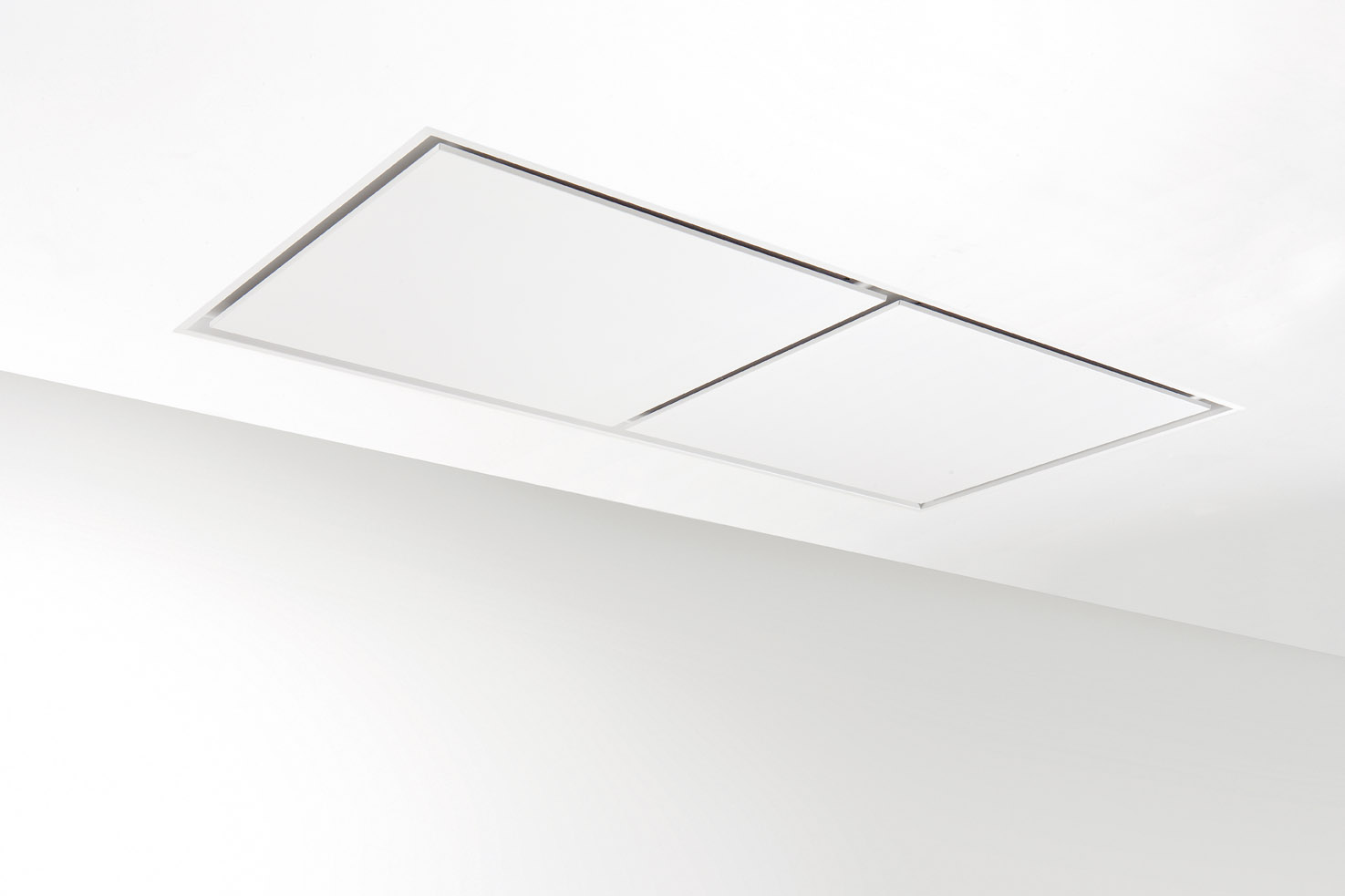

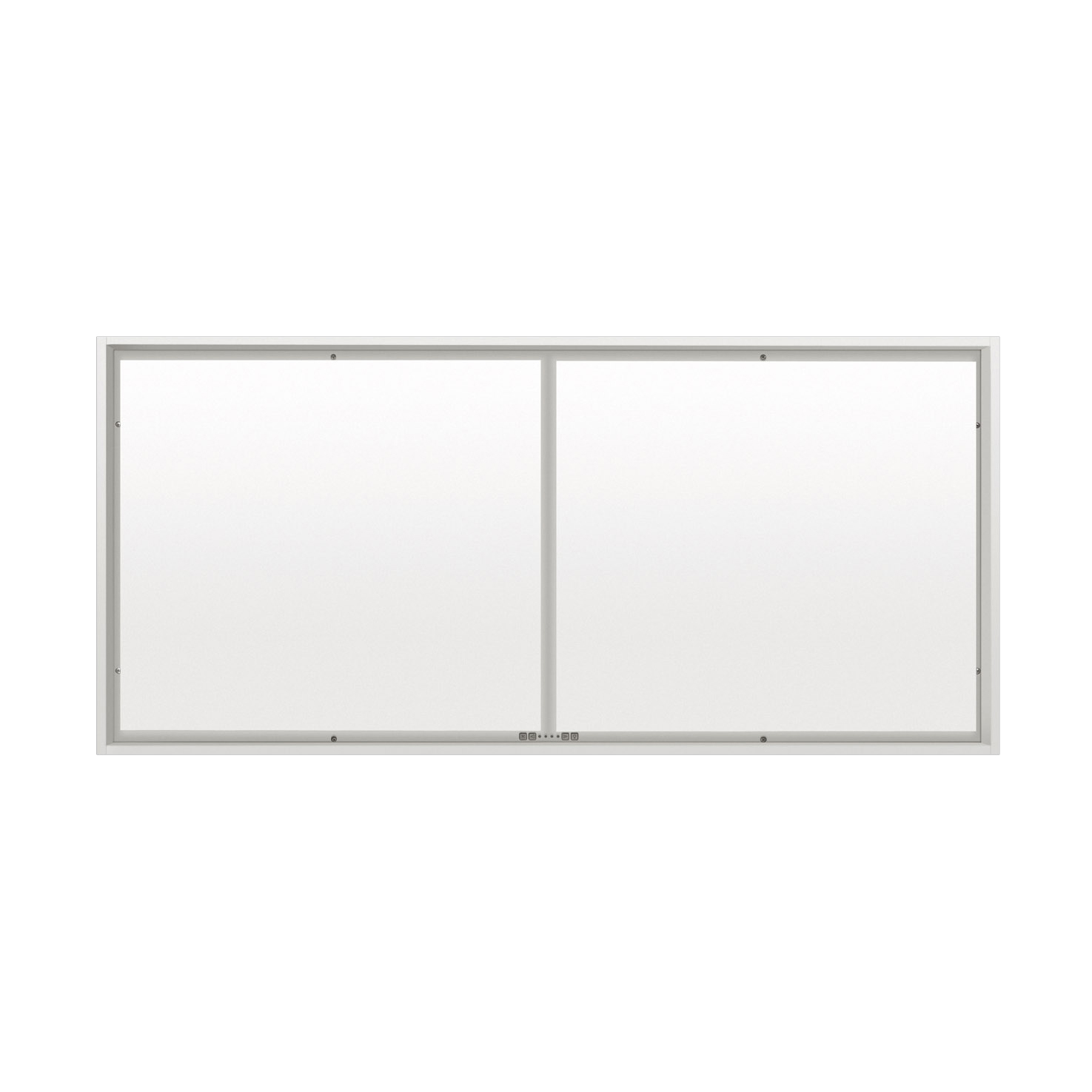

Ceiling unit Novy Maxi Pureline 150 cm
Type number: 856
856 Ceiling unit Novy Maxi Pureline 150 cm White
- Maximum efficiency with powerful operation
- No lighting, external lighting can be connected
- Industrial look
- No motor: Connectable to 2 indoor or outdoor motors
- Extra large: Ideal for optimal extraction
- Easy operation: Via remote control or InTouch
Specifications
Weights & Dimensions
Product Depth
670 Millimeter
Product Width
1460 Millimeter
Product Height
90 Millimeter
Product Weight
36 Kilogram
Width
150 cm
Height incl. mounting clamps (without motorbox) (mm)
133 Millimeter
Product Dimensions (WxDxH)
1460 x 670 x 90
Energy Specifications
Electrical Volts
230V
Fuse (A)
10
Length power supply cable
1.2 Meter
Electrical Hertz (frequency)
50 Hertz
Electrical Connection (Plug) Type
Schuko
Electrical Connection Location
Top
Installation Details
Max mounting height gas hobs
1600 Millimeter
Min mounting height gas hobs
650 Millimeter
Max mounting height ceramic hobs
1600 Millimeter
Min mounting height ceramic hobs
600 Millimeter
Max mounting height induction hobs
1600 Millimeter
Min mounting height induction hobs
600 Millimeter
Width flange (mm)
14
Position exhaust (to be delete)
Boven
Installation Type
Built-in appliance
Depth cut out opening (mm)
648
Width cut out opening (mm)
1438
Dimensions cut-out opening (WxD) (mm)
1438 x 648
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 1600
Advised mounting height above ceramic hobs (Hmin-Hmax) (mm)
600 -1600
Advised mounting height induction hobs (Hmin-Hmax) (mm)
600 - 1600
Functions and Features
Auto stop
Yes
Novy Connect
Not applicable
Sound absorber
Integrated
InTouch function
Standard
Number of Motors
2
Automatic Power revert (minutes)
6 Minute
Delayed switch off
Yes
Fan Motor Location
Without
Automatic operation
No
Number of Fan Speeds
3 + power
Perimeter extraction
Yes
Association / Grease filter
7400020
External light connector
220-230V / max 300W / Not dimmable
Number of Grease Filters
2
Diameter outlet
2x150
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Control Type
Electronic
Recirculation
optional
Control method
Remote control, Push buttons
Info display color
Green, Red
Finishing
Powder coating
Delayed Switch Off Minutes
10_30
Regulation, Compliance, Certifications
Lighting Efficiency class (LEhood)
Niet van toepassing
Additional Technical Specifications
Exterior Finish Color
White
Association / Dissociated motor
245999,445999,745999,755999
Association / Cleaning
906060, 906091, 906092, 906093
Association / One-way valves
906271, 906432
Association / Remote control
840029
Assocation / Extension cable
7000092

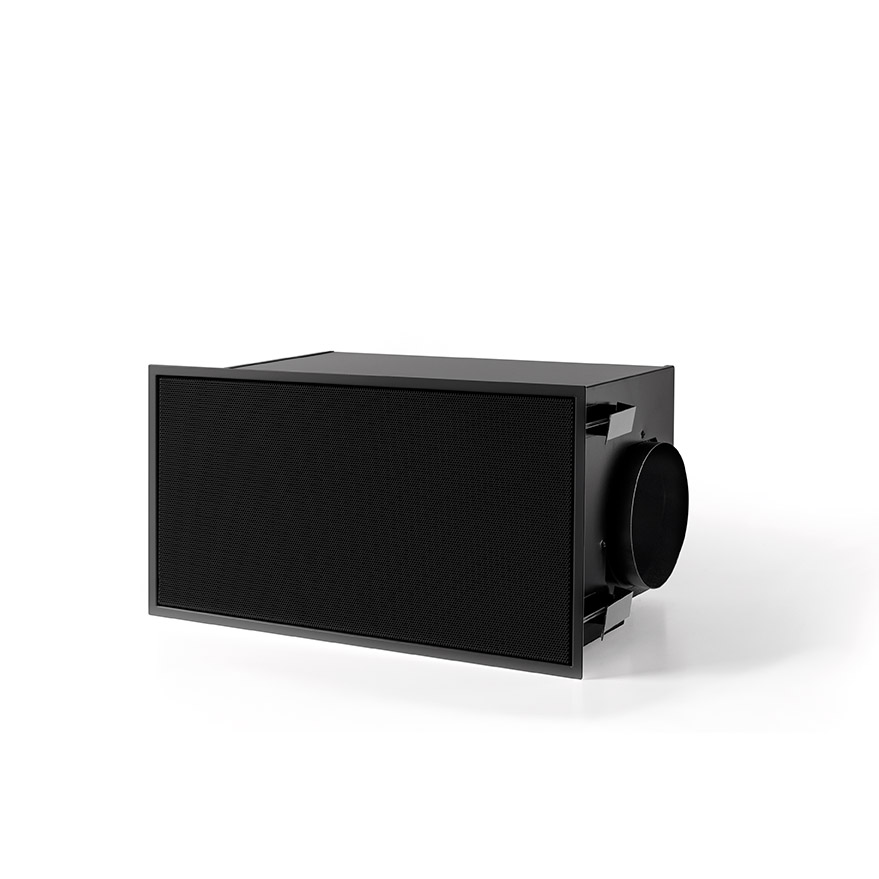

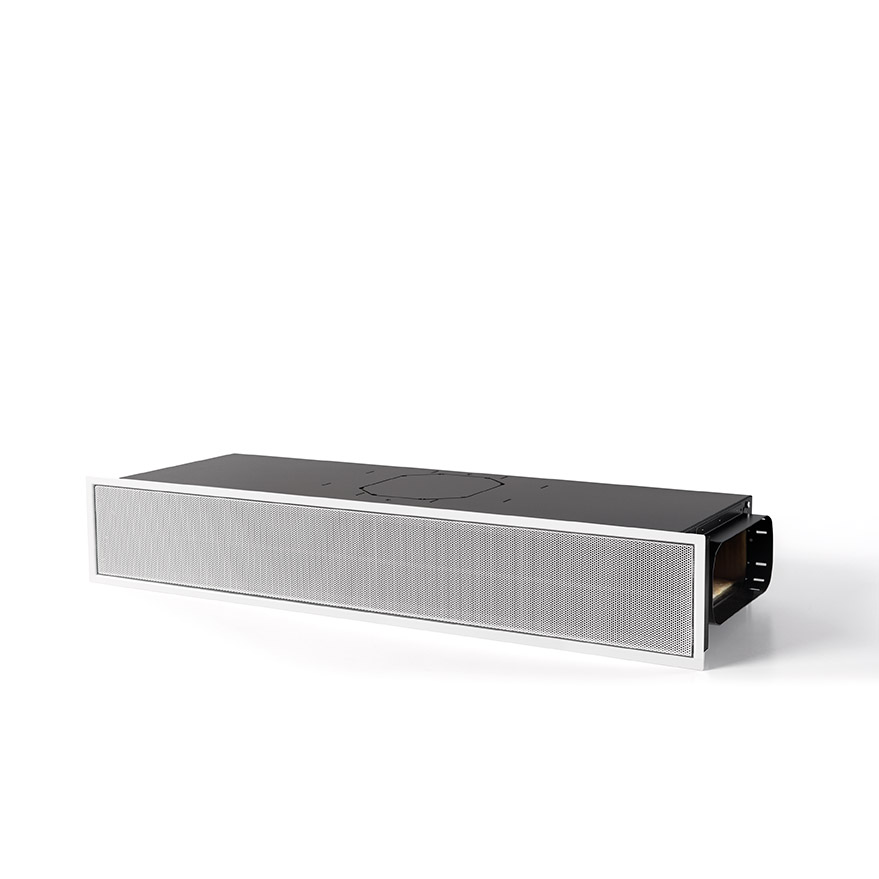

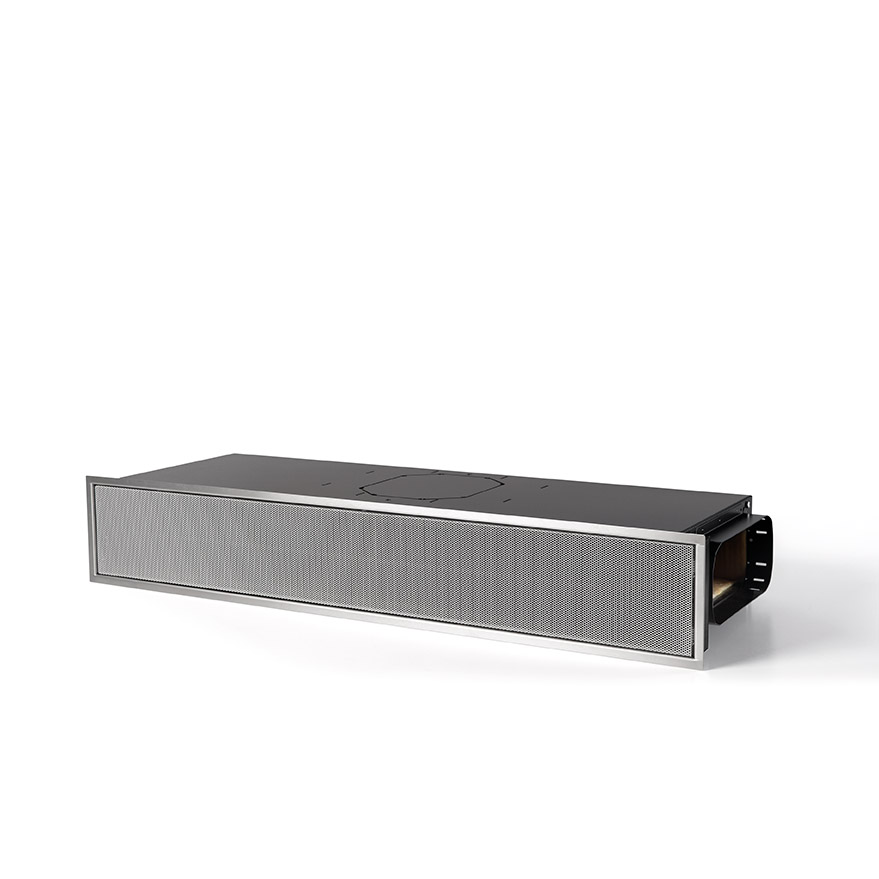

Association / Recirculation box
841400, 842400, 843400, 7931400, 7932400, 7933400
Association / Recirculation kit
850400
Association / Recirculation filter
830055, 7300055, 7900055

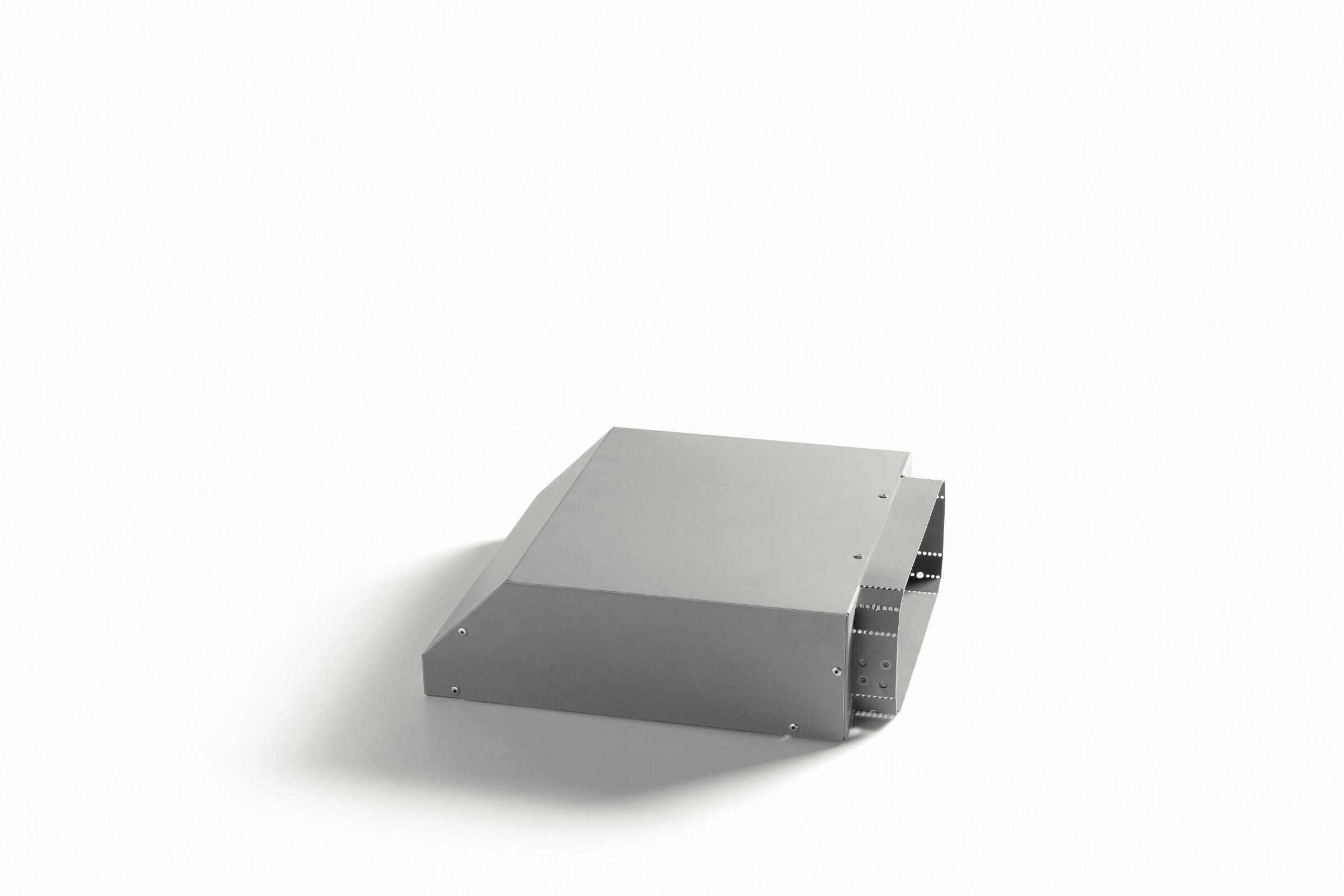

Association / Adapter for limited installation height
830053
