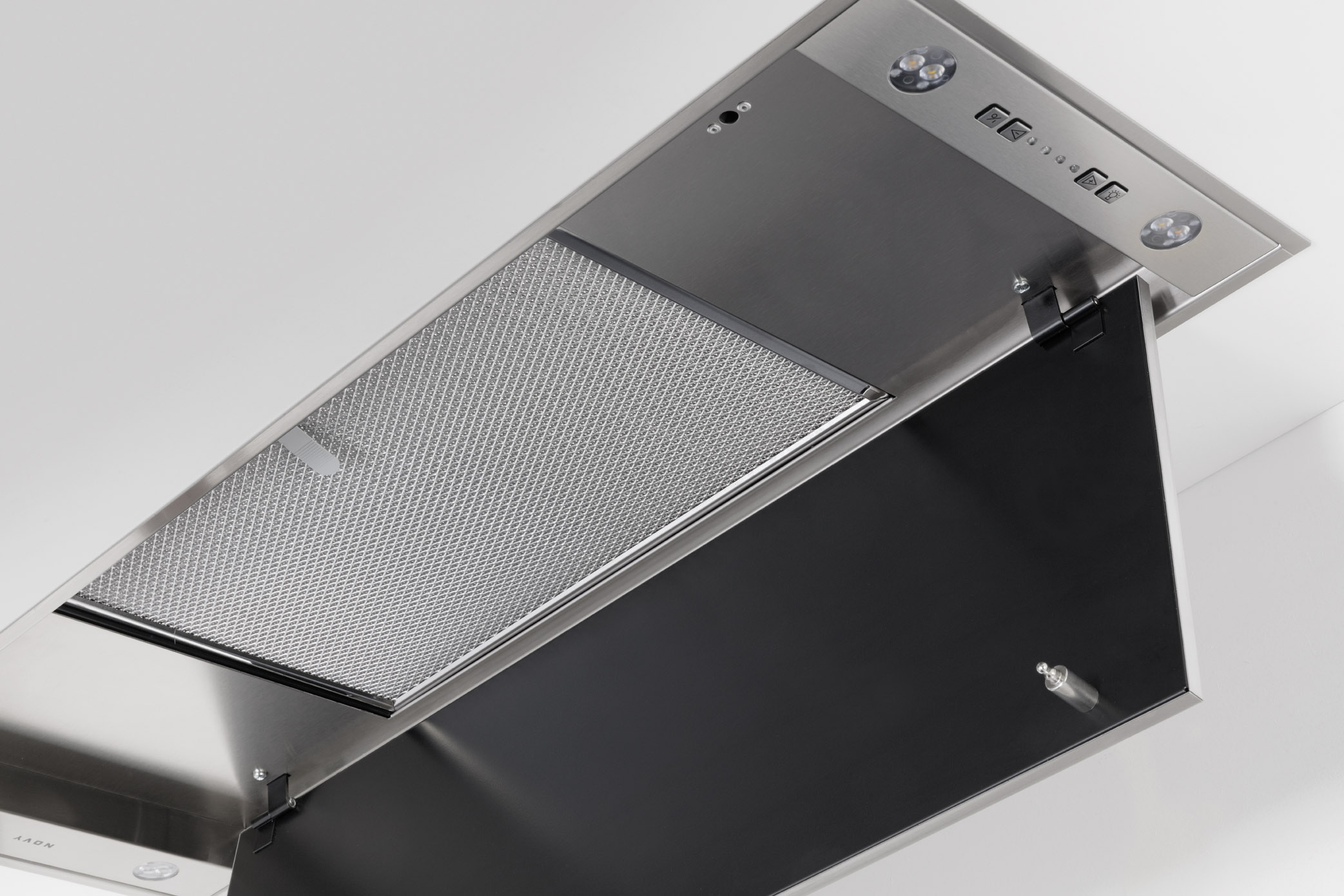

Built-in cooker hood Novy Mini Pureline 90 cm
Type number: 820-p2
820-p2 Built-in cooker hood Novy Mini Pureline 90 cm Stainless steel
- Integrated in a decorative chimney or alcove
- flexible installation of the Cubic motor for more placement options

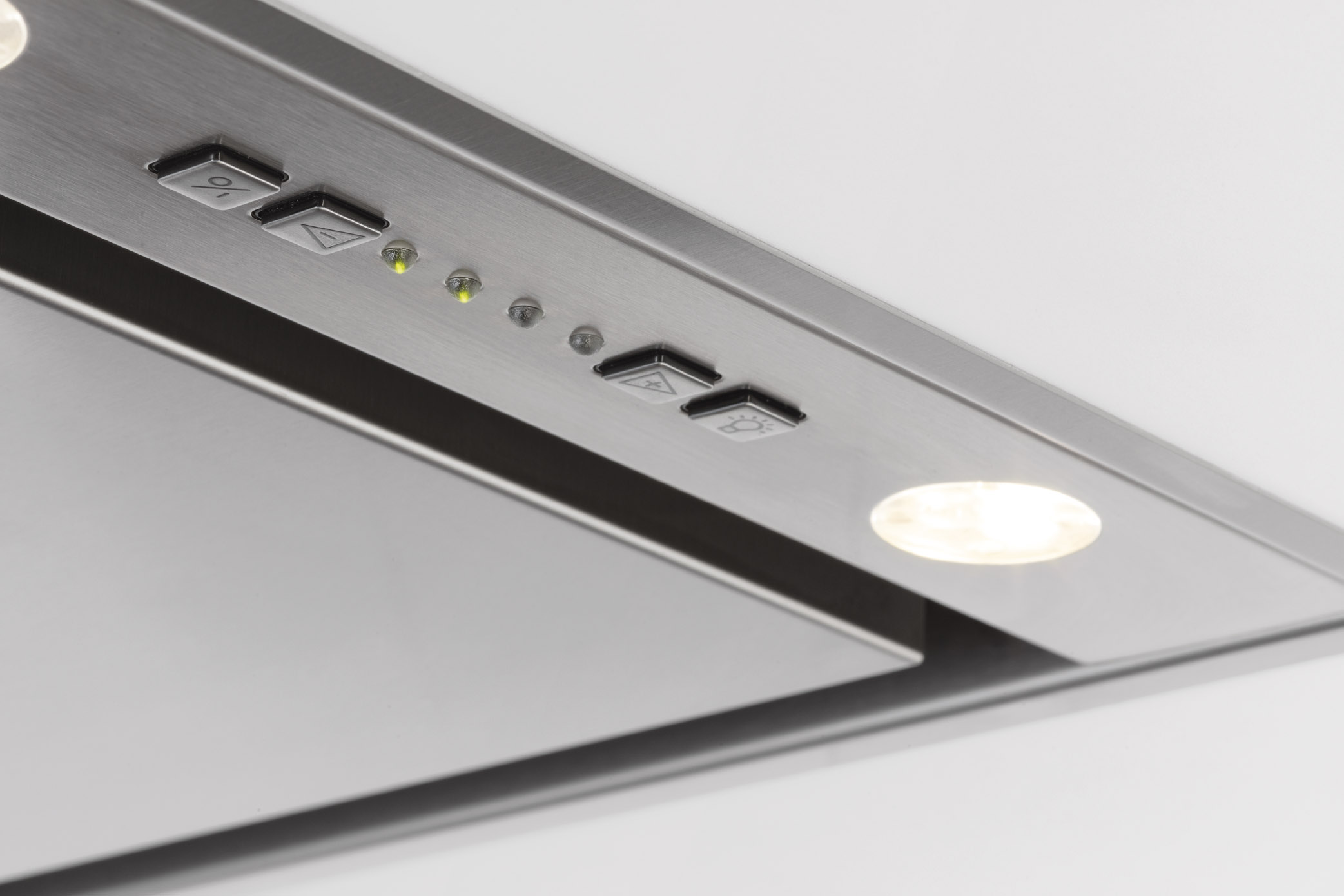

- integrated dimmable LED lighting
- LED lighting warm white (2700K) adjustable to neutral white (4000K)
Specifications
Weights & Dimensions
Product Depth
301 Millimetre
Produktbreite
860 Millimetre
Product Height
330 Millimetre
Product Weight (kg)
11.9 Kilogram
Product Dimensions (WxDxH) (mm)
860 x 301 x 330
Energy Specifications
Electrical Volts
220-240V
Electrical Total Wattage
121 Watt
Fuse (A)
10
Length power supply cable
1.3 Metre
Electrical frequency
50-60 Hertz
Electrical Connection (Plug) Type
Plug typ I
Installation Details
Diameter duct
150 Millimetre
Max mounting height gas hobs
850 Millimetre
Min mounting height gas hobs
650 Millimetre
Max mounting height ceramic hobs
850 Millimetre
Min mounting height ceramic hobs
600 Millimetre
Max mounting height induction hobs
850 Millimetre
Min mounting height induction hobs
650 Millimetre
Width flange (mm)
10
Position exhaust (to be delete)
Rechts Boven Links Achter Voor
Installation Type
Built-in appliance
Depth cut out opening (mm)
286
Width cut out opening (mm)
845
Dimensions cut-out opening (WxD) (mm)
845 x 286
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 850
Advised mounting height induction hobs (Hmin-Hmax) (mm)
650 - 850
Functions and Features
Auto stop
Yes
Sound absorber
Integrated
InTouch function
Standard
Number of Motors
1
Automatic Power revert (minutes)
6 Minute
Delayed switch off
Yes
Fan Motor Location
Integrated
Number of Fan Speeds
3 + power
Grease filter
7400020
Number of Grease Filters
1
Diameter outlet
150
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Control Type
Electronic
Recirculation
Optional
Control method
Remote control, Push buttons
Finishing
Stainless steel
Delayed Switch Off Minutes
10
Regulation, Compliance, Certifications
Airflow duct out speed 1 (m³/h)
237 Cubic meter per hour
Airflow duct out speed 2 (m³/h)
379 Cubic meter per hour
Airflow duct out speed 3 (m³/h)
451 Cubic meter per hour
Time increase factor (f)
0.70
Sound power duct out speed 1
37 dB(A)
Sound power duct out speed 2
48 dB(A)
Sound power duct out speed 3
52 dB(A)
Max pressure duct out speed 1
79 Pascal
Max pressure duct out speed 2
225 Pascal
Max pressure duct out speed 3
329 Pascal
Sound regulation
EN 60704-2-13
Sound pressure duct out speed 1
26 dB(A)
Sound pressure duct out speed 2
36 dB(A)
Sound pressure duct out speed 3
40 dB(A)
Nominal power of lighting system (WL)
11.5 Watt
Airflow duct out max powerspeed (m³/h) (Qboost)
601 Cubic meter per hour
Max pressure duct out at minimum speed
79 Pascal
Airflow duct out at min speed (m3/h) (Qmin)
237 Cubic meter per hour
Airflow at best efficiency point (QBEP) (m³/h)
343.2 Cubic meter per hour
Sound pressure duct out at minimum speed
26 dB(A)
Sound pressure duct out at max powerspeed
47 dB(A)
Sound power duct out at max continuous speed (dB(A))
52 dB(A)
Max pressure duct out at max continuous speed
329 Pascal
Airflow duct out at max continuous speed (Qmax)
451 Cubic meter per hour
Sound pressure duct out at max continuous speed
40 dB(A)
Average illumination of the lighting system on the cooking surface (Emiddle)
441 Lux
Annual Energy Consumption
33,8
Pressure (Pa) on the highest speed
372
Energy efficiency class (EEIhood)
A+
Lighting efficiency class (LEhood)
A
Lighting efficiency index (LEhood)
38,7
Fluid dynamic efficiency class (FDEhood)
A
Grease filtering efficiency class (GFEhood)
D
Additional Technical Specifications
Exterior Finish Color
Stainless steel
Cleaning products
906060, 906091, 906092, 906093
One-way valve
906271, 906432
Remote control
840029
Recirculation box
841400, 842400, 843400, 7931400, 7932400, 7933400
Recirculation kit
820400
Recirculation filter
830055, 7900055
