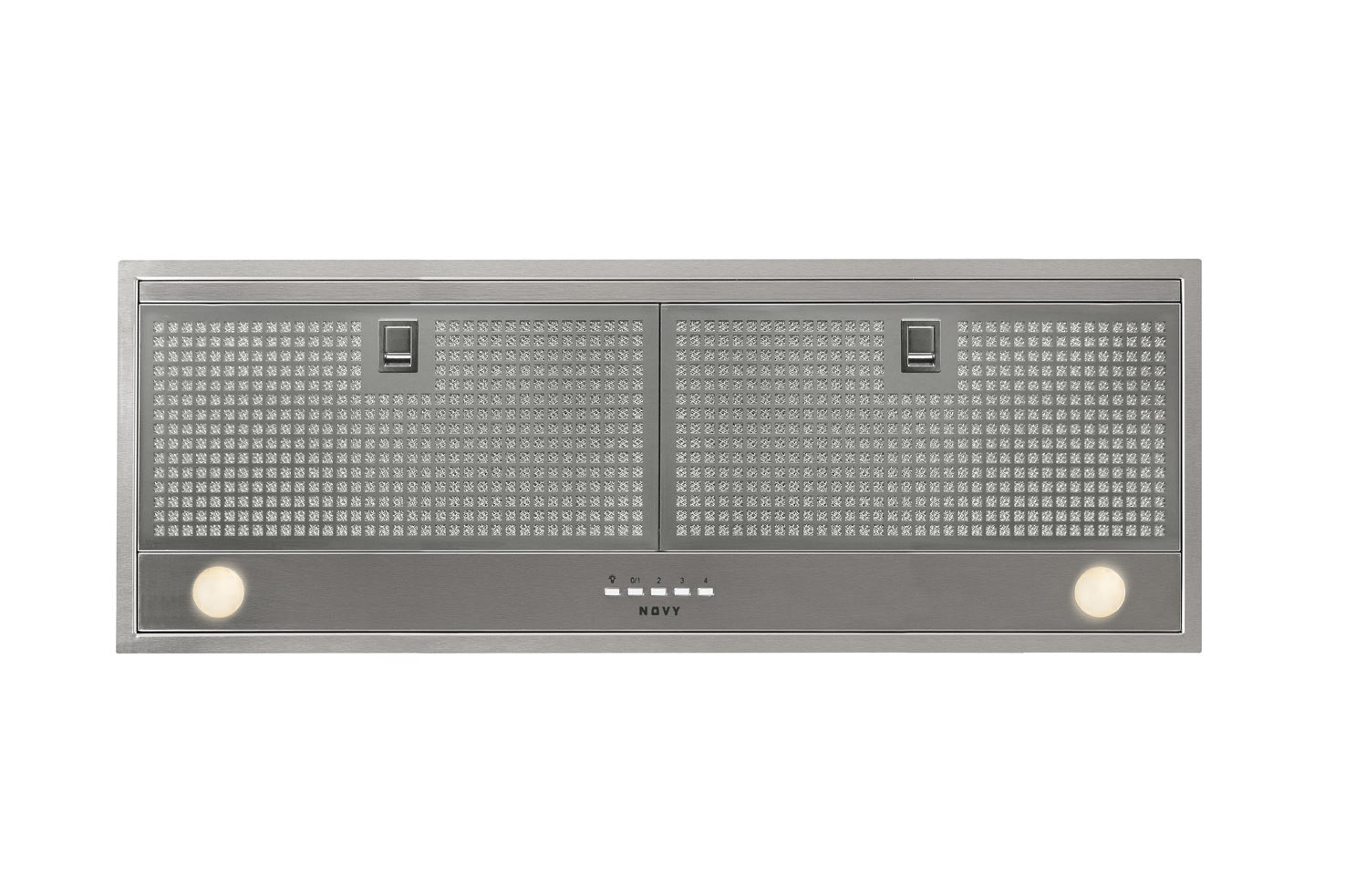

Novy Canopy Essence 829

Name: Novy Canopy Essence 829
Brand: Novy
Price: 669 EUR
Availability: InStock

Type number: 829

Comparer

See other versions of this product

Essence in all its simplicity

Essence 90 cm Stainless steel

Built-in units in stainless steel for a decorative chimney or canopy
convenience and easy control
sleek design filter for the optimum extraction of cooking vapours

Optional

Specifications

Energy label

Energy Efficiency class (EEIhood)

Annual Energy Consumption (kWh/year) (AEChood)

61,9

Lighting Efficiency class (LEhood)

Fluid Dynamic Efficiency class (FDEhood)

Grease Filtering Efficiency class (GFEhood)

Functions and features

Control method

Push buttons

Number of speeds

Motor

Integrated

Sound absorber

Without

Recirculation

Optional

InTouch function

Not applicable

Auto stop

Number of grease filters

Grease filter

829020

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Yes

Lighting

Ambient lighting type

Not Applicable

Functional light dimmable

Soft-ON/OFF

Number of functional lights

Total energy consumption functional light (W)

Color ambient light (K)

Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)

846 x 296 x 279

Width flange (mm)

Dimensions cut-out opening (WxD) (mm)

825 x 275

Advised mounting height induction hobs (Hmin-Hmax) (mm)

650 - 750

Min dimensions cabinet (WxDxH) (mm)

x 600 x

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

600 - 750

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 750

Diameter outlet (mm)

150

Position exhaust

Top

Airflow and noise level

Airflow duct out speed 1 (m³/h)

199

Airflow duct out speed 2 (m³/h)

299

Airflow duct out speed 3 (m³/h)

399

Sound pressure duct out speed 1 (dB(A))

Sound pressure duct out speed 2 (dB(A))

Sound pressure duct out speed 3 (dB(A))

Technical specifications

Maximum power (W)

168

Voltage appliance (V)

230

Frequency (Hz)

Length power supply cable (m)

Power consumption in stand-by-mode (Ps) (W)

0.35

Net weight (kg)

9,5

See all specifications

Manuals & downloads

Energy label Product File Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing

Associated accessories

829020 Grease Filter
Price € 104

906060 Novy Stainless steel cleaner
Price € 34

906401
Price € 49

906402 Connector
Price € 24

906403 Horizontal bend 90°
Price € 59

906404 Vertical bend 90°
Price € 49

906405 Angle adaptor round to rectangular
Price € 59

906406 Transfer rectangular to round
Price € 49

906407 Wall conduct with non-return valve
Price € 264

906418 Bend 15° for flat duct
Price € 19

906415
Price € 49

906416 Bend 90*
Price € 49

906417 Connector
Price € 14

906218 Flexible tube 10m
Price € 94

906287 Flexible silencer
Price € 59

906217 Flexible tube 3m
Price € 49

906301 Installation kit - Ø 150 mm
Price € 124

906432 Mechanical non-return valve - Ø 150mm
Price € 59

906291 Clamp Ø 150mm
Price € 14

906292 Aluminium tape
Price € 34

906178 Wall exhaust valve - Ø 150 mm
Price € 94

6200055 Carbon cartridges
Price € 79
