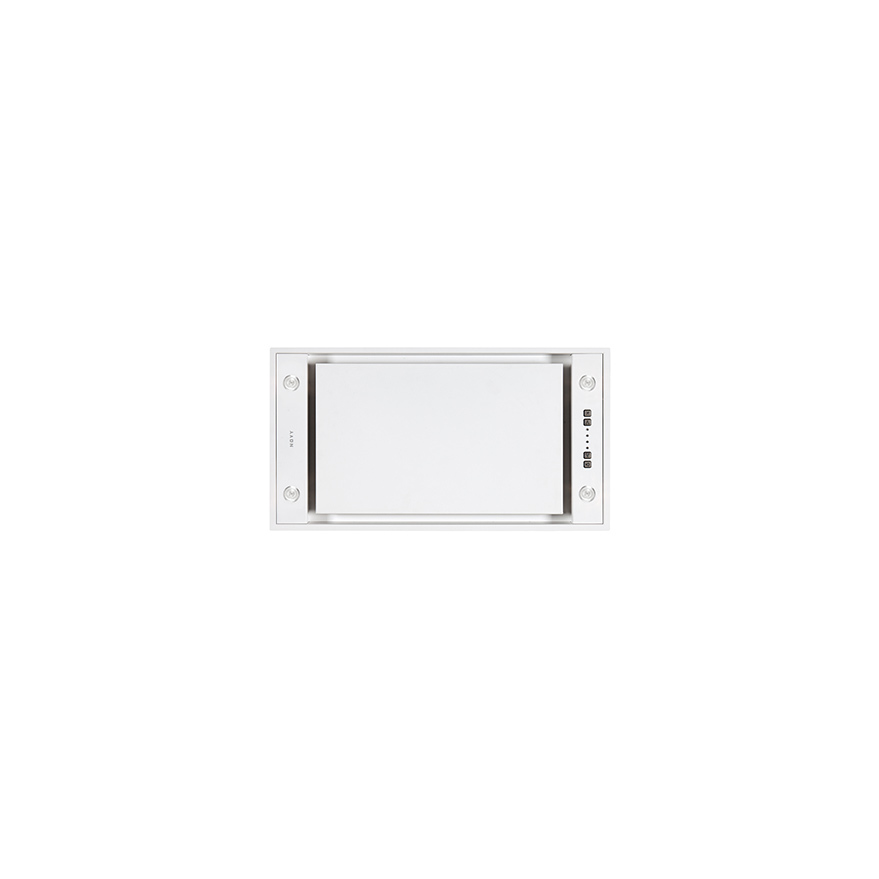

Novy Canopy Mini Pureline 811

Type number: 811

Timeless elegance

Mini Pureline 60 cm White

  • Integrated in a decorative chimney or alcove
  • flexible installation of the Cubic motor for more placement options
  • integrated dimmable LED lighting
  • LED lighting warm white (2700K) adjustable to neutral white (4000K)
ecosmart directe afvoer afstandsbediening intouch cubic_motor randafzuiging click_fix inbouwhoogte_75

Optional

recirculatie

Specifications

Energy label

Energy Efficiency class (EEIhood)
A
Annual Energy Consumption (kWh/year) (AEChood)
34,9
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
A
Grease Filtering Efficiency class (GFEhood)
C

Functions and features

Control method
Push buttons / Remote control
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Integrated
Sound absorber
Integrated
Recirculation
Optional
InTouch function
Standard
Auto stop
Yes
Delayed switch off (minutes)
10
Number of grease filters
1
Grease filter
609014
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes

Lighting

Functional lighting type
LED
Ambient lighting type
Not Applicable
Functional light dimmable
Yes
Soft-ON/OFF
Yes
Number of functional lights
4
Total energy consumption functional light (W)
8
Color functional light (K)
2700/4000
Color ambient light (K)
Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)
560 x 301 x 330
Width flange (mm)
10
Dimensions cut-out opening (WxD) (mm)
545 x 286
Advised mounting height induction hobs (Hmin-Hmax) (mm)
650 - 750
Min dimensions cabinet (WxDxH) (mm)
x 600 x
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 750
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 750
Diameter outlet (mm)
150
Position exhaust
Right / Top / Left / Back / Front

Airflow and noise level

Airflow duct out speed 1 (m³/h)
205
Airflow duct out speed 2 (m³/h)
333
Airflow duct out speed 3 (m³/h)
399
Airflow duct out max powerspeed (m³/h) (Qboost)
534
Sound pressure duct out speed 1 (dB(A))
26
Sound pressure duct out speed 2 (dB(A))
37
Sound pressure duct out speed 3 (dB(A))
42
Sound pressure duct out at max powerspeed (dB(A))
49

Technical specifications

Maximum power (W)
118
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1,3
Power consumption in stand-by-mode (Ps) (W)
0.25
Net weight (kg)
9,8

Associated accessories
