Ceiling unit Novy Pureline Pro 120 cm
Type number: 6941
.jpg?update_date=1788867955&rmode=crop&width=538&height=538&format=webp&quality=70)

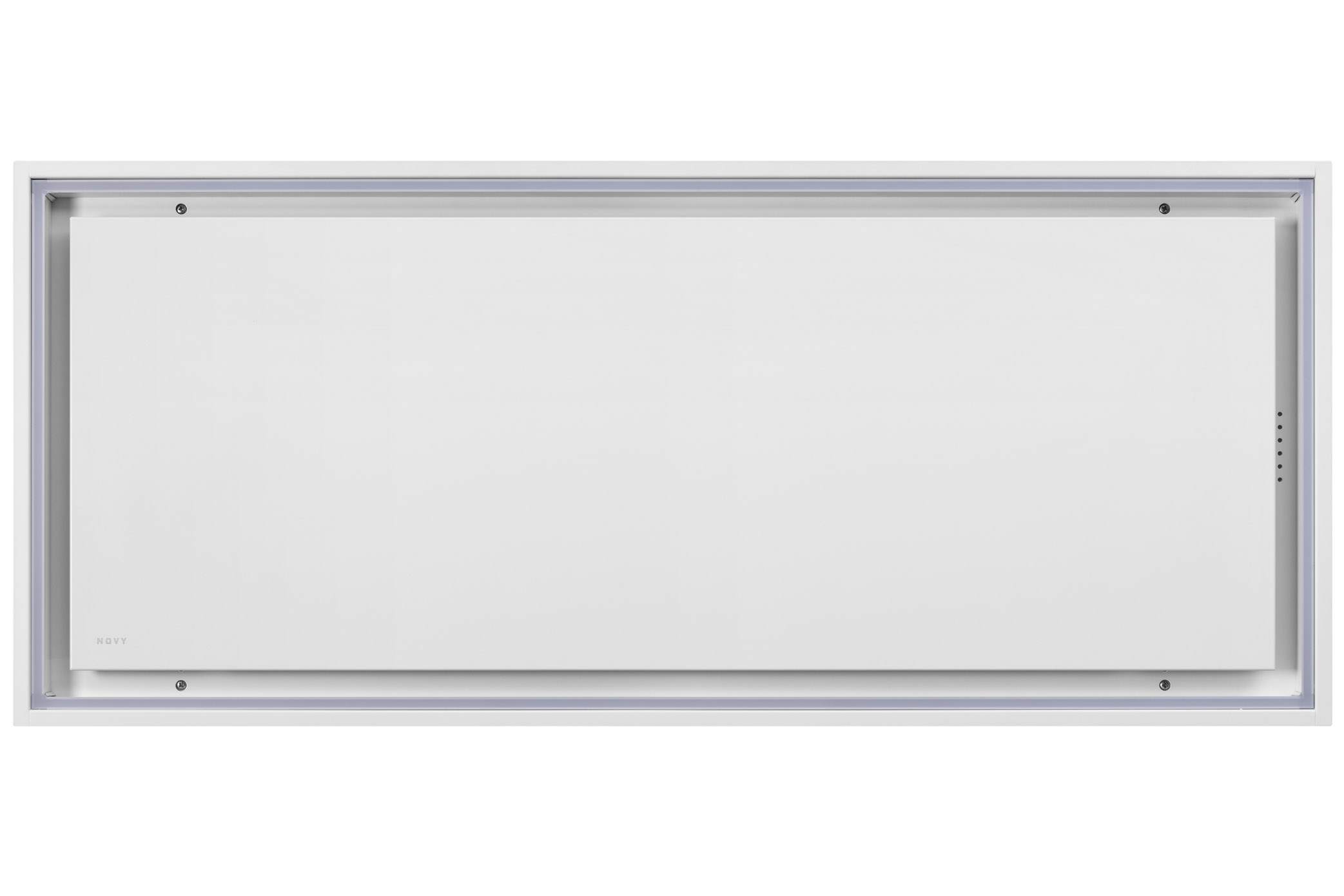

6941 Ceiling unit Novy Pureline Pro 120 cm White
- Maximum efficiency yet extremely quiet
- Adjustable light intensity and colour temperature from 2,700 K to 5,000 K

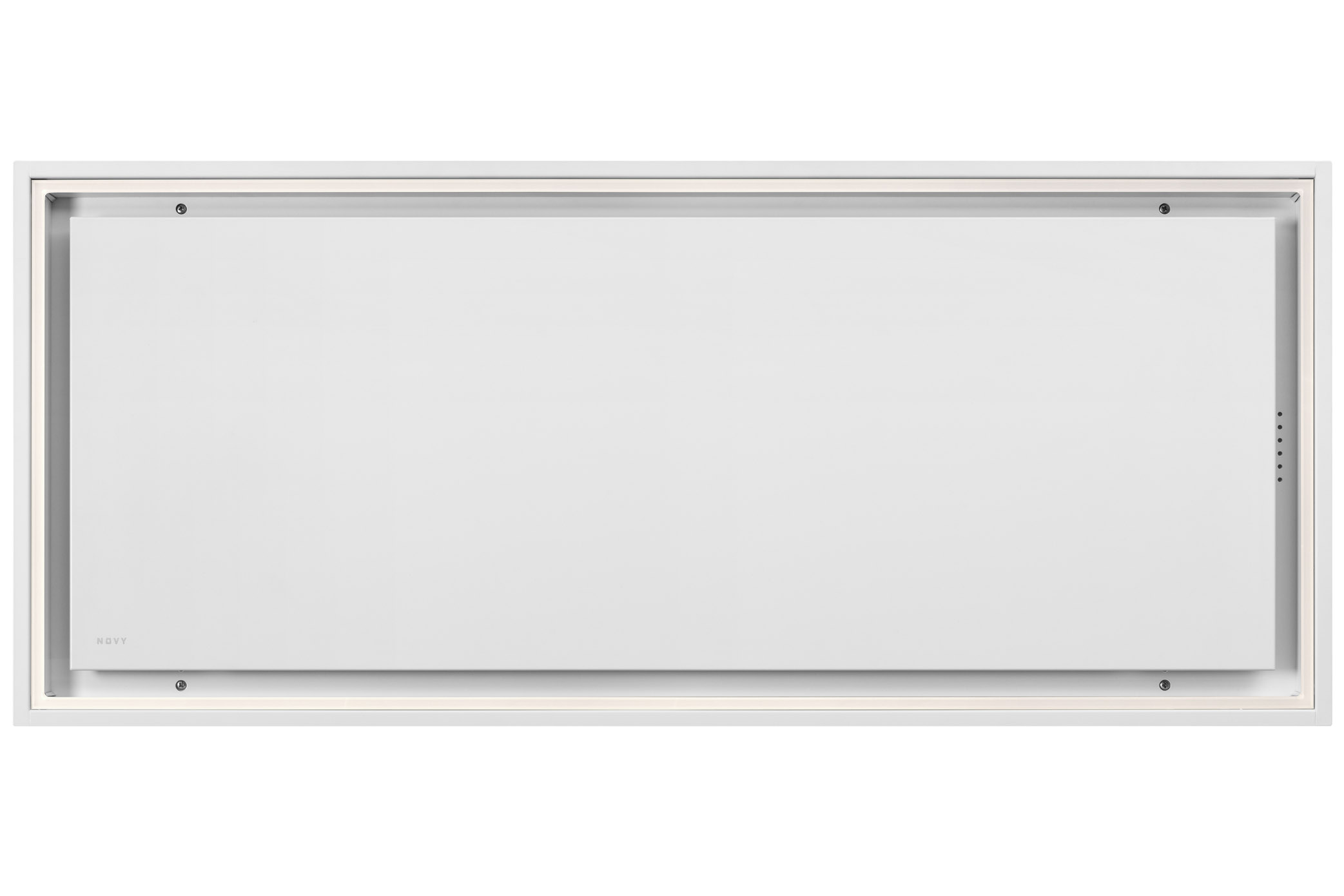

- Extensive lighting function: LED strip with cooking and ambient mode
- Cubic motor: Rotatable in all directions, removable for indoor installation (optional kit)
- Smart operation via remote control, InTouch or Novy Connect App
- Automatic speed control with Novy Sense sensor for detection of cooking vapours and odours (optional)
In optie
Specifications
Weights & Dimensions
Product Depth
508 Millimeter
Product Width
1168 Millimeter
Product Height
319 Millimeter
Product Weight
22.7 Kilogram
Width
120 cm
Product Dimensions (WxDxH) (mm)
1168 x 508 x 319
Height incl. mounting clamps (without motorbox)
133 Millimeter
Energy Specifications
Electrical Volts
220-240V
Electrical Connection (Plug) Type
Schuko
Electrical Total Wattage
193 Watt
Fuse (A)
10
Length power supply cable
1.2 Meter
Electrical Hertz (frequency)
50-60 Hertz
Electrical Connection Location
Top
Installation Details
Width flange (mm)
15
Position exhaust
Right / Left / Front / Rear / Top
Depth cut out opening (mm)
485
Width cut out opening (mm)
1145
Dimensions cut-out opening (WxD) (mm)
1145 x 485
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 1600
Max mounting height gas hobs
1600 Millimeter
Min mounting height gas hobs
650 Millimeter
Advised mounting height above ceramic hobs (Hmin-Hmax) (mm)
600 -1600
Advised mounting height induction hobs (Hmin-Hmax) (mm)
600 - 1600
Max mounting height ceramic hobs
1600 Millimeter
Min mounting height ceramic hobs
600 Millimeter
Max mounting height induction hobs
1600 Millimeter
Min mounting height induction hobs
600 Millimeter
Functions and Features
Auto stop
Control Type
Electronic
Novy Connect
Standard
Recirculation
Optional
Control method
Remote control
Remote Control
Sound absorber
Integrated
InTouch function
Standard
Number of Motors
1
Automatic Power revert (minutes)
6 Minute
Delayed switch off
Info display color
White
Fan Motor Location
Integrated
Automatic operation
Optional
Number of Fan Speeds
3 + power
Perimeter extraction
Exterior Finish Color
White
Association / Grease filter
6830020
Functioning mode
Duct out & recirculation
Finishing
Powder coating
External light connector
Not applicable
Number of Grease Filters
2
Diameter outlet
150
Delayed Switch Off Minutes
10
Grease filter cleaning indication
Recirculation filter cleaning indication
Regulation, Compliance, Certifications
Airflow duct out speed 1
262 Cubic meter per hour
Airflow duct out speed 2
466 Cubic meter per hour
Airflow duct out speed 3
617 Cubic meter per hour
Annual Energy Consumption (AEChood)
41,4
Time increase factor (f)
1.10
Sound power duct out speed 1
39 dBA
Sound power duct out speed 2
52 dBA
Sound power duct out speed 3
59 dBA
Max pressure duct out speed 1
98 Pascal
Max pressure duct out speed 2
343 Pascal
Max pressure duct out speed 3
391 Pascal
Sound regulation
DIN 45625-2
Sound pressure duct out speed 1
27 dBA
Sound pressure duct out speed 2
40 dBA
Sound pressure duct out speed 3
46 dBA
Nominal power of lighting system (WL)
21.2 Watt
Energy Efficiency class (EEIhood)
A
Airflow duct out max powerspeed (Qboost)
714 Cubic meter per hour
Max pressure duct out at minimum speed
98 Pascal
Lighting Efficiency class (LEhood)
C
Lighting efficiency index (LEhood)
18,6
Sound power duct out at minimum speed (LWAmin)
39 dBA
Airflow duct out at min speed (Qmin)
262 Cubic meter per hour
Airflow at best efficiency point (QBEP)
346.9 Cubic meter per hour
Sound pressure duct out at minimum speed
27 dBA
Fluid Dynamic Efficiency class (FDEhood)
A
Sound power duct out at max powerspeed (LWAboost)
62 dBA
Sound pressure duct out at max powerspeed
49 dBA
Sound power duct out at max continuous speed (LWAmax)
59 dBA
Grease Filtering Efficiency class (GFEhood)
D
Max pressure duct out at max continuous speed
391 Pascal
Airflow duct out at max continuous speed (Qmax)
617 Cubic meter per hour
Sound pressure duct out at max continuous speed
46 dBA
Average illumination of the lighting system on the cooking surface (Emiddle)
395 LUX
Additional Technical Specifications
Association / Cleaning
906060, 906091, 906092, 906093
Main on/off switch
Association / Window switch
990036
Free airflow
975 Cubic meter per hour
Association / Remote control
840029
Assocation / Extension cable
7000094
Association / Dissociated motor
800991
Association / Recirculation box
841400, 842400, 843400, 7931400, 7932400, 7933400
Association / Recirculation filter
830055, 7900055
Association / Novy Sense sensor kit
6930060
Association / Adapter for limited installation height
6930050
