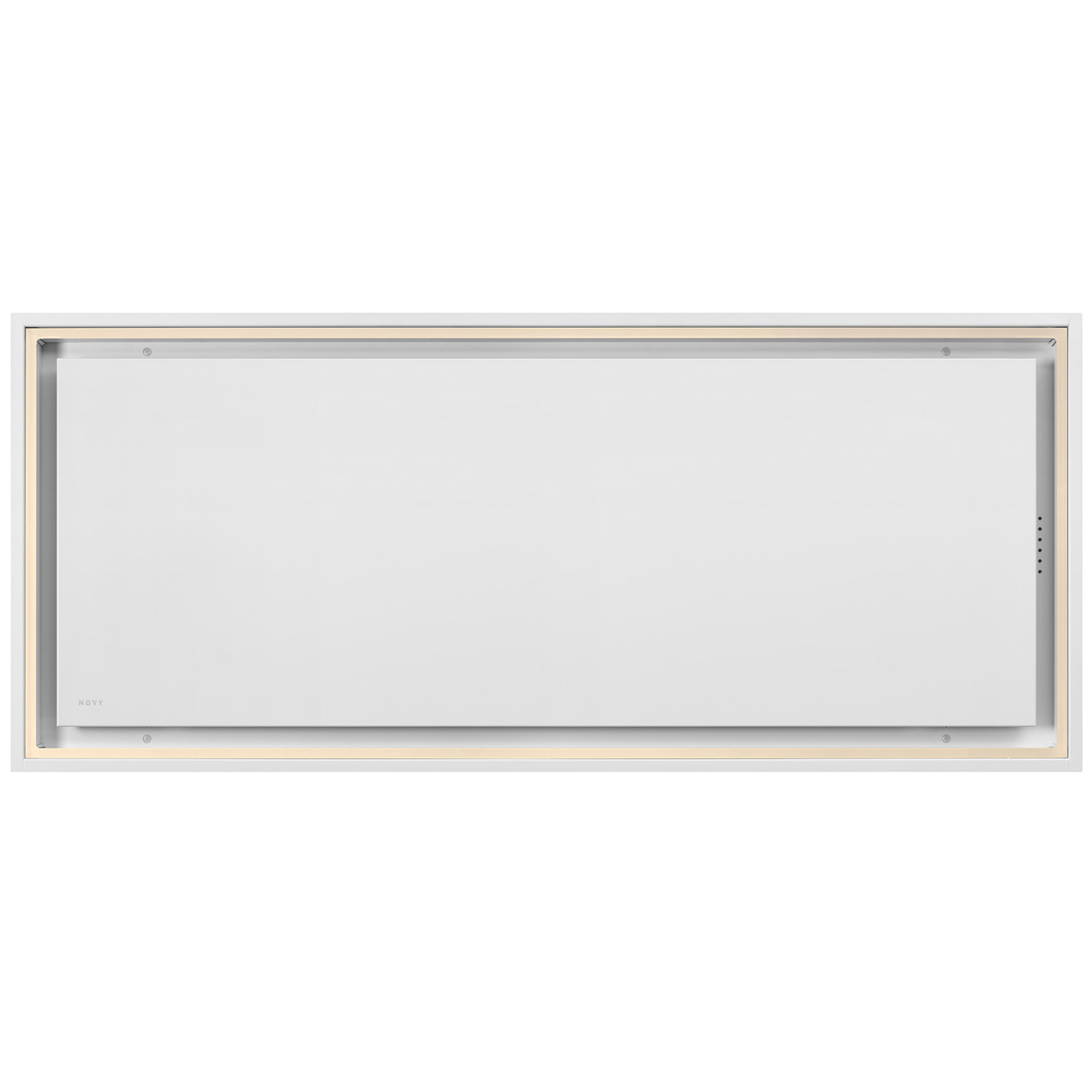

Novy Ceiling unit Novy Pureline Pro Compact 6921

Type number: 6921

Enlarge

See other versions of this product

Novy Pureline Pro Compact 120 cm White

A built-in height of only 19.5 cm thanks to a compact motor
Flexible installation possibilities due to rotating motor in several directions (left, right, front or rear)
Maximum efficiency yet extremely quiet
LED lighting warm white (2,700 K) adjustable to neutral white (5,000 K)
Ultra slim led strip with extensive lighting function for the right amount of light and atmosphere during and after cooking (cooking mode and ambient mode)
Automatic speed control with the Novy Sense sensor for detection of cooking vapours and odour
Operation and settings possible via smartphone or tablet, as well as via remote control or InTouch

Add to my selection

Specifications

Energy label

Energy Efficiency class (EEIhood)

Annual Energy Consumption (kWh/year) (AEChood)

69,5

Lighting Efficiency class (LEhood)

Fluid Dynamic Efficiency class (FDEhood)

Grease Filtering Efficiency class (GFEhood)

Functions and features

Control method

Remote control

Number of speeds

3 + power

Automatic Power revert (minutes)

Motor

Integrated

Sound absorber

Integrated

Recirculation

Optional

InTouch function

Standard

Auto stop

Yes

Delayed switch off (minutes)

Number of grease filters

Grease filter

6830020

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Yes

Lighting

Functional lighting type

Led strip

Ambient lighting type

Led strip

Functional light dimmable

Yes

Soft-ON/OFF

Yes

Total energy consumption functional light (W)

Total energy consumption ambient light (W)

Color functional light (K)

2700-5000

Color ambient light (K)

2700-5000

External light connector

Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)

1168 x 508 x 195

Height incl. mounting clamps (without motorbox) (mm)

133

Width flange (mm)

Dimensions cut-out opening (WxD) (mm)

1145 x 485

Advised mounting height induction hobs (Hmin-Hmax) (mm)

600 - 1600

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

600 - 1600

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 1600

Diameter outlet (mm)

222x89

Position exhaust

Right / Left / Front / Back

Airflow and noise level

Airflow duct out speed 1 (m³/h) / Max pressure duct out speed 1 (Pa)

251 / 50

Airflow duct out speed 2 (m³/h) / Max pressure duct out speed 2 (Pa)

468 / 187

Airflow duct out speed 3 (m³/h) / Max pressure duct out speed 3 (Pa)

548 / 267

Airflow duct out max powerspeed (m³/h) (Qboost) / Max pressure duct out max powerspeed (Pa)

619 / 506

Sound pressure duct out speed 1 (dB(A)) / Sound power duct out speed 1 (dB(A))

28 / 41

Sound pressure duct out speed 2 (dB(A)) / Sound power duct out speed 2 (dB(A))

45 / 57

Sound pressure duct out speed 3 (dB(A)) / Sound power duct out speed 3 (dB(A))

50 / 62

Sound pressure duct out at max powerspeed (dB(A)) / Sound power duct out at max powerspeed (dB(A)) (LWAboost)

51 / 63

Technical specifications

Maximum power (W)

184

Voltage cooker hood (V)

230

Frequency (Hz)

Length power supply cable (m)

1,2

Power consumption in stand-by-mode (Ps) (W)

0.48

Net weight (kg)

22,7

See all specifications

Manuals & downloads

Energy label Product File Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing

Associated accessories

6830020 Grease Filter Novy Pureline

841400 recirculation box with monoblock white (270x500mm)

842400 recirculation box with monoblock black (270x500mm)

843400 recirculation box with monoblock grey (270x500mm)

7931400 Recirculation box white with monoblock, H140 mm

7932400 Recirculation box black with monoblock, H140 mm

7933400 Recirculation box grey with monoblock, H140 mm

830055 Replacement monoblock filter (410x200x30mm)

7900055 Monoblock filter (390x117x30mm)

906425 Wall conduct kit

906408 Flexible retangular hose length 750 mm

906401 Rectangular duct 89×222×1000 mm

906402 Connector

906403 horizontal 90

906404 Vertical bend with air deflectors

906405 Corner adapter

906406 Connector rectangular round

906407 Wall conduct with non-return valve

906418 Connector rectangular

990036 Input/Output module

840029 Remote control

906060 Inox Cleaner
