Novy Ceiling unit Pureline Pro 6942

Type number: 6942

Enlarge

See other versions of this product

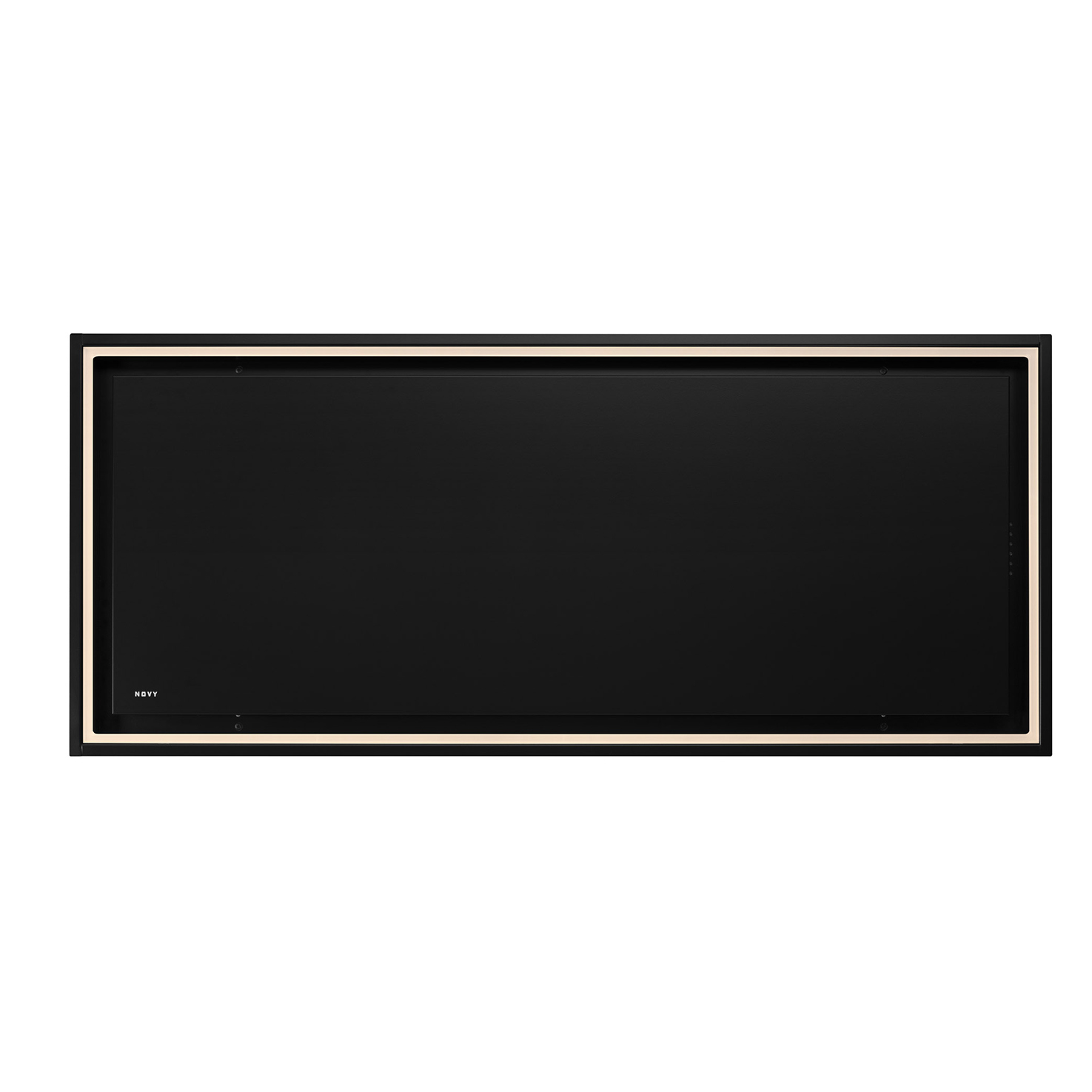

Pureline Pro 120 cm Black

Flexible installation thanks to Cubic motor which can be rotated in all directions and with optional kit for remote indoor installation
Maximum efficiency yet extremely quiet
LED lighting warm white (2,700 K) adjustable to neutral white (5,000 K)
Ultra slim led strip with extensive lighting function for the right amount of light and atmosphere during and after cooking (cooking mode and ambient mode)
Automatic speed control with the Novy Sense sensor for detection of cooking vapours and odour
Operation and settings possible via smartphone or tablet, as well as via remote control or InTouch

Add to my selection

Specifications

Energy label

Energy Efficiency class (EEIhood)

Annual Energy Consumption (kWh/year) (AEChood)

41,4

Lighting Efficiency class (LEhood)

Fluid Dynamic Efficiency class (FDEhood)

Grease Filtering Efficiency class (GFEhood)

Functions and features

Control method

Remote control

Number of speeds

3 + power

Automatic Power revert (minutes)

Motor

Integrated

Sound absorber

Integrated

Recirculation

Optional

InTouch function

Standard

Auto stop

Yes

Delayed switch off (minutes)

Number of grease filters

Grease filter

6830020

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Yes

Lighting

Functional lighting type

Led strip

Ambient lighting type

Led strip

Functional light dimmable

Yes

Soft-ON/OFF

Yes

Total energy consumption functional light (W)

Total energy consumption ambient light (W)

Color functional light (K)

2700-5000

Color ambient light (K)

2700-5000

External light connector

Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)

1168 x 508 x 319

Height incl. mounting clamps (without motorbox) (mm)

133

Width flange (mm)

Dimensions cut-out opening (WxD) (mm)

1145 x 485

Advised mounting height induction hobs (Hmin-Hmax) (mm)

600 - 1600

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

600 - 1600

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 1600

Diameter outlet (mm)

150

Position exhaust

Right / Left / Front / Back / Top

Airflow and noise level

Airflow duct out speed 1 (m³/h) / Max pressure duct out speed 1 (Pa)

262 / 98

Airflow duct out speed 2 (m³/h) / Max pressure duct out speed 2 (Pa)

466 / 343

Airflow duct out speed 3 (m³/h) / Max pressure duct out speed 3 (Pa)

617 / 391

Airflow duct out max powerspeed (m³/h) (Qboost) / Max pressure duct out max powerspeed (Pa)

714 / 391

Sound pressure duct out speed 1 (dB(A)) / Sound power duct out speed 1 (dB(A))

27 / 39

Sound pressure duct out speed 2 (dB(A)) / Sound power duct out speed 2 (dB(A))

40 / 52

Sound pressure duct out speed 3 (dB(A)) / Sound power duct out speed 3 (dB(A))

46 / 59

Sound pressure duct out at max powerspeed (dB(A)) / Sound power duct out at max powerspeed (dB(A)) (LWAboost)

49 / 62

Technical specifications

Maximum power (W)

193

Voltage cooker hood (V)

230

Frequency (Hz)

Length power supply cable (m)

1,2

Power consumption in stand-by-mode (Ps) (W)

0,48

Net weight (kg)

22,7

See all specifications

Manuals & downloads

Energy label Product File Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing

Associated accessories

6830020 Grease Filter Novy Pureline

841400 recirculation box with monoblock white (270x500mm)

842400 recirculation box with monoblock black (270x500mm)

843400 recirculation box with monoblock grey (270x500mm)

7931400 Recirculation box white with monoblock, H140 mm

7932400 Recirculation box black with monoblock, H140 mm

7933400 Recirculation box grey with monoblock, H140 mm

830055 Replacement monoblock filter (410x200x30mm)

7900055 Monoblock filter (390x117x30mm)

906420 Wall conduct kit

906415 Round tube, diameter 150 mm length 1 m

906417 Connector

906416 connector round

906218 Aluminium tubing

906217 Aluminium tubing

906301 Installation kit

800997 Kit to place motor at distance Pureline with cubic motor ≥V19; Pureline Pro with cubic motor ≥V02

6930050 Adapter for limited installation height 17,3 cm

7000094 Extension cable 5 m

990036 Input/Output module

840029 Remote control

906060 Inox Cleaner
