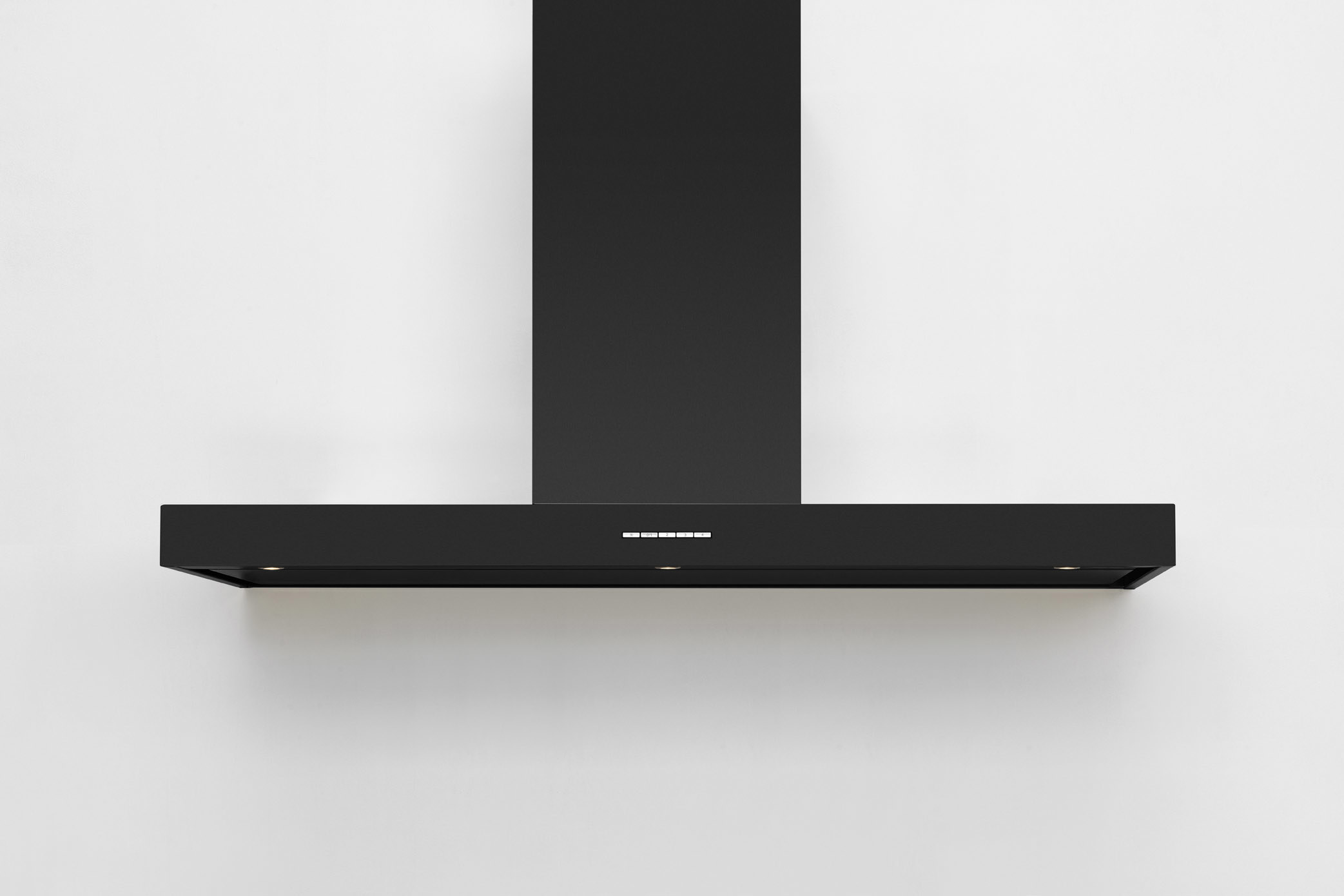

Novy Wall mounted Salsa 6512

Type number: 6512

Enlarge

See other versions of this product

High quality simplicity and a slim design

Salsa 90 cm Black

Slim design
high quality simplicity
easy and simple control
reversible chimney for recirculation

Optional

Add to my selection

Specifications

Energy label

Energy Efficiency class (EEIhood)

Annual Energy Consumption (kWh/year) (AEChood)

49,6

Lighting Efficiency class (LEhood)

Fluid Dynamic Efficiency class (FDEhood)

Grease Filtering Efficiency class (GFEhood)

Functions and features

Control method

Push buttons

Number of speeds

Automatic Power revert (minutes)

Motor

Integrated

Sound absorber

Without

Recirculation

Optional

InTouch function

Not applicable

Auto stop

Delayed switch off (minutes)

5,10,15,20

Number of grease filters

Grease filter

6200020

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Yes

Lighting

Functional lighting type

Led

Ambient lighting type

Not Applicable

Dimmable light

Soft-ON/OFF

Number of functional lights

Total energy consumption functional light (W)

Color functional light

3000

Color ambient light

Not Applicable

Dimensions

Advised mounting height induction hobs (Hmin-Hmax) (mm)

650 - 750

Product dimensions exhaust (WxDxHmin-Hmax) (mm)

898 x 520 x 710 - 1140

Product dimensions recirculation (WxDxHmin-Hmax) (mm)

898 x 520 x 765 - 1205

Max height optional chimney exhaust (mm)

1460

Max height optional chimney recirculation (mm)

1525

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

600 - 750

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 750

Diameter outlet (mm)

150

Position exhaust

Top

Airflow and noise level

Airflow duct out speed 1 (m³/h) / Max pressure duct out speed 1 (Pa)

248 / 413

Airflow duct out speed 2 (m³/h) / Max pressure duct out speed 2 (Pa)

329 / 466

Airflow duct out speed 3 (m³/h) / Max pressure duct out speed 3 (Pa)

423 / 505

Airflow duct out max powerspeed (m³/h) (Qboost) / Max pressure duct out max powerspeed (Pa)

640 / 544

Sound pressure duct out speed 1 (dB(A)) / Sound power duct out speed 1 (dB(A))

33 / 45

Sound pressure duct out speed 2 (dB(A)) / Sound power duct out speed 2 (dB(A))

38 / 51

Sound pressure duct out speed 3 (dB(A)) / Sound power duct out speed 3 (dB(A))

44 / 57

Sound pressure duct out at max powerspeed (dB(A)) / Sound power duct out at max powerspeed (dB(A)) (LWAboost)

54 / 66

Technical specifications

Maximum power (W)

241

Voltage cooker hood (V)

220-230

Frequency (Hz)

50-60

Length power supply cord (m)

1,3

Power consumption in off-mode (Po) (W)

Power consumption in stand-by-mode (Ps) (W)

0.24

Net weight (kg)

25,1

See all specifications

Manuals & downloads

Energy label Product File Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing

Associated accessories

6200020 Grease Filter

6200055 Replacement rec. filter for 650, 655, 828, 829 & Salsa

6200400 Recirculation set for Salsa wall mounted

906401 Rectangular duct 89×222×1000 mm

906402 Connector

906403 horizontal 90

906404 Vertical bend with air deflectors

906405 Corner adapter

906406 Connector rectangular round

906407 Wall conduct with non-return valve

906418 Connector rectangular

906415 Round tube, diameter 150 mm length 1 m

906416 connector round

906417 Connector

906218 Aluminium tubing

906287 Flexible silencer

906217 Aluminium tubing

906432 Non-return valve

906291 clamp

906292 Aluminium tape

906178 Aluminium wall vent

6200100 Chimney extension 86,5cm

150200 Backsplash panel 90 cm stainless steel height 69 cm

150275 Backsplash panel 90 cm stainless steel h 75 cm
