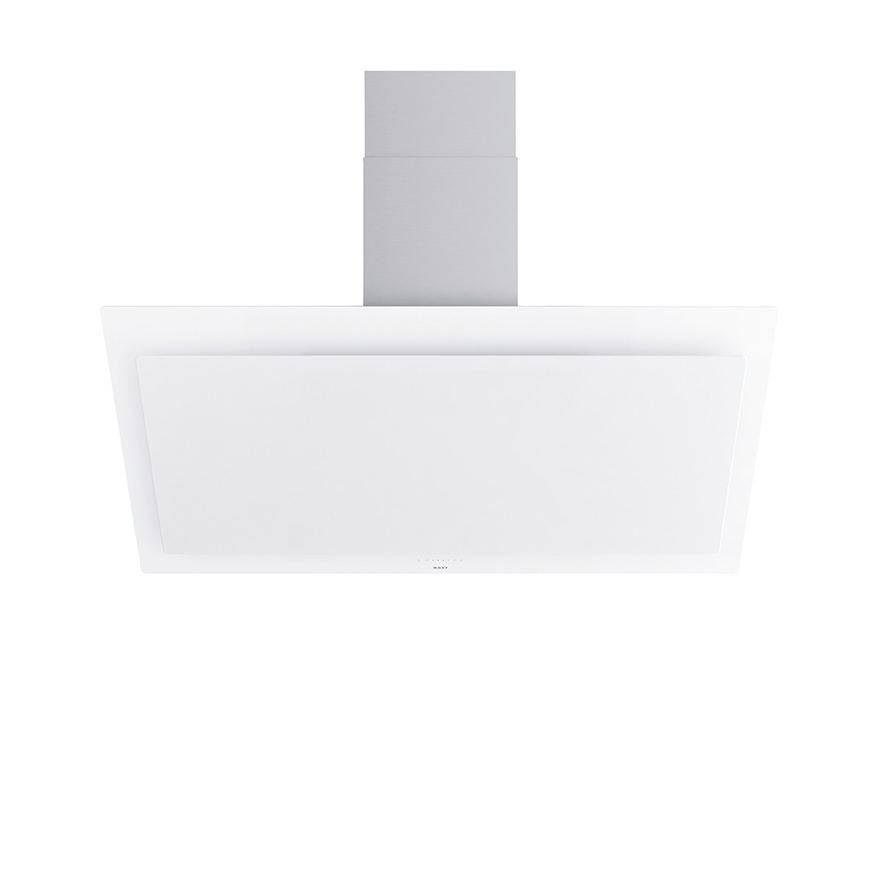

Novy Wall mounted Vision 7841

Type number: 7841

Just that little bit more in terms of design

Vision 120 cm White

  • modern, clean look
  • option to install without a chimney with an outlet at the back
  • subtle LED lighting (2700K)

Optional

remote control

Specifications

Energy label

Energy Efficiency class (EEIhood)
A+
Annual Energy Consumption (kWh/year) (AEChood)
49,3
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
A
Grease Filtering Efficiency class (GFEhood)
C

Functions and features

Control method
Touch control
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Integrated
Sound absorber
Integrated
Recirculation
Not applicable
InTouch function
Optional
Auto stop
Yes
Delayed switch off (minutes)
10
Number of grease filters
2
Grease filter
7830020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
No

Lighting

Functional lighting type
Led
Dimmable light
No
Soft-ON/OFF
No
Number of functional lights
2
Total energy consumption functional light (W)
4
Color functional light
2700

Dimensions

Advised mounting height induction hobs (Hmin-Hmax) (mm)
500 - 750
Product dimensions exhaust (WxDxHmin-Hmax) (mm)
1198 x 429 x 830 - 1100
Product dimensions recirculation (WxDxHmin-Hmax) (mm)
1198 x 429 x - 1390
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
500 - 750
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 750
Position exhaust
Top / Back

Airflow and noise level

Airflow duct out speed 1 (m³/h) / Max pressure duct out speed 1 (Pa)
239 / 321
Airflow duct out speed 2 (m³/h) / Max pressure duct out speed 2 (Pa)
318 / 501
Airflow duct out speed 3 (m³/h) / Max pressure duct out speed 3 (Pa)
483 / 558
Airflow duct out max powerspeed (m³/h) (Qboost) / Max pressure duct out max powerspeed (Pa)
784 / 589
Sound pressure duct out speed 1 (dB(A)) / Sound power duct out speed 1 (dB(A))
25 / 35
Sound pressure duct out speed 2 (dB(A)) / Sound power duct out speed 2 (dB(A))
32 / 42
Sound pressure duct out speed 3 (dB(A)) / Sound power duct out speed 3 (dB(A))
41 / 52
Sound pressure duct out at max powerspeed (dB(A)) / Sound power duct out at max powerspeed (dB(A)) (LWAboost)
51 / 62

Technical specifications

Maximum power (W)
325
Voltage (V)
220-230
Frequency (Hz)
50
Length power supply cord (m)
1,3
Power consumption in stand-by-mode (Ps) (W)
0.29
Net weight (kg)
38
