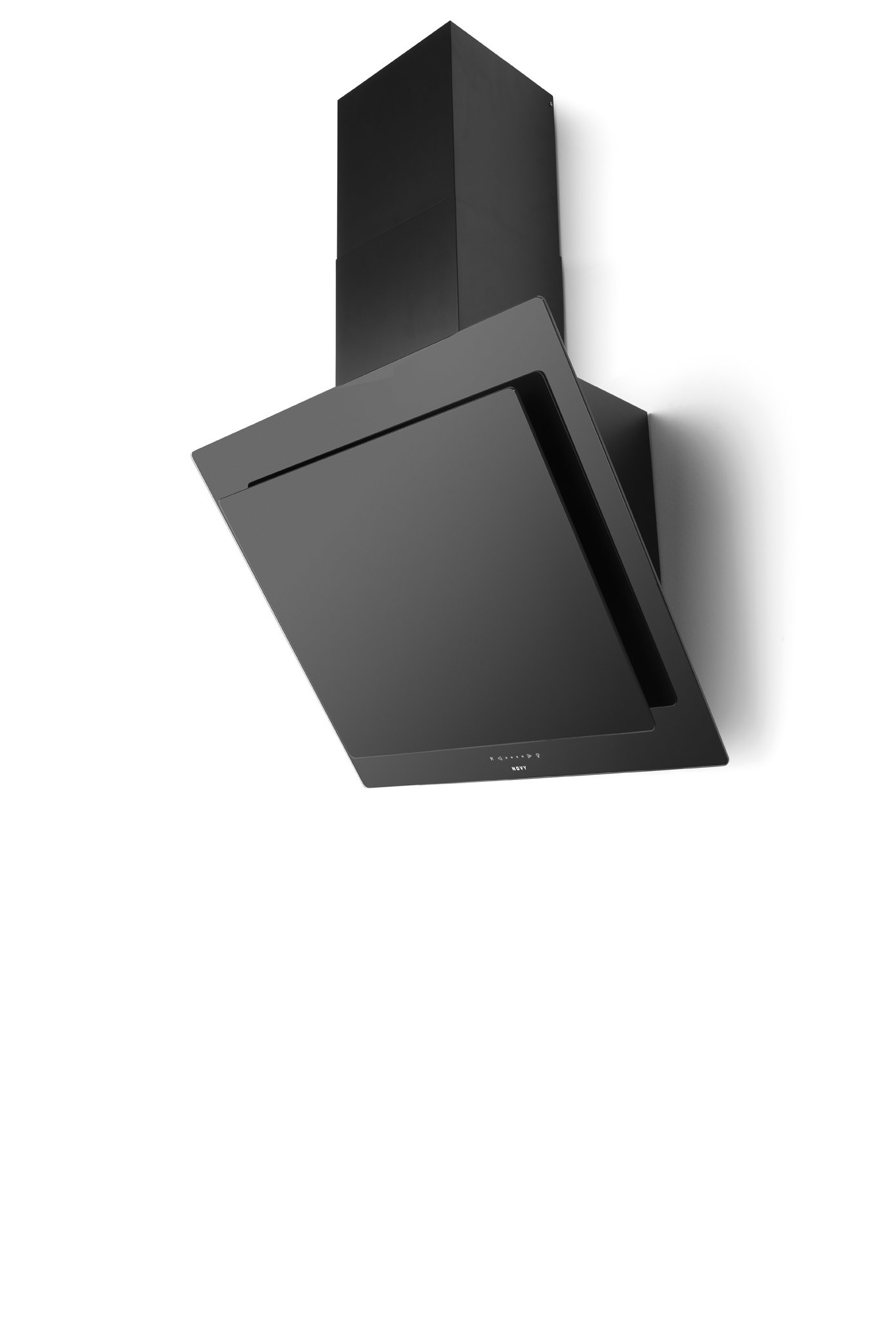

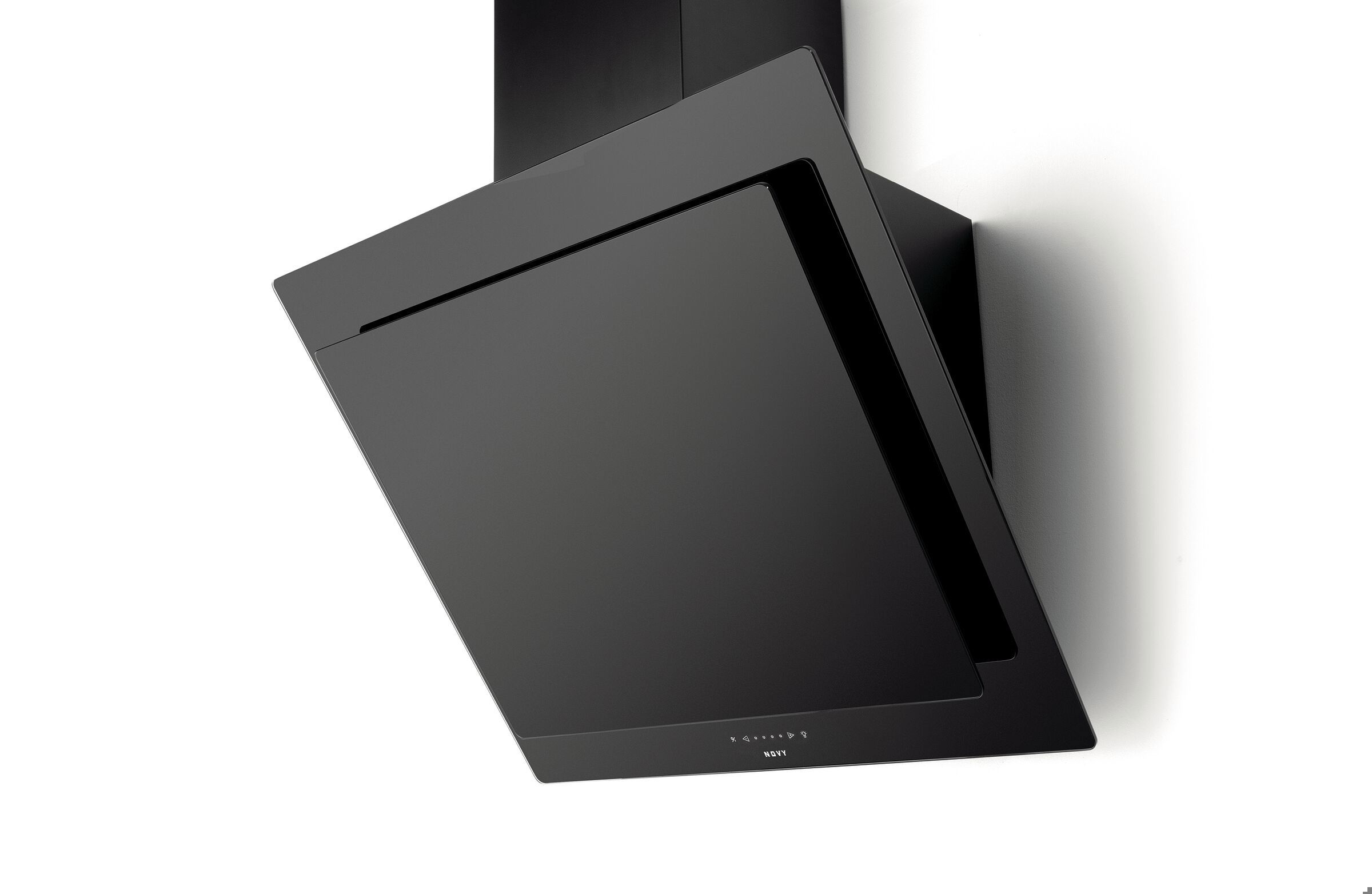

Novy Wall mounted Vision 7853

Name: Novy Wall mounted Vision 7853
Brand: Novy
Price: 1444 EUR
Availability: InStock

Type number: 7853

Comparer

See other versions of this product

Just that little bit more in terms of design

Vision 75 cm Black

modern, clean look
black & black glass
option to install without a chimney with an outlet at the back
subtle LED lighting (2700K)

Optional

Specifications

Energy label

Energy Efficiency class (EEIhood)

A+

Annual Energy Consumption (kWh/year) (AEChood)

46,2

Lighting Efficiency class (LEhood)

Fluid Dynamic Efficiency class (FDEhood)

Grease Filtering Efficiency class (GFEhood)

Functions and features

Control method

Touch control

Number of speeds

3 + power

Automatic Power revert (minutes)

Motor

Integrated

Sound absorber

Integrated

Recirculation

Not applicable

InTouch function

Optional

Auto stop

Yes

Delayed switch off (minutes)

Number of grease filters

Grease filter

7830020

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Lighting

Functional light dimmable

Soft-ON/OFF

Number of functional lights

Total energy consumption functional light (W)

Color functional light (K)

2700

Dimensions

Advised mounting height induction hobs (Hmin-Hmax) (mm)

500 - 750

Product dimensions exhaust (WxDxHmin-Hmax) (mm)

748 x 426 x 830 - 1100

Product dimensions recirculation (WxDxHmin-Hmax) (mm)

748 x 426 x -

Max height optional chimney exhaust (mm)

1390

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

500 - 750

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 750

Position exhaust

Top / Back

Airflow and noise level

Airflow duct out speed 1 (m³/h)

248

Airflow duct out speed 2 (m³/h)

333

Airflow duct out speed 3 (m³/h)

495

Airflow duct out max powerspeed (m³/h) (Qboost)

788

Sound pressure duct out speed 1 (dB(A))

Sound pressure duct out speed 2 (dB(A))

Sound pressure duct out speed 3 (dB(A))

Sound pressure duct out at max powerspeed (dB(A))

Technical specifications

Maximum power (W)

325

Voltage appliance (V)

230

Frequency (Hz)

Length power supply cable (m)

1,3

Power consumption in off-mode (Po) (W)

Power consumption in stand-by-mode (Ps) (W)

0.29

Net weight (kg)

See all specifications

Manuals & downloads

Energy label Product File Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing

Associated accessories

7830020 Grease filter
Price € 69

7833100 Chimney extension Novy Vision
Price € 404

906060 Novy Stainless steel cleaner
Price € 34

906303 Kit led spare part neutral white 4.000K
Price € 79

906401
Price € 49

906402 Connector
Price € 24

906403 Horizontal bend 90°
Price € 59

906404 Vertical bend 90°
Price € 49

906405 Angle adaptor round to rectangular
Price € 59

906406 Transfer rectangular to round
Price € 49

906407 Wall conduct with non-return valve
Price € 264

906418 Bend 15° for flat duct
Price € 19

906415
Price € 49

906416 Bend 90*
Price € 49

906417 Connector
Price € 14

906218 Flexible tube 10m
Price € 94

906287 Flexible silencer
Price € 59

906217 Flexible tube 3m
Price € 49

906178 Wall exhaust valve - Ø 150 mm
Price € 94

906432 Mechanical non-return valve - Ø 150mm
Price € 59

906291 Clamp Ø 150mm
Price € 14

906292 Aluminium tape
Price € 34

906301 Installation kit - Ø 150 mm
Price € 124

990021 InTouch Kit incl. remote control
Price € 159
