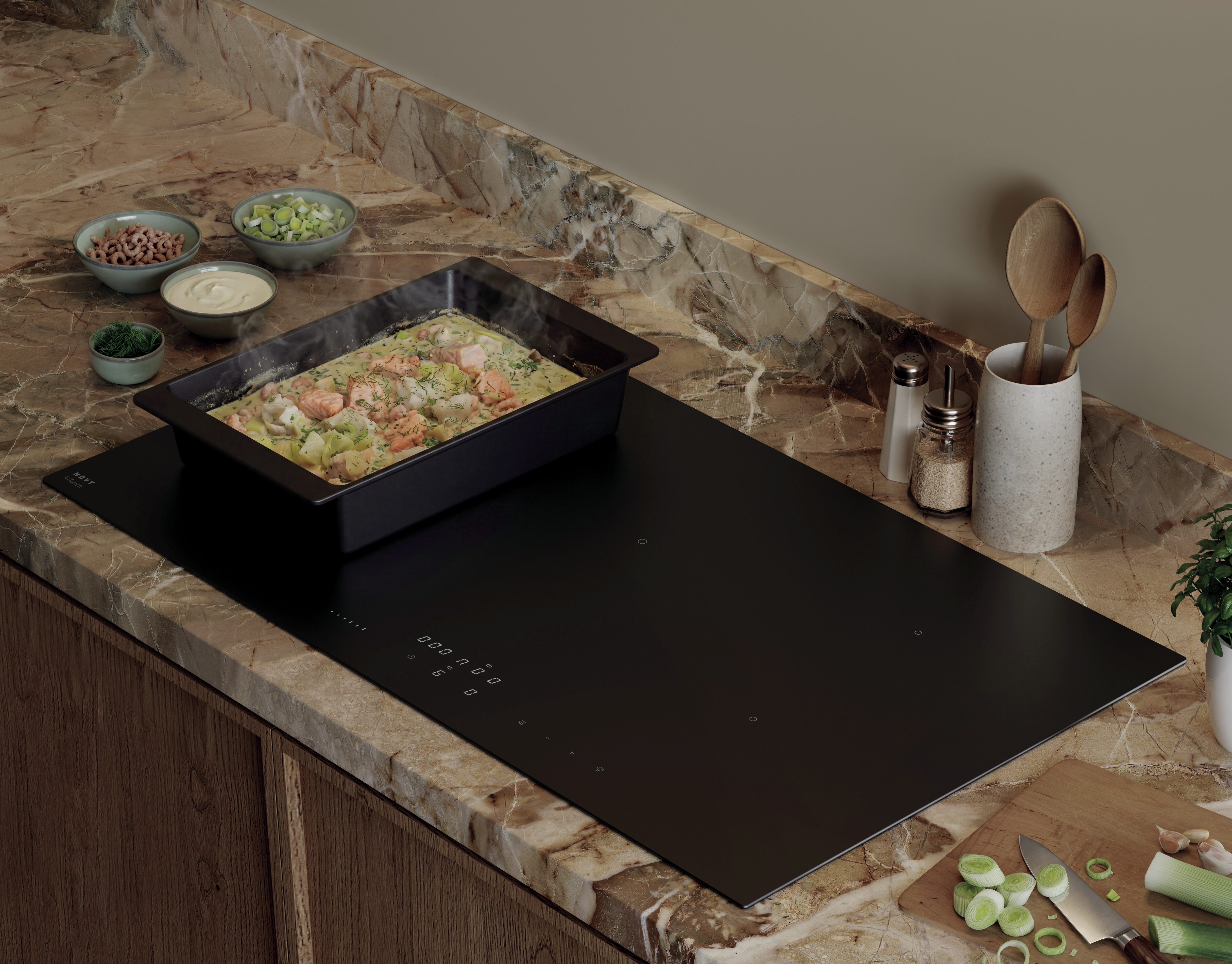

Induction cooktop Novy Power Matte Line 90 cm
Type number: 1768-g1
1768-g1 Induction Novy Power Matte Line 90 cm Black
- Great flexibility due to the combination of octagonal and round zones
- Extensive cooking programs for refined cooking, such as 1 automatic Flexzone
- Red slider touch control
- Maximum power of 3000W per octagonal and Ø 280mm zone
- Maximum power of 2100W per Ø 200mm zone
- Surface and flush installation possible
Specifications
Weights & Dimensions
Product Depth
520 Millimeter
Product Width
900 Millimeter
Product Height
51 Millimeter
Product Dimensions (WxDxH) (mm)
900 x 520 x 51
Energy Specifications
Primary Energy Type
Electric
Electrical Total Wattage
10400 Watt
Electrical Hertz (frequency)
50-60 Hertz
Electrical Connection (Plug) Type
Not available
Electrical Connection Location
Back
Installation Details
Installation Type
Built-in appliance
Functions and Features
Flexzone
1
Chef function
No
Grill function
No
Pause function
Yes
Childproof lock
Yes
Control Location
Central bottom
InTouch function
Standard
Pot move function
No
Safety time-switch-off
Yes
Automatic pan recognition
Yes
Timer Type
Timer, timer per zone, count-up timer, automatic cooking
Control Type
Electronic
Control method
Slider touch control
Keep Warm Function
42°C, 70°C, 94°C
Finishing
Glass
Residual heat indication in worktop
Yes
Flexzone activation
Automatic
Additional Technical Specifications
Niche depth (mm)
600 Millimeter
Glass thickness (mm)
4 Millimeter
Heat accelerator
Yes
Wipeguard function
No
Main on/off switch
No
Product casing width (mm)
850 Centimeter
Width cut-out worktop
850 Centimeter
Exterior Finish Color
Black
Number of Cooking Zones
5 zones
Depth backside cut out opening (mm)
50 Millimeter
Residential Cooking Surface Configuration
| Burner | Position | Zone Dimension (mm) | Burner Type | Power Rating | Power Rating (Booster) |
|---|---|---|---|---|---|
| Burner 1 | Left Front | 240x200 | Induction Burner | 2100 Watt | 3000 Watt |
| Burner 2 | Left Rear | 240x200 | Induction Burner | 2100 Watt | 3000 Watt |
| Burner 3 | Center | 280 | Induction Burner | 2300 Watt | 3000 Watt |
| Burner 4 | Right Front | 200 | Induction Burner | 1400 Watt | 2100 Watt |
| Burner 5 | Right Rear | 200 | Induction Burner | 1400 Watt | 2100 Watt |
Glass edge
Rounded edge
Association / Cleaning
906091, 906092, 906093, 906094
Depth cut-out worktop
490
Cut-out worktop (WxD) (mm)
850 x 490
Mounting method
Surface-mounted, Flush-mounted
Association / Cooking accessories
1700092, 1700093, 1700095
