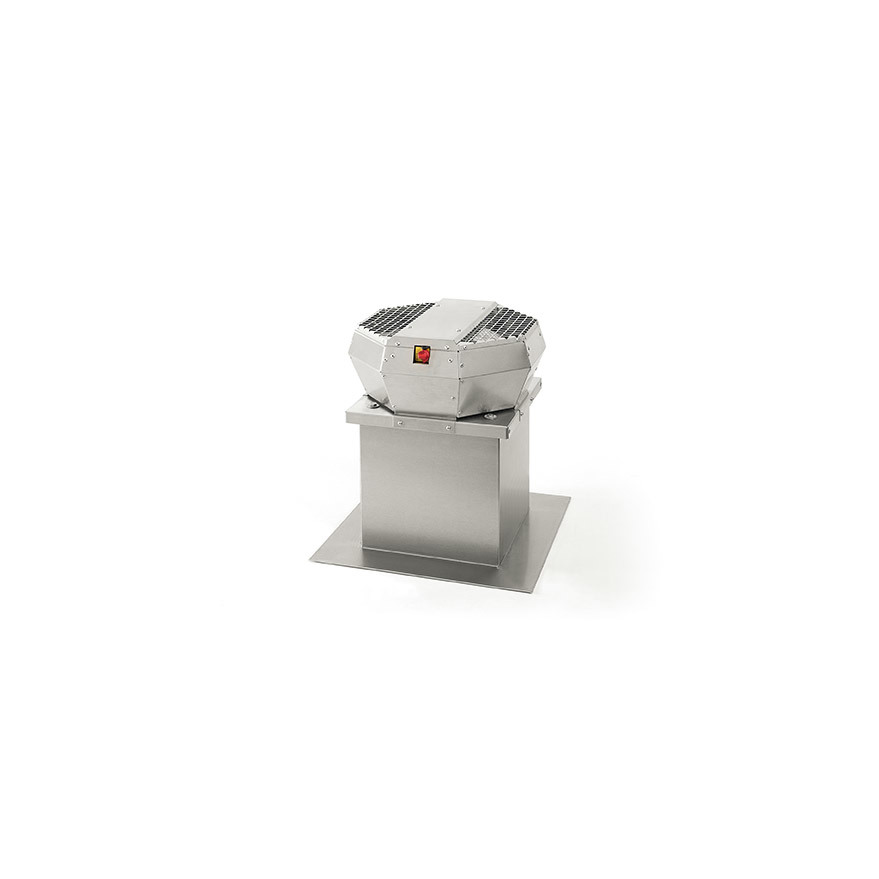

Flat roof motor 48,8 cm high
Type number: 745999
745999 Flat roof motor 48,8 cm high
- To be combined with motorless decorative Novy cooker hoods and Novy Pureline
- Inlet ΓΈ 150 mm
- Mains voltage 230V - 50 Hz
Specifications
Weights & Dimensions
Product Depth
388 Millimeter
Product Width
388 Millimeter
Product Height
488 Millimeter
Product Weight
11.6 Kilogram
Product Dimensions (WxDxH)
388 x 388 x 488
Energy Specifications
Electrical Volts
230V
Electrical Total Wattage
191 Watt
Electrical Hertz (frequency)
50 Hertz
Functions and Features
Number of Fan Speeds
3 + power
Finishing
Not applicable
Regulation, Compliance, Certifications
Airflow duct out max powerspeed (Qboost)
1150 Cubic meter per hour
Additional Technical Specifications
Isolated switch
Yes
Dimensions inlet (mm)
149 Millimeter
Isolated roof socket
Yes
Exterior Finish Color
Aluminium
Automatic shutter
Yes
Diameter cut-out wall/roof (mm)
180
Max operating temperature (°C)
65 Celsius
Min operating temperature (°C)
-25 Celsius
Isolated roof socket and sound absorber
No
