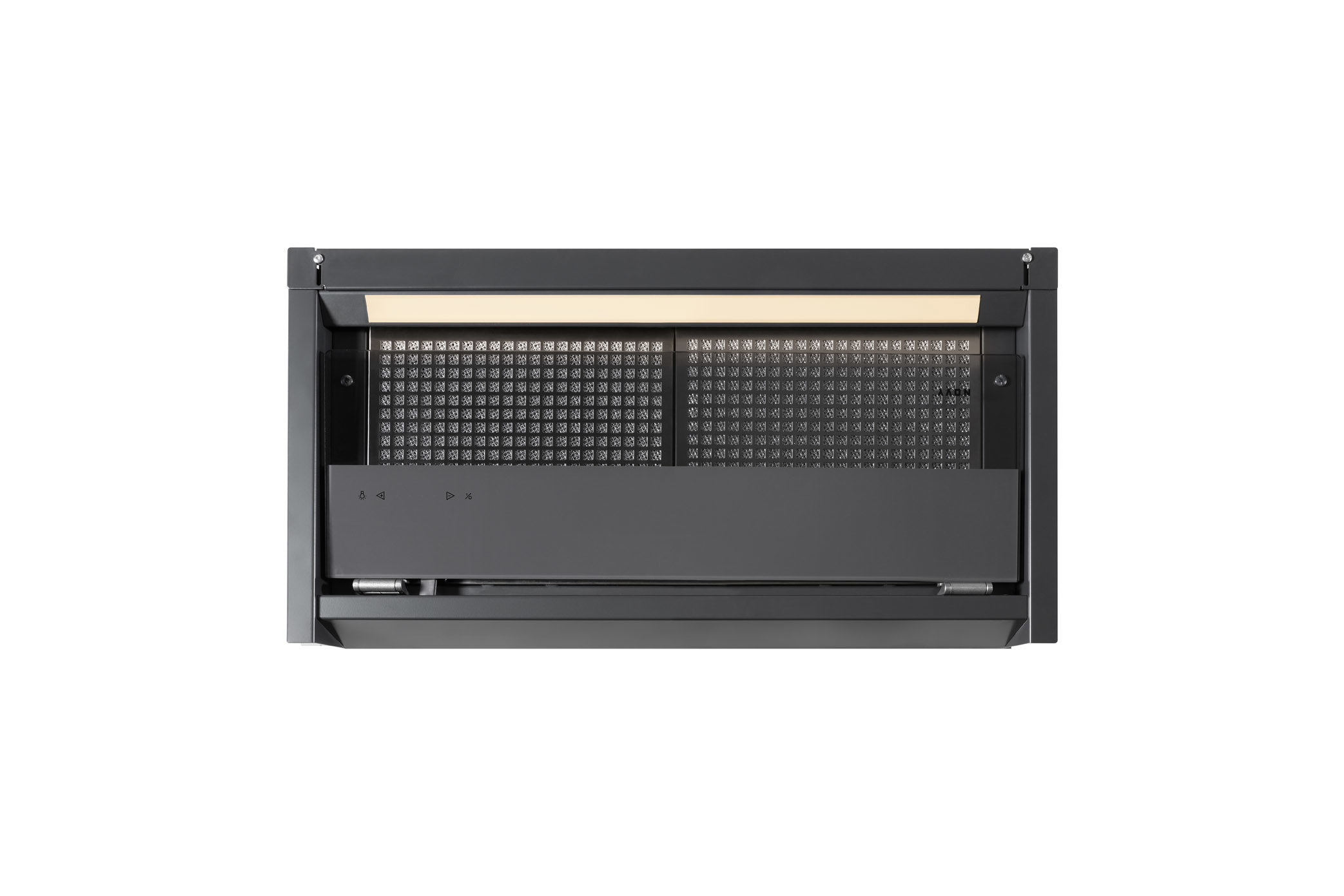

Novy Telescopic Fusion Pro 8710

Type number: 8710

Comparer

See other versions of this product

Fusion Pro 60 cm Anthracite

Can be invisibly integrated into a wall cabinet with minimum and maximum depth of between 310-351 mm Tilting cover in transparent glass for optimum capture of cooking vapours
Sufficient space for storage
LED strip (3,000 K), dimmable

Add to my selection

Specifications

Energy label

Energy Efficiency class (EEIhood)

A+

Annual Energy Consumption (kWh/year) (AEChood)

33,3

Lighting Efficiency class (LEhood)

Fluid Dynamic Efficiency class (FDEhood)

Grease Filtering Efficiency class (GFEhood)

Functions and features

Control method

Touch control

Number of speeds

3 + power

Automatic Power revert (minutes)

Motor

Integrated

Sound absorber

Integrated

Recirculation

Optional

InTouch function

Standard

Auto stop

Yes

Delayed switch off (minutes)

Number of grease filters

Grease filter

8740050

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Yes

Lighting

Functional lighting type

Led strip

Ambient lighting type

Not Applicable

Functional light dimmable

Yes

Number of functional lights

Total energy consumption functional light (W)

Color functional light (K)

3000

Color ambient light (K)

Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)

600 x 310 x 340

Dimensions cut-out opening (WxD) (mm)

Advised mounting height induction hobs (Hmin-Hmax) (mm)

500 - 750

Min dimensions cabinet (WxDxH) (mm)

600 x 310 x 340

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

500 - 750

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 750

Diameter outlet (mm)

150

Position exhaust

Top

Airflow and noise level

Airflow duct out speed 1 (m³/h)

395

Airflow duct out speed 2 (m³/h)

535

Airflow duct out speed 3 (m³/h)

608

Airflow duct out max powerspeed (m³/h) (Qboost)

682

Sound pressure duct out speed 1 (dB(A))

Sound pressure duct out speed 2 (dB(A))

Sound pressure duct out speed 3 (dB(A))

Sound pressure duct out at max powerspeed (dB(A))

Technical specifications

Maximum power (W)

115

Voltage appliance (V)

230

Frequency (Hz)

Length power supply cable (m)

1,1

Power consumption in stand-by-mode (Ps) (W)

0,25

Net weight (kg)

11,2

See all specifications

Manuals & downloads

Energy label Product File Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing
