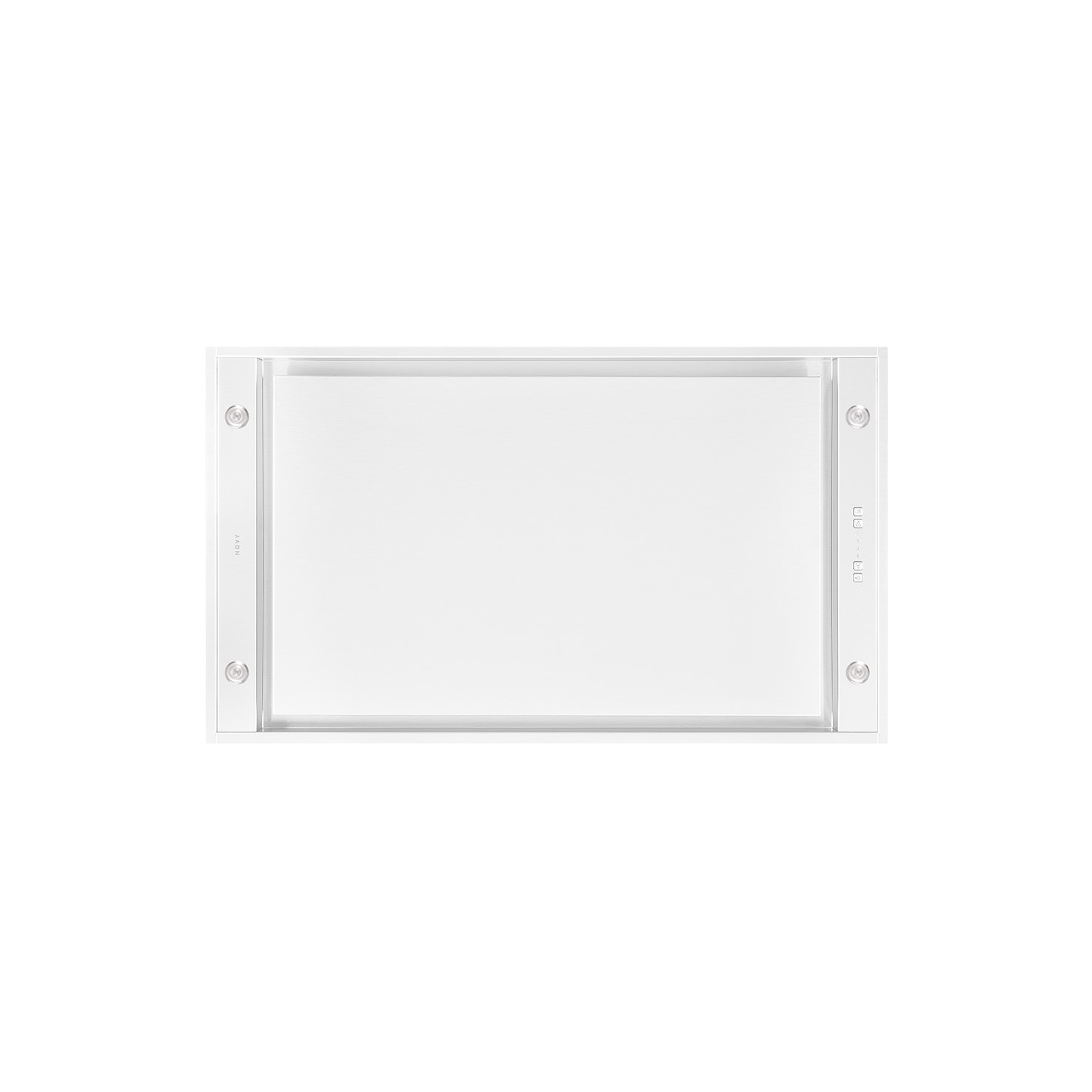

Novy Ceiling unit Pureline 6836

Type number: 6836

Novy Ceiling unit Pureline 6836 Enlarge
Novy Ceiling unit Pureline 6836
Novy Ceiling unit Pureline 6836
Novy Ceiling unit Pureline 6836
See other versions of this product

Pureline 90 cm (without motor) White

  • Maximum efficiency but extremely quiet
  • LED lighting warm white (2700K) adjustable to neutral white (4000K)
  • integrated dimmable LED lighting
  • flexible installation to models:
  • without a motor, for use with an external motor
remote control

Optional

Add to my selection

Specifications

Energy label

Lighting Efficiency class (LEhood)
Not applicable

Functions and features

Control method
Push buttons / Remote control
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Without
Sound absorber
Integrated
Recirculation
Not applicable
InTouch function
Standard
Auto stop
Yes
Delayed switch off (minutes)
10/30
Number of grease filters
2
Grease filter
6830020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
No

Lighting

Functional lighting type
Led
Ambient lighting type
Not Applicable
Dimmable light
Yes
Soft-ON/OFF
Yes
Number of functional lights
4
Total energy consumption functional light (W)
8
Color functional light
2700/4000
Color ambient light
Not Applicable
External light connector
Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)
868 x 508 x 81
Height incl. mounting clamps (without motorbox) (mm)
133
Width flange (mm)
15
Dimensions cut-out opening (WxD) (mm)
845 x 485
Advised mounting height induction hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 1600
Diameter outlet (mm)
150
Position exhaust
Top

Technical specifications

Maximum power (W)
13
Voltage cooker hood (V)
220-230
Frequency (Hz)
50
Length power supply cord (m)
1,2
Power consumption in stand-by-mode (Ps) (W)
0.25
Net weight (kg)
16,5
See all specifications

Manuals & downloads

Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing

Associated accessories

6830020 Grease Filter

906401 Rectangular duct 89×222×1000 mm

906402 Connector

906403 horizontal 90

906404 Vertical bend with air deflectors

906405 Corner adapter

906406 Connector rectangular round

906407 Wall conduct with non-return valve

906418 Connector rectangular

906415 Round tube, diameter 150 mm length 1 m

906416 connector round

906417 Connector

906218 Aluminium tubing

906287 Flexible silencer

906217 Aluminium tubing

906432 Non-return valve

906291 clamp

906178 Aluminium wall vent

906292 Aluminium tape

445999 Wall motor

745999 Flat roof motor 48,8 cm high, 1.150 m³/h

755999 Flat roof motor with silencer 78,4 cm high, 1.145 m³/h

6830053 Adapter for limited installation height 17,3 cm

990030 Control kit for external lighting or valve

7000092 Extension cable 5 m

906432 Non-return valve

906271 Non-return valve 150 mm electric

840029 Remote control

906060 Inox Cleaner
