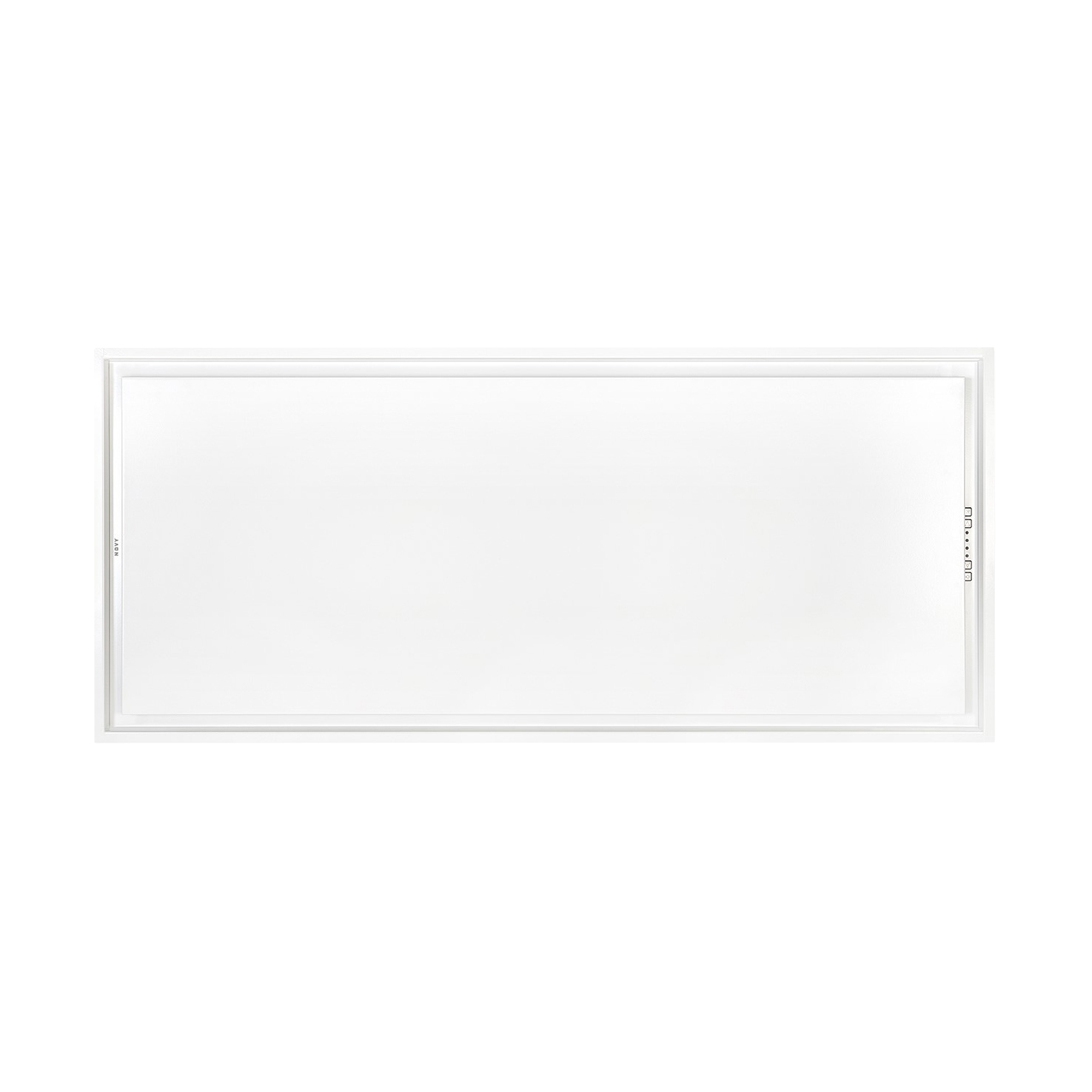

Novy Ceiling unit Novy Pureline 6849

Type number: 6849

Novy Ceiling unit Novy Pureline 6849 Comparer
6849 Ceiling unit Novy Pureline 90 cm (without motor)
6849 Ceiling unit Novy Pureline 90 cm (without motor)
6849 Ceiling unit Novy Pureline 90 cm (without motor)
See other versions of this product

Novy Pureline 120 cm (without motor)White

  • Maximum efficiency but extremely quiet
  • flexible installation thanks to models:
  • without a motor, for use with an external motor
  • no lighting, to suit your own lighting plan
  • external lighting to be connected through the cooker hood and controlled via the cooker hood and
  • or remote control
ecosmart directe afvoer afstandsbediening intouch inbouwhoogte_1m60 randafzuiging click_fix

Optional

recirculatie

Specifications

Energy label

Lighting Efficiency class (LEhood)
Not applicable

Functions and features

Control method
Push buttons / Remote control
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Without
Sound absorber
Integrated
Recirculation
Not applicable
InTouch function
Standard
Auto stop
Yes
Delayed switch off (minutes)
10/30
Number of grease filters
2
Grease filter
6830020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
No

Lighting

Functional lighting type
Not Applicable
Ambient lighting type
Not Applicable
Functional light dimmable
No
Soft-ON/OFF
No
Color functional light (K)
Not Applicable
Color ambient light (K)
Not Applicable
External light connector
220-230V / max 300W / Not Dimmable

Dimensions

Product dimensions (WxDxH) (mm)
1168 x 508 x 81
Height incl. mounting clamps (without motorbox) (mm)
133
Width flange (mm)
15
Dimensions cut-out opening (WxD) (mm)
1145 x 485
Advised mounting height induction hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 1600
Diameter outlet (mm)
150
Position exhaust
Top

Airflow and noise level

Technical specifications

Maximum power (W)
0
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1,2
Power consumption in stand-by-mode (Ps) (W)
0.29
Net weight (kg)
19
See all specifications

Manuals & downloads

Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing

Associated accessories

6830020 Grease Filter Novy Pureline
Price € 69

445999 Wall motor
Price € 1,064

745999 Flat roof motor 48,8 cm high
Price € 1,784

755999 Flat roof motor 78,4 cm high
Price € 2,049

906060 Inox Cleaner
Price € 34

906401
Price € 49

906402 Connector
Price € 24

906403 Horizontal bend 90°
Price € 59

906404 Vertical bend 90°
Price € 49

906405 Angle adaptor round to rectangular
Price € 59

906406 Transfer rectangular to round
Price € 49

906407 Wall conduct with non-return valve
Price € 264

906418 Bend 15° for flat duct
Price € 19

906415
Price € 49

906416 Bend 90*
Price € 49

906417 Connector
Price € 14

906218 Flexible tube 10m
Price € 94

906287 Flexible silencer
Price € 59

906217 Flexible tube 3m
Price € 49

906301 Installation kit - Ø 150 mm
Price € 124

906432 Mechanical non-return valve - Ø 150mm
Price € 59

906291 Clamp Ø 150mm
Price € 14

906292 Aluminium tape
Price € 34

906178 Wall exhaust valve - Ø 150 mm
Price € 94

990030 Control kit for external lighting or valve
Price € 169

840029 Remote control
Price € 104

7000092 Extension cable for remote motor - 5 m
Price € 49

6830053 Adapter limited installation height for Novy Pureline (Pro)
Price € 159

906432 Mechanical non-return valve - Ø 150mm
Price € 59

906271 Electric non-return valve - Ø 150mm
Price € 309
