Novy Island mounted Flatline 7650

Specifications

Energy label

Energy Efficiency class (EEIhood)

Annual Energy Consumption (kWh/year) (AEChood)

Lighting Efficiency class (LEhood)

Fluid Dynamic Efficiency class (FDEhood)

Grease Filtering Efficiency class (GFEhood)

Functions and features

Control method

Push buttons

Number of speeds

3 + power

Automatic Power revert (minutes)

Motor

Integrated

Sound absorber

Integrated

Recirculation

Optional

InTouch function

Optional

Auto stop

Yes

Delayed switch off (minutes)

Number of grease filters

Grease filter

7400020

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Yes

Lighting

Ambient lighting type

Not Applicable

Functional light dimmable

Yes

Soft-ON/OFF

Yes

Number of functional lights

Total energy consumption functional light (W)

Color ambient light (K)

Not Applicable

Dimensions

Advised mounting height induction hobs (Hmin-Hmax) (mm)

650 - 850

Product dimensions exhaust (WxDxHmin-Hmax) (mm)

1000 x 700 x 563 - 730

Product dimensions recirculation (WxDxHmin-Hmax) (mm)

1000 x 700 x 679 - 860

Max height optional chimney [a] exhaust (mm)

1040

Max height optional chimney [b] exhaust (mm)

1350

Max height optional chimney [b] recirculation (mm)

1480

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

600 - 850

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 850

Diameter outlet (mm)

150

Position exhaust

Top

Airflow and noise level

Airflow duct out speed 1 (m³/h) / Max pressure duct out speed 1 (Pa)

216 / 314

Airflow duct out speed 2 (m³/h) / Max pressure duct out speed 2 (Pa)

296 / 472

Airflow duct out speed 3 (m³/h) / Max pressure duct out speed 3 (Pa)

451 / 531

Airflow duct out max powerspeed (m³/h) (Qboost) / Max pressure duct out max powerspeed (Pa)

743 / 555

Sound pressure duct out speed 1 (dB(A)) / Sound power duct out speed 1 (dB(A))

32 / 47

Sound pressure duct out speed 2 (dB(A)) / Sound power duct out speed 2 (dB(A))

35 / 50

Sound pressure duct out speed 3 (dB(A)) / Sound power duct out speed 3 (dB(A))

41 / 57

Sound pressure duct out at max powerspeed (dB(A)) / Sound power duct out at max powerspeed (dB(A)) (LWAboost)

50 / 64

Technical specifications

Maximum power (W)

308

Voltage cooker hood (V)

230

Frequency (Hz)

Length power supply cable (m)

1,3

Power consumption in stand-by-mode (Ps) (W)

0.25

Net weight (kg)

See all specifications

Associated accessories

7400020 Grease Filter

7600060 Replacement monoblock filter Flatline (276x251x30 mm)

7640400 Recirculation set Novy Flatline island

906401 Rectangular duct 89×222×1000 mm

906402 Connector

906403 horizontal 90

906404 Vertical bend with air deflectors

906405 Corner adapter

906406 Connector rectangular round

906407 Wall conduct with non-return valve

906418 Connector rectangular

906415 Round tube, diameter 150 mm length 1 m

906416 connector round

906417 Connector

906218 Aluminium tubing

906287 Flexible silencer

906217 Aluminium tubing

906301 Installation kit

906432 Non-return valve

906291 clamp

906292 Aluminium tape

906178 Aluminium wall vent

7640100 Chimney extension option A stainless steel

7640101 Chimney extension option B stainless steel

990030 Control kit for external lighting or valve

906307 Kit led spare part neutral white 4.000K 4 pcs

906432 Non-return valve

906271 Non-return valve 150 mm electric

840029 Remote control

906060 Inox Cleaner

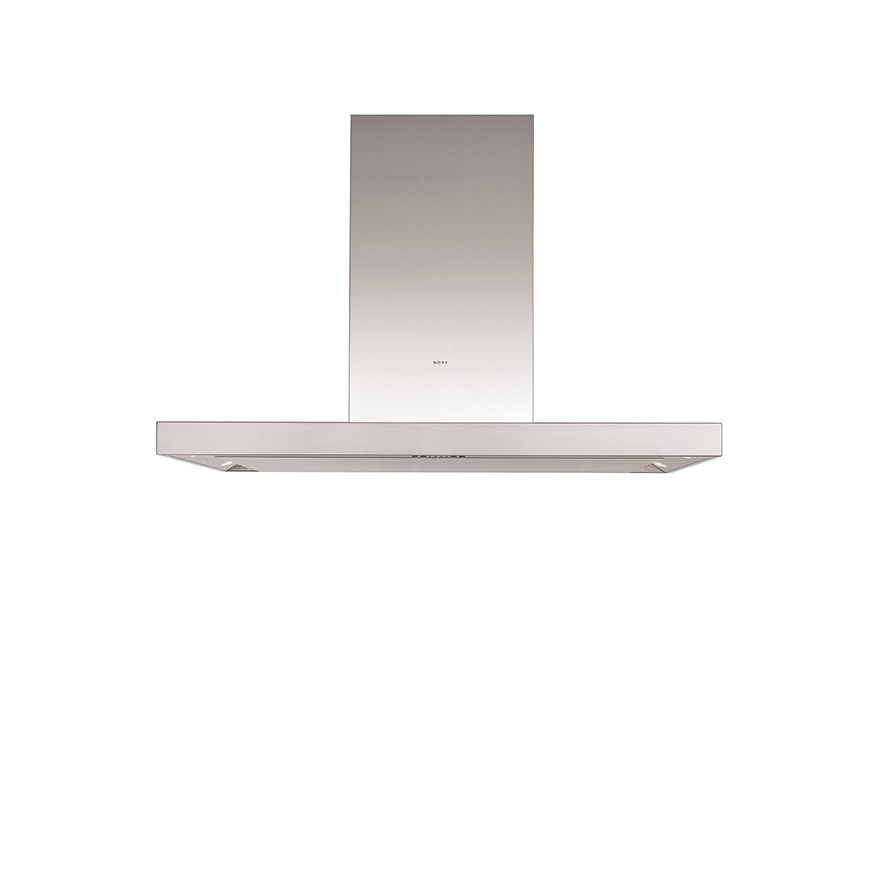

Novy Island mounted Flatline 7650

Flatline 100 cm Stainless steel
