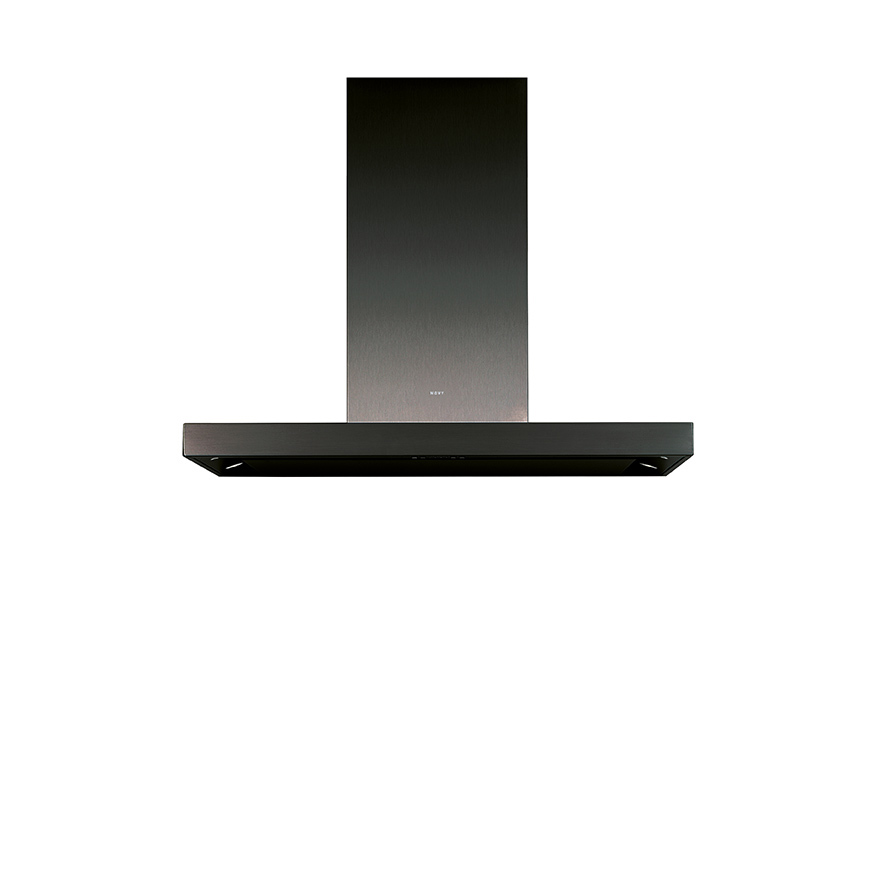

Novy Wall mounted Flatline 7602

Type number: 7602

Novy Wall mounted Flatline 7602 Comparer
7602 Wall mounted Flatline 90 cm
7602 Wall mounted Flatline 90 cm
7602 Wall mounted Flatline 90 cm
7602 Wall mounted Flatline 90 cm
See other versions of this product
Clean lines in a timeless design

Flatline 90 cm Mineral Black

  • Mineral Black: stylish design effect, low-maintenance and less sensitive to fingerprints
  • Extra slim lines
  • Seamless finish
  • subtle looking LED lighting (2700K)
  • Reversible chimney for recirculation as standard
ecosmart directe afvoer inbouwhoogte_75 randafzuiging intouch

Optional

recirculatie afstandsbediening

Specifications

Energy label

Energy Efficiency class (EEIhood)
A+
Annual Energy Consumption (kWh/year) (AEChood)
34,1
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
A
Grease Filtering Efficiency class (GFEhood)
D

Functions and features

Control method
Push buttons
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Integrated
Sound absorber
Integrated
Recirculation
Optional
InTouch function
Optional
Auto stop
Yes
Delayed switch off (minutes)
10
Number of grease filters
1
Grease filter
7530020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes

Lighting

Functional lighting type
LED
Ambient lighting type
Not Applicable
Functional light dimmable
Yes
Soft-ON/OFF
Yes
Number of functional lights
4
Total energy consumption functional light (W)
12
Color functional light (K)
2700
Color ambient light (K)
Not Applicable

Dimensions

Advised mounting height induction hobs (Hmin-Hmax) (mm)
650 - 750
Product dimensions exhaust (WxDxHmin-Hmax) (mm)
898 x 554 x 660 - 1050
Product dimensions recirculation (WxDxHmin-Hmax) (mm)
898 x 554 x 730 - 1120
Max height optional chimney exhaust (mm)
1410
Max height optional chimney recirculation (mm)
1480
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 750
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 750
Diameter outlet (mm)
150
Position exhaust
Top

Airflow and noise level

Airflow duct out speed 1 (m³/h)
233
Airflow duct out speed 2 (m³/h)
415
Airflow duct out speed 3 (m³/h)
551
Airflow duct out max powerspeed (m³/h) (Qboost)
635
Sound pressure duct out speed 1 (dB(A))
24
Sound pressure duct out speed 2 (dB(A))
36
Sound pressure duct out speed 3 (dB(A))
44
Sound pressure duct out at max powerspeed (dB(A))
46

Technical specifications

Maximum power (W)
118
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1,3
Power consumption in stand-by-mode (Ps) (W)
0.25
Net weight (kg)
28,7
See all specifications

Manuals & downloads

Energy label Product File Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing

Associated accessories

7530020 Grease Filter
Price € 74

7602150 Chimney extension Novy Flatline
Price € 248

906060 Novy Stainless steel cleaner
Price € 34

906307 Kit led spare part neutral white 4.000K
Price € 159

906401
Price € 49

906402 Connector
Price € 24

906403 Horizontal bend 90°
Price € 59

906404 Vertical bend 90°
Price € 49

906405 Angle adaptor round to rectangular
Price € 59

906406 Transfer rectangular to round
Price € 49

906407 Wall conduct with non-return valve
Price € 264

906418 Bend 15° for flat duct
Price € 19

906415
Price € 49

906416 Bend 90*
Price € 49

906417 Connector
Price € 14

906218 Flexible tube 10m
Price € 94

906287 Flexible silencer
Price € 59

906217 Flexible tube 3m
Price € 49

906301 Installation kit - Ø 150 mm
Price € 124

906432 Mechanical non-return valve - Ø 150mm
Price € 59

906291 Clamp Ø 150mm
Price € 14

906292 Aluminium tape
Price € 34

906178 Wall exhaust valve - Ø 150 mm
Price € 94

990030 Kit connection with external cover and/or lighting
Price € 169

7600400 Monoblock recirculation set Novy Flatline wall 90 and 120 cm
Price € 219

7600060 Monoblock replacement filter
Price € 159

906432 Mechanical non-return valve - Ø 150mm
Price € 59

906271 Electric non-return valve - Ø 150mm
Price € 309

840029 Remote control (optional)
Price € 104
