Novy Island mounted Flatline 7645

Type number: 7645

Comparer

7645 Island mounted Flatline 90 cm (without motor)

See other versions of this product

Clean lines with an eye for detail

Flatline 90 cm (without motor)Stainless steel

Extra slim lines
seamless finish
subtle looking LED lighting (2700K)
model without motor

€ 2,334

Add to my selection

Specifications

Energy label

Lighting Efficiency class (LEhood)

Not applicable

Functions and features

Control method

Push buttons

Number of speeds

3 + power

Automatic Power revert (minutes)

Motor

Without

Sound absorber

Integrated

Recirculation

Not applicable

InTouch function

Optional

Auto stop

Yes

Delayed switch off (minutes)

Number of grease filters

Grease filter

7400020

Grease filter cleaning indication

Yes

Recirculation filter cleaning indication

Lighting

Functional lighting type

Ambient lighting type

Not Applicable

Functional light dimmable

Yes

Soft-ON/OFF

Yes

Number of functional lights

Total energy consumption functional light (W)

Color ambient light (K)

Not Applicable

Dimensions

Advised mounting height induction hobs (Hmin-Hmax) (mm)

650 - 850

Product dimensions exhaust (WxDxHmin-Hmax) (mm)

900 x 600 x 563 - 730

Product dimensions recirculation (WxDxHmin-Hmax) (mm)

900 x 600 x -

Max height optional chimney [a] exhaust (mm)

1040

Max height optional chimney [b] exhaust (mm)

1350

Advised mounting height ceramic hobs (Hmin-Hmax) (mm)

600 - 850

Advised mounting height gas hobs (Hmin-Hmax) (mm)

650 - 850

Diameter outlet (mm)

150

Position exhaust

Top

Airflow and noise level

Technical specifications

Maximum power (W)

Voltage cooker hood (V)

230

Frequency (Hz)

Length power supply cable (m)

1,3

Power consumption in stand-by-mode (Ps) (W)

0.25

Net weight (kg)

See all specifications

Manuals & downloads

Technical File User Manual Installation Manual Conformity Declaration CAT Technical drawing

Associated accessories

7400020 Grease Filter
Price € 2,334

7640100 Chimney extension option A stainless steel
Price € 2,334

7640101 Chimney extension option B stainless steel
Price € 2,334

245999 Remote motor for installation inside
Price € 2,334

445999 Wall motor
Price € 2,334

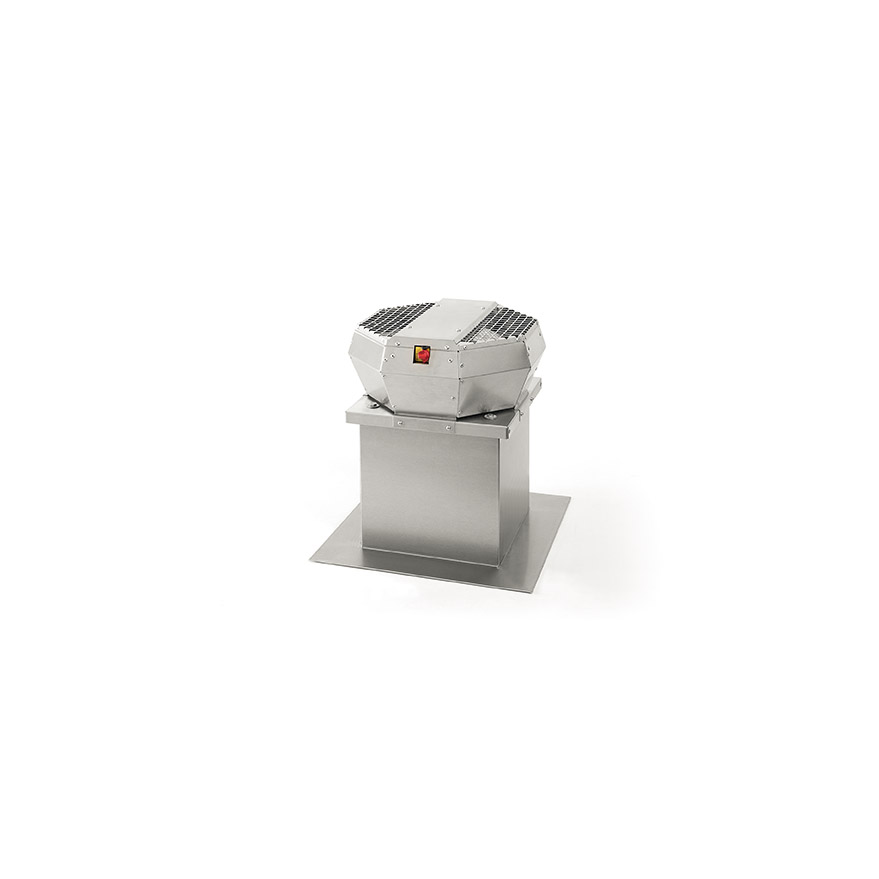

745999 Flat roof motor 48,8 cm high, 1.150 m³/h
Price € 2,334

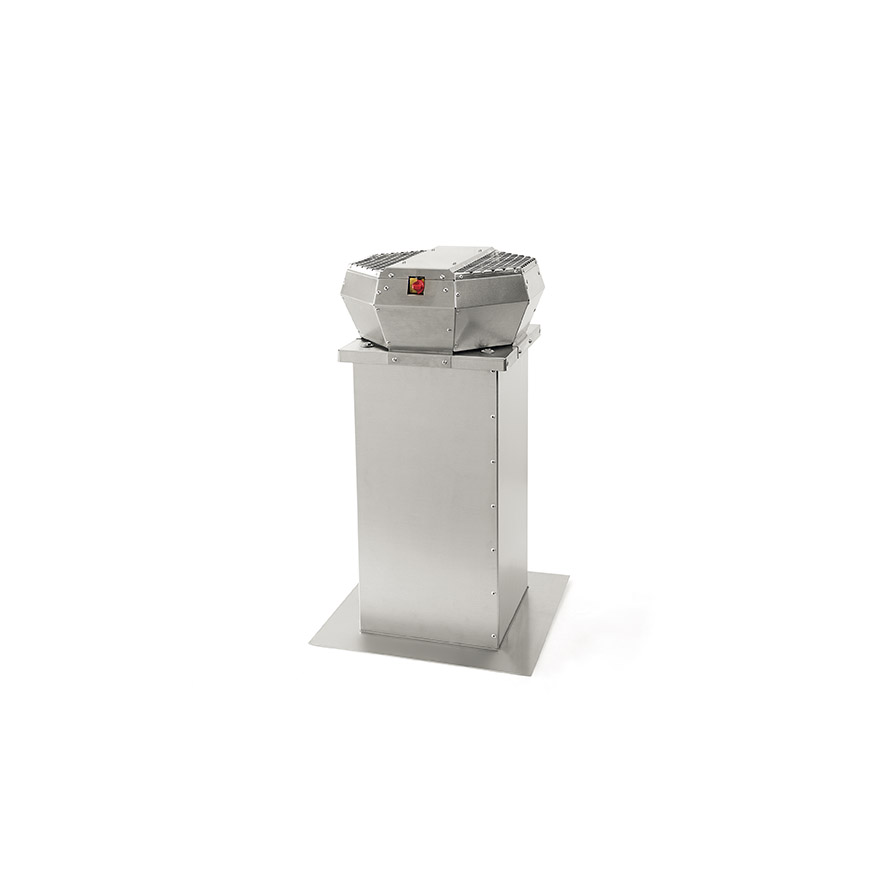

755999 Flat roof motor with silencer 78,4 cm high, 1.145 m³/h
Price € 2,334

906060 Inox Cleaner
Price € 2,334

906307 Kit led spare part neutral white 4.000K 4 pcs
Price € 2,334

906401 Rectangular duct 89×222×1000 mm
Price € 2,334

906402 Connector
Price € 2,334

906403 horizontal 90
Price € 2,334

906404 Vertical bend with air deflectors
Price € 2,334

906405 Corner adapter
Price € 2,334

906406 Connector rectangular round
Price € 2,334

906407 Wall conduct with non-return valve
Price € 2,334

906418 Connector rectangular
Price € 2,334

906419 Mechanical wall vent
Price € 2,334

906415 Round tube, diameter 150 mm length 1 m
Price € 2,334

906416 connector round
Price € 2,334

906417 Connector
Price € 2,334

906218 Aluminium tubing
Price € 2,334

906287 Flexible silencer
Price € 2,334

906217 Aluminium tubing
Price € 2,334

906301 Installation kit - Ø 150 mm
Price € 2,334

906432 Mechanical non-return valve - 150mm
Price € 2,334

906291 clamp
Price € 2,334

906292 Aluminium tape
Price € 2,334

906178 Aluminium wall vent
Price € 2,334

990030 Control kit for external lighting or valve
Price € 2,334

7000092 Extension cable 5 m
Price € 2,334
