Island mounted hoods Novy Phantom 130 cm
Type number: 7530
7530 Island mounted hoods Novy Phantom 130 cm Black
- Light translucent glass for an eye-catcher in the kitchen

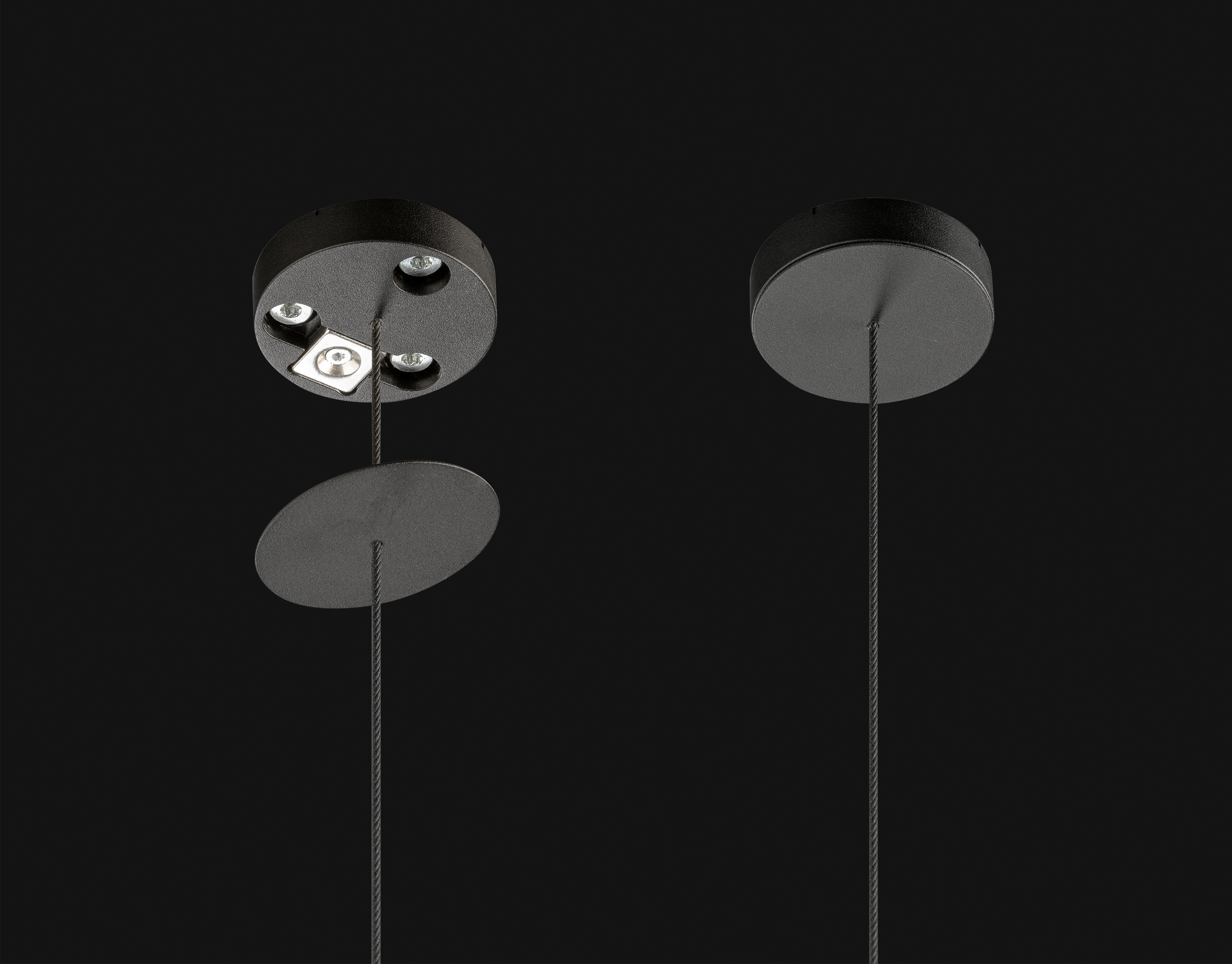

- Has an height-adjustable steel cable for a floating effect
- Four corner spotlights bring the box-in-box design to life (2,700 K)
- Dimmable LED strip creates atmospheric upward scattered light (2,700 K)
- Functional dimmable cooking light - colourtensity canbe selected (2,700 K to 4,000 K)
- Integrated recirculation solution for optimal energy efficiency
Specifications
Weights & Dimensions
Product Depth
475 Millimetre
Product Width
1302 Millimetre
Product Weight (kg)
45 Kilogram
Energy Specifications
Electrical Volts
230V
Electrical Total Wattage
159 Watt
Fuse (A)
10
Length power supply cable
1.7 Metre
Electrical frequency
50 Hertz
Electrical Connection (Plug) Type
Not available
Electrical Connection Location
Top
Installation Details
Max mounting height gas hobs
850 Millimetre
Min mounting height gas hobs
650 Millimetre
Max mounting height ceramic hobs
850 Millimetre
Min mounting height ceramic hobs
600 Millimetre
Max mounting height induction hobs
850 Millimetre
Min mounting height induction hobs
650 Millimetre
Position exhaust
Boven
Installation Type
Built-in appliance
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 850
Advised mounting height induction hobs (Hmin-Hmax) (mm)
650 - 850
Functions and Features
Auto stop
Yes
Novy Connect
Standard
Sound absorber
Integrated
InTouch function
Standard
Number of Motors
1
Automatic Power revert (minutes)
6 Minute
Delayed switch off
Yes
Fan Motor Location
Integrated
Number of Fan Speeds
3 + power
Grease filter
7530020
Number of Grease Filters
1
Diameter outlet
Not applicable
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Recirculation
monoblock, standard
Control method
Remote control
Finishing
Glass
Delayed Switch Off Minutes
30
Regulation, Compliance, Certifications
Sound power duct out speed 1
40 dBA
Sound power duct out speed 2
53 dBA
Sound power duct out speed 3
59 dBA
Airflow recirculation speed 2 (m³/h)
280 Cubic meter per hour
Airflow recirculation speed 3 (m³/h)
393 Cubic meter per hour
Airflow recirculation speed 4 (m³/h)
501 Cubic meter per hour
Sound regulation
EN 60704-2-13
Sound pressure duct out speed 1
27 dBA
Sound pressure duct out speed 2
41 dBA
Sound pressure duct out speed 3
46 dBA
Sound power recirculation speed 1 (dB(A))
40 dBA
Sound power recirculation speed 3 (dB(A))
59 dBA
Sound power recirculation speed 2 (dB(A))
53 dBA
Sound pressure recirculation speed 1 (dB(A))
27 dBA
Sound pressure recirculation speed 2 (dB(A))
41 dBA
Sound pressure recirculation speed 3 (dB(A))
46 dBA
Sound pressure duct out at minimum speed
27 dBA
Sound power recirculation at minimum speed (dB(A))
40 dBA
Sound pressure duct out at max powerspeed
50 dBA
Sound power recirculation at max powerspeed (dB(A))
63 dBA
Sound power duct out at max continuous speed (dB(A))
59 dBA
Sound pressure recirculation at minimum speed (dB(A))
27 dBA
Sound pressure recirculation at max powerspeed (dB(A))
50 dBA
Sound power recirculation at max continuous speed (dB(A))
59 dBA
Sound pressure recirculation at max continuous speedl (dB(A))
46 dBA
Sound pressure duct out at max continuous speed
46 dBA
Additional Technical Specifications
Back panel & chimney extensions
7530100
Cleaning products
906091, 906092, 906093
Remote control
840049
Recirculation filter
7300055
