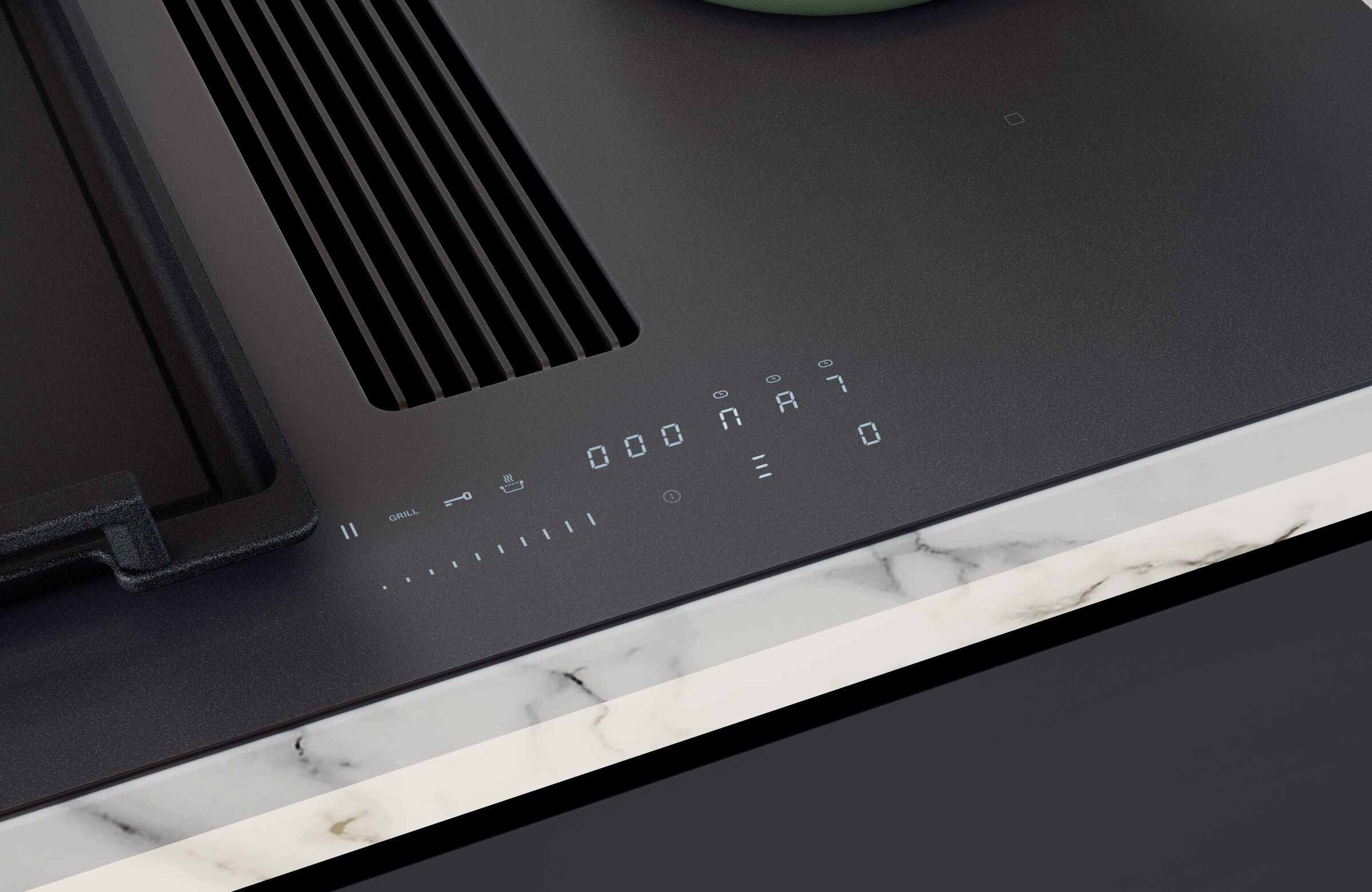

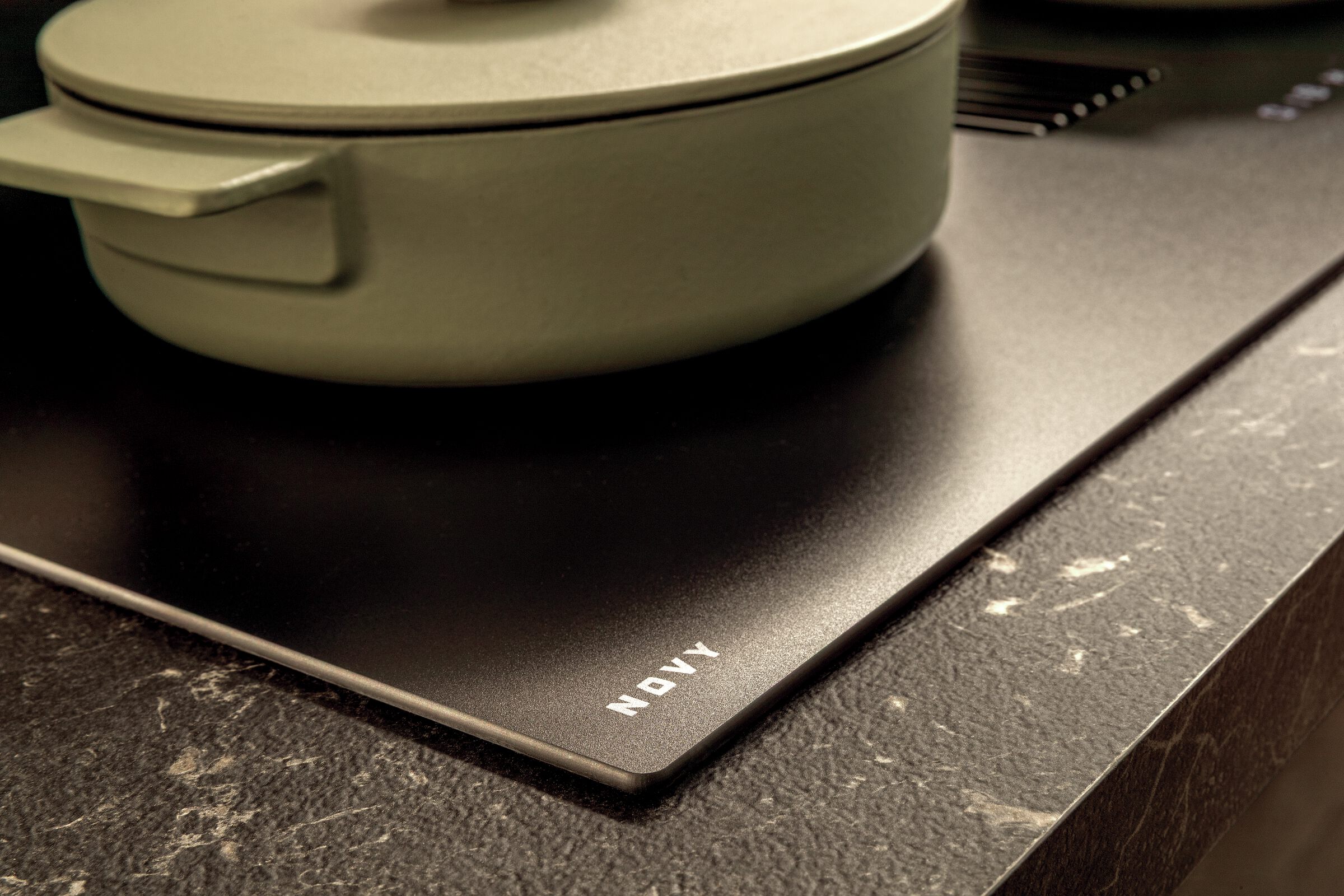

Venting hob Novy Easy Matte Line 80 cm
Type number: 1861-g1
1861-g1 Venting hob Novy Easy Matte Line 80 cm Black
- Matt black glass for a contemporary look
- Durable finish with fewer visible signs of use
- Easy maintenance
- White controls for a premium appearance
- Large cooking surface
- Optimised airflow due to elegant finish
Specifications
Weights & Dimensions
Product Depth
520 Millimetre
Product Width
800 Millimetre
Product Height
215 Millimetre
Product Weight (kg)
18.8 Kilogram
Product Dimensions (WxDxH) (mm)
800 Millimeter X 520 Millimeter X 215 Millimeter
Energy Specifications
Electrical Volts
230-400V
Electrical Total Wattage
7568 Watt
Length power supply cable
1.5 Metre
Electrical frequency
50-60 Hertz
Electrical Connection (Plug) Type
Other
Electrical Connection Location
Right
Installation Details
Position exhaust (to be delete)
Links
Functions and Features
Flexzone
2
Auto stop
Yes
Chef function
No
Grill function
Yes
Stop & Go function
Yes
Childproof lock
Yes
Number of Motors
1
Automatic Power revert (minutes)
10 Minute
Pot move function
No
Delayed switch off
Yes
Fan Motor Location
Integrated
Number of Fan Speeds
9 + power
Grease filter
99003
Safety time-switch-off
Yes
Number of Grease Filters
1
Automatic pan recognition
Yes
Diameter outlet
222x89
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Timer Type
Timer, timer per zone, automatic cooking
Control Type
Electronic
Recirculation
monoblock, standard
Control method
Slider touch control, Touch control
Keep Warm Function
70°C
Finishing
Glass
Residual heat indication in worktop
Yes
Delayed Switch Off Minutes
30
Flexzone activation
Manual
Regulation, Compliance, Certifications
Airflow duct out speed 1 (m³/h)
220 Cubic meter per hour
Sound power duct out speed 1
47 dB(A)
Max pressure duct out speed 1
46 Pascal
Sound regulation
DIN 45625-2
Sound pressure duct out speed 1
34 dB(A)
Airflow duct out max powerspeed (m³/h) (Qboost)
610 Cubic meter per hour
Max pressure duct out at minimum speed
46 Pascal
Airflow duct out at min speed (m3/h) (Qmin)
220 Cubic meter per hour
Sound pressure duct out at minimum speed
34 dB(A)
Sound pressure duct out at max powerspeed
66 dB(A)
Sound power duct out at max continuous speed (dB(A))
66 dB(A)
Max pressure duct out at max continuous speed
263 Pascal
Airflow duct out at max continuous speed (Qmax)
520 Cubic meter per hour
Sound pressure duct out at max continuous speed
54 dB(A)
Annual Energy Consumption (AEChood)
17,9
Energy efficiency class (EEIhood)
A+++
Lighting efficiency class (LEhood)
-
Fluid dynamic efficiency class (FDEhood)
A
Grease filtering efficiency class (GFEhood)
B
Additional Technical Specifications
Super Power function
Yes
Wipeguard function
No
Main on/off switch
No
Exterior Finish Color
Black
Number of Cooking Zones
4 zones
Depth backside cut out opening (mm)
55 Millimetre
Voltage cooker hood (V)
230
Cooking Surface Configuration
| Cooking zone | Position | Zone Dimension (mm) | Cooking zone type | Power Rating | Power Rating (Power) |
|---|---|---|---|---|---|
| Cooking zone 1 | Left Front | 240x210 | Induction cooking zone | 2100 Watt | 3000 Watt |
| Cooking zone 2 | Left Rear | 240x210 | Induction cooking zone | 2100 Watt | 3000 Watt |
| Cooking zone 3 | Right Rear | 240x210 | Induction cooking zone | 2100 Watt | 3000 Watt |
| Cooking zone 4 | Right Front | 240x210 | Induction cooking zone | 2100 Watt | 3000 Watt |
Cleaning products
906091, 906092, 906093
Recirculation kit
1861820

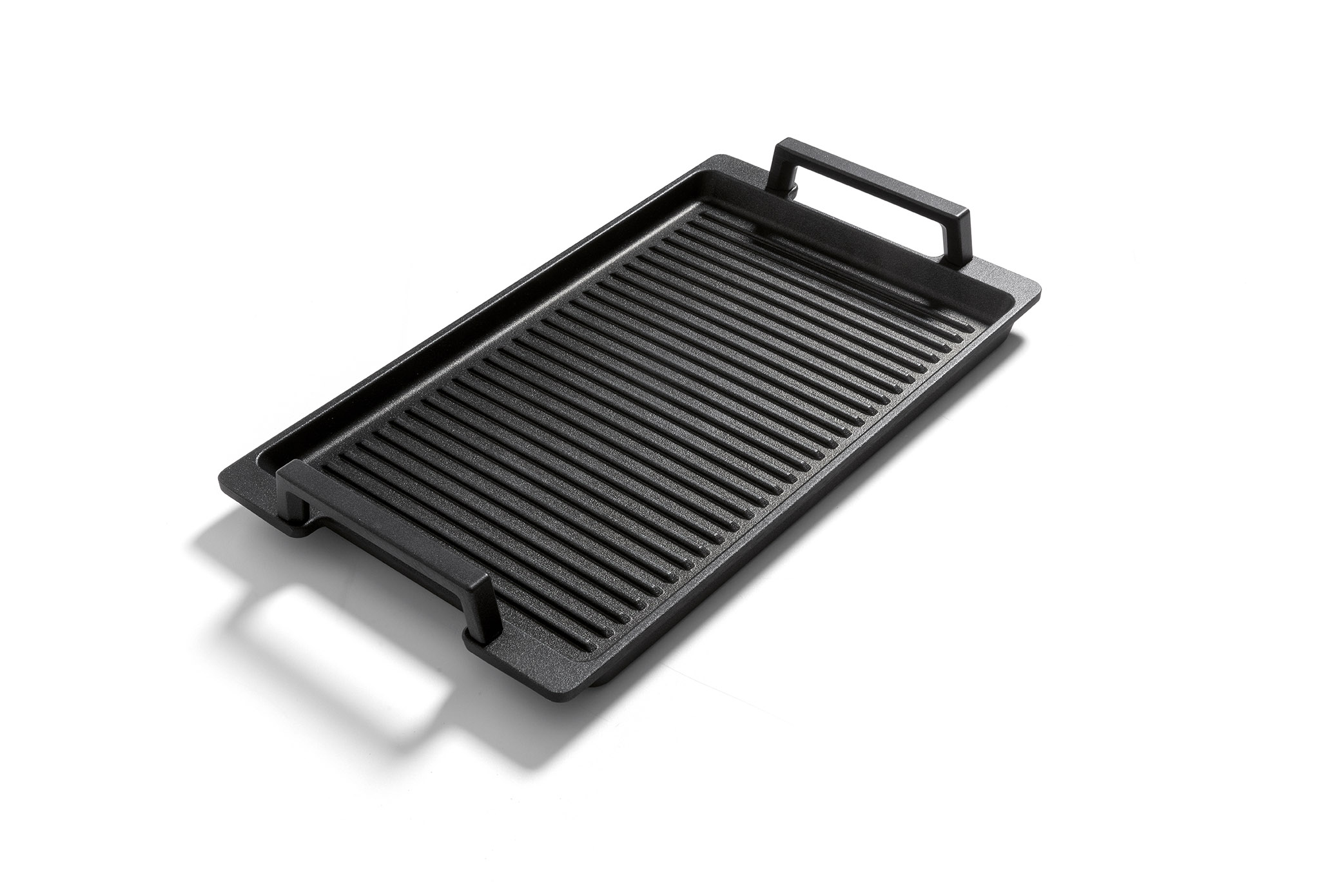

Cooking accessories
1700092, 1700093, 1700095
