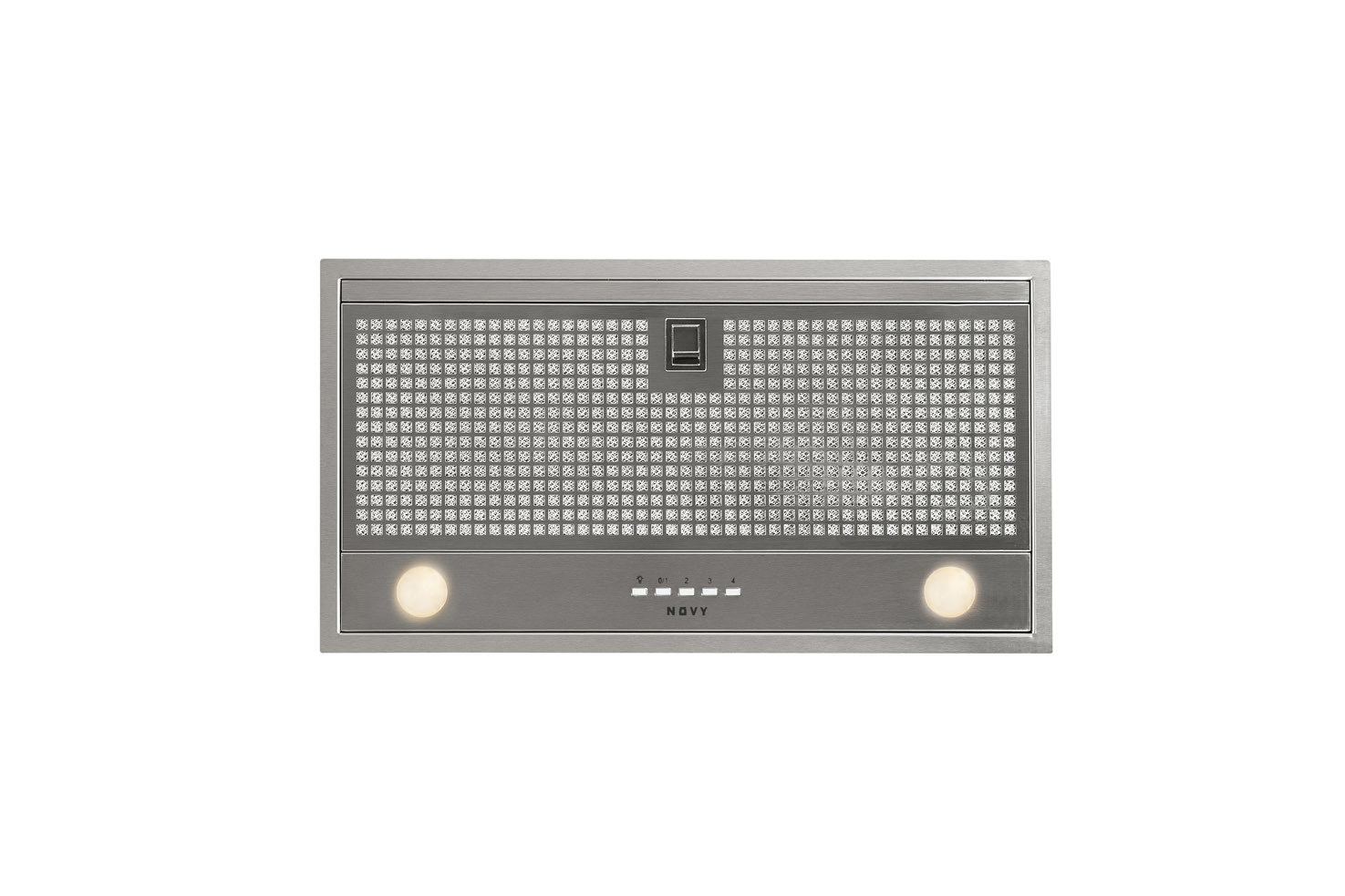

Novy Canopy Novy Essence 828

Type number: 828

Essence in all its simplicity

Novy Essence 60 cm Stainless steel

  • Built-in units in stainless steel for a decorative chimney or canopy
  • convenience and easy control
  • sleek design filter for the optimum extraction of cooking vapours
directe afvoer designfilter inbouwhoogte_75 click_fix

Optional

recirculatie

£ 604 including VAT


Specifications

Energy label

Energy Efficiency class (EEIhood)
B
Annual Energy Consumption (kWh/year) (AEChood)
62,9
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
C
Grease Filtering Efficiency class (GFEhood)
B

Functions and features

Control method
Push buttons
Number of speeds
4
Motor
Integrated
Sound absorber
Without
Recirculation
Optional
InTouch function
Not applicable
Auto stop
No
Number of grease filters
1
Grease filter
828020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes

Lighting

Ambient lighting type
Not Applicable
Functional light dimmable
No
Soft-ON/OFF
No
Number of functional lights
2
Total energy consumption functional light (W)
7
Color functional light (K)
2700
Color ambient light (K)
Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)
546 x 296 x 279
Width flange (mm)
12
Dimensions cut-out opening (WxD) (mm)
525 x 275
Advised mounting height induction hobs (Hmin-Hmax) (mm)
650 - 750
Min dimensions cabinet (WxDxH) (mm)
x 600 x
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 750
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 750
Diameter outlet (mm)
150
Position exhaust
Top

Airflow and noise level

Airflow duct out speed 1 (m³/h)
202
Airflow duct out speed 2 (m³/h)
299
Airflow duct out speed 3 (m³/h)
398
Sound pressure duct out speed 1 (dB(A))
26
Sound pressure duct out speed 2 (dB(A))
33
Sound pressure duct out speed 3 (dB(A))
42

Technical specifications

Maximum power (W)
167
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1
Power consumption in stand-by-mode (Ps) (W)
0,35
Net weight (kg)
8,5
