Canopy Novy Crystal 26080
Type number: 26080

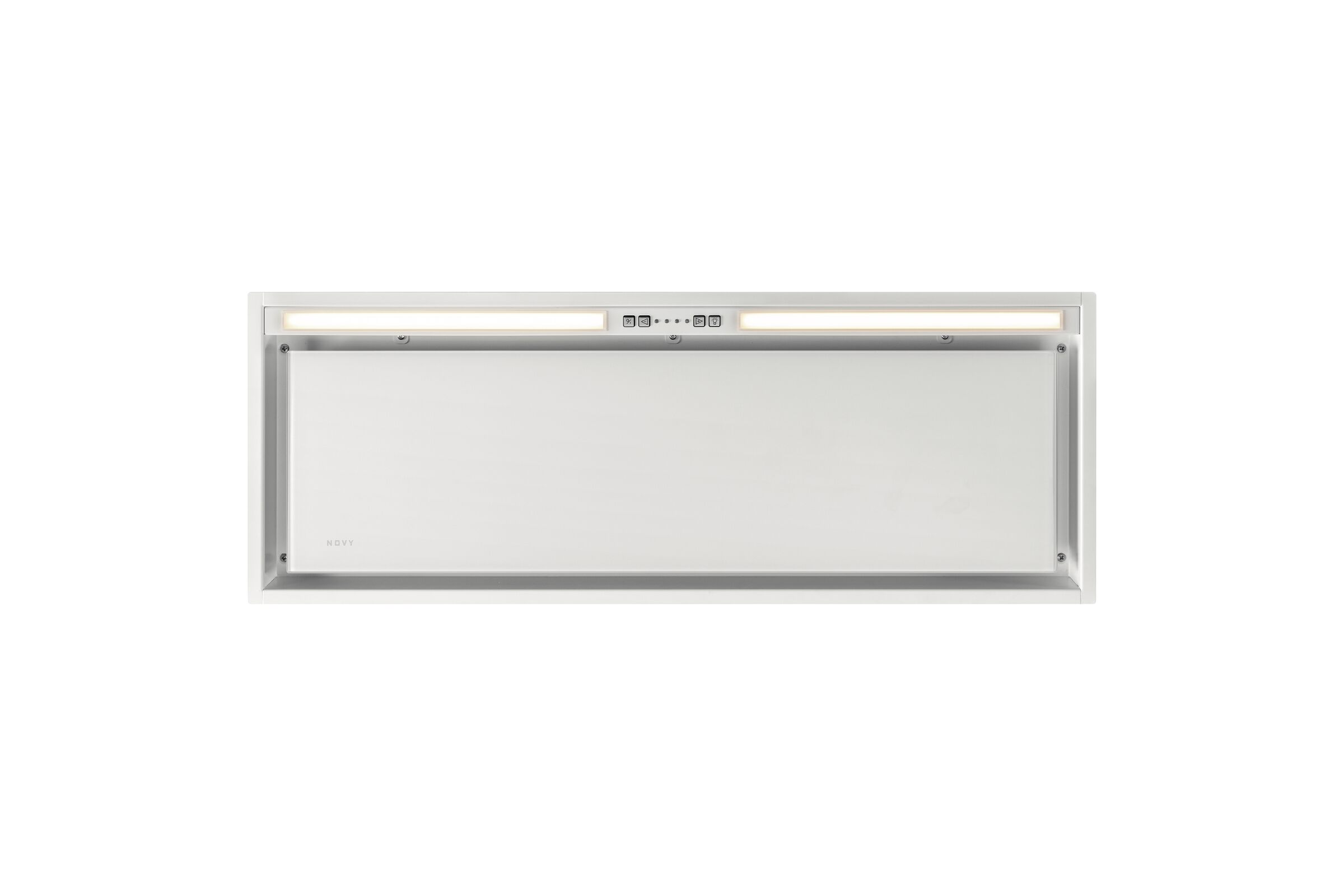

/Cooker hoods/Canopy/26080-Novy-Crystal-packshot_01.jpg?rmode=crop&width=538&height=538&format=webp)
/Cooker hoods/Canopy/26080-Novy-Crystal-packshot_01.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Integrated/26080-Novy-Crystal-detail_04.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
/Cooker hoods/Canopy/26080-Novy-Crystal-ambient_01.jpg?rmode=crop&width=538&height=538&format=webp&quality=70)
Novy Crystal 90 cm White
- Integrated in a decorative chimney or alcove
- Integrated dimmable LED lighting (3,000 K)
- Discreetly finished in white glass
Optional
£ 964 including VAT
Specifications
Energy label
Energy Efficiency class (EEIhood)
B
Annual Energy Consumption (kWh/year) (AEChood)
59,3
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
A
Grease Filtering Efficiency class (GFEhood)
D
Functions and features
Control method
Push buttons
Number of speeds
4
Automatic Power revert (minutes)
6
Motor
Integrated
Sound absorber
Integrated
Recirculation
Optional
InTouch function
Standard
Auto stop
Yes
Delayed switch off (minutes)
10/30
Number of grease filters
1
Grease filter
26050020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Lighting
Functional lighting type
Led strip
Ambient lighting type
Not Applicable
Functional light dimmable
Yes
Soft-ON/OFF
No
Number of functional lights
2
Total energy consumption functional light (W)
14
Color functional light (K)
3000
Color ambient light (K)
Not Applicable
Dimensions
Product dimensions (WxDxH) (mm)
833 x 313 x 308
Width flange (mm)
14
Dimensions cut-out opening (WxD) (mm)
810 x 290
Advised mounting height induction hobs (Hmin-Hmax) (mm)
650 - 750
Min dimensions cabinet (WxDxH) (mm)
x 600 x
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 750
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 750
Diameter outlet (mm)
150
Position exhaust
Top
Airflow and noise level
Airflow duct out speed 1 (m³/h)
207
Airflow duct out speed 2 (m³/h)
276
Airflow duct out speed 3 (m³/h)
371
Airflow duct out max powerspeed (m³/h) (Qboost)
592
Sound pressure duct out speed 1 (dB(A))
28
Sound pressure duct out speed 2 (dB(A))
33
Sound pressure duct out speed 3 (dB(A))
39
Sound pressure duct out at max powerspeed (dB(A))
49
Technical specifications
Maximum power (W)
238
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1
Power consumption in stand-by-mode (Ps) (W)
0,23
Net weight (kg)
15
Related products
/Accessories/Grease Filter/26050020 Vetfilter Crystal.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Cleaning/906060-Inox-cleaner-packshot.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Duct Work/906401-Novy-Flat-Duct-packshot_02.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Duct Work/906.402-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Duct Work/906.403-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/906.404-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Duct Work/906.405-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Duct Work/906.406-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)

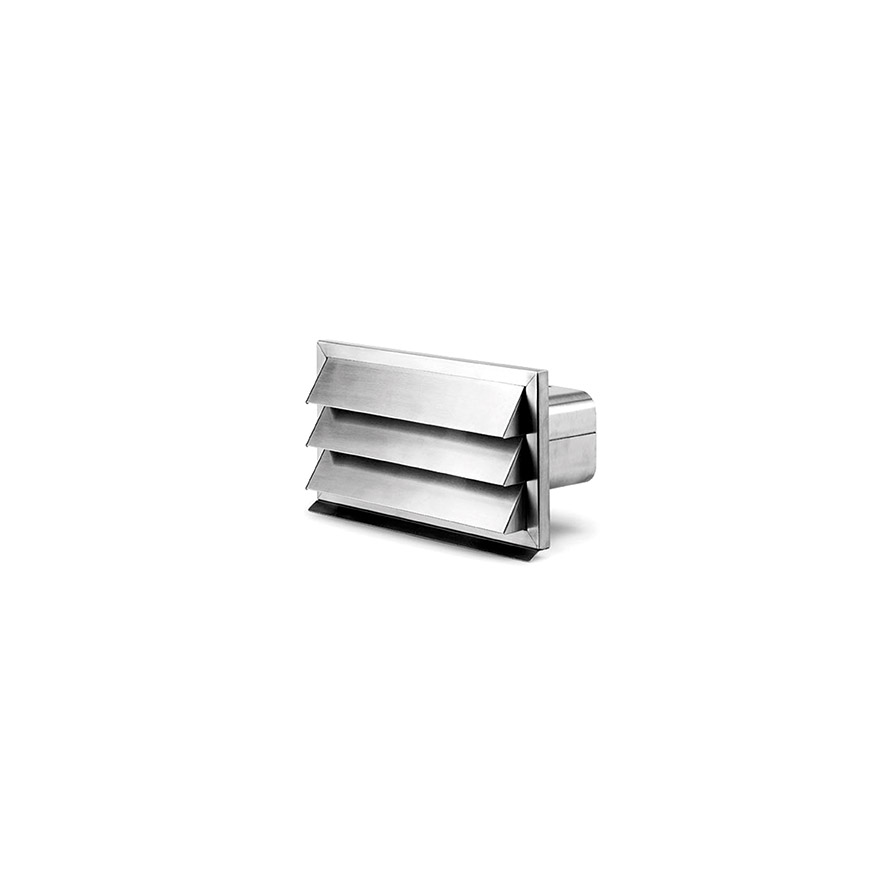

/Accessories/Duct Work/906.407-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Duct Work/906.418-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)

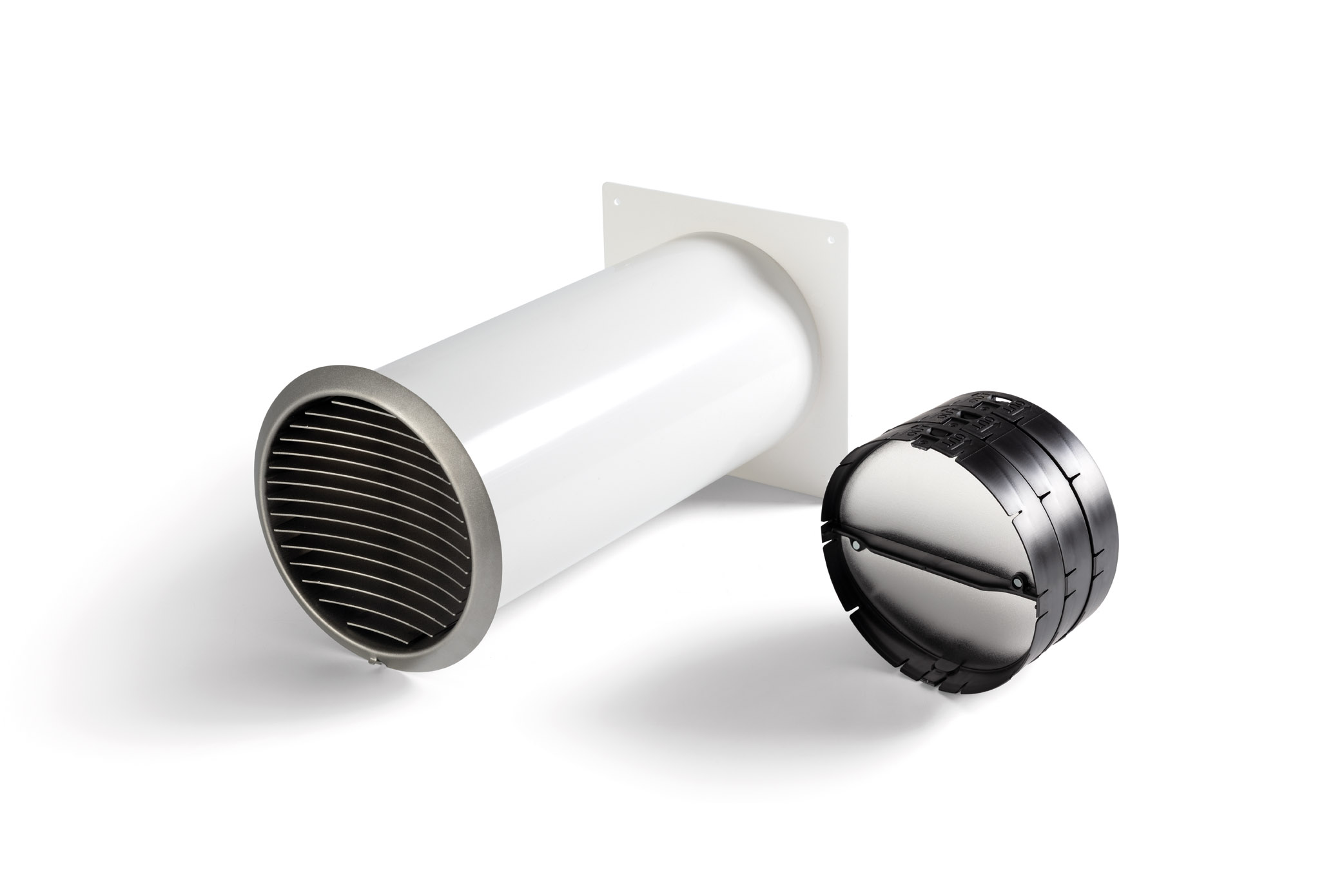

/Accessories/Duct Work/906420-wall-conduct-kit-for-ducting-packshot-1.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)

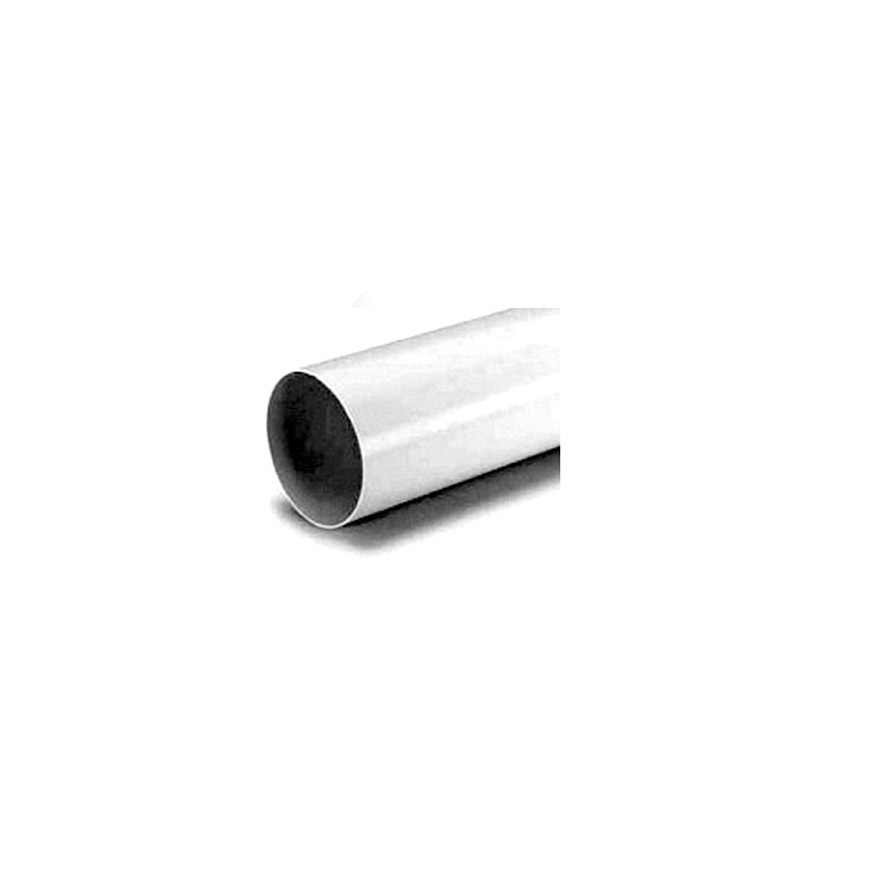

/Accessories/Duct Work/906.410-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)

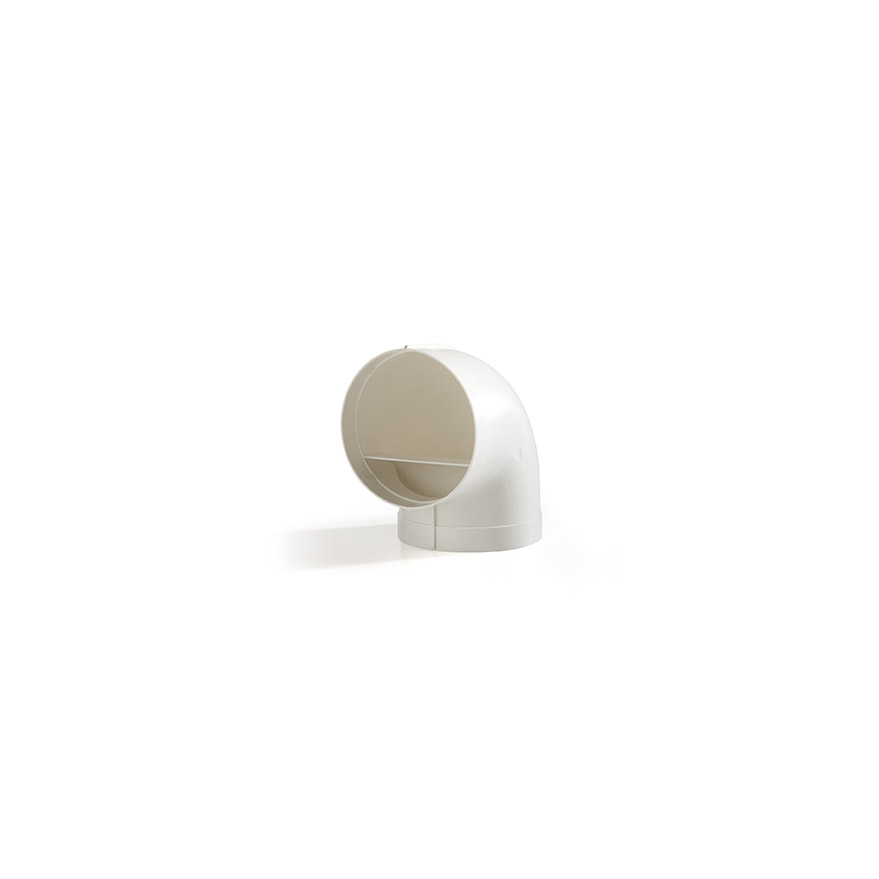

/Accessories/Duct Work/906.411-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)

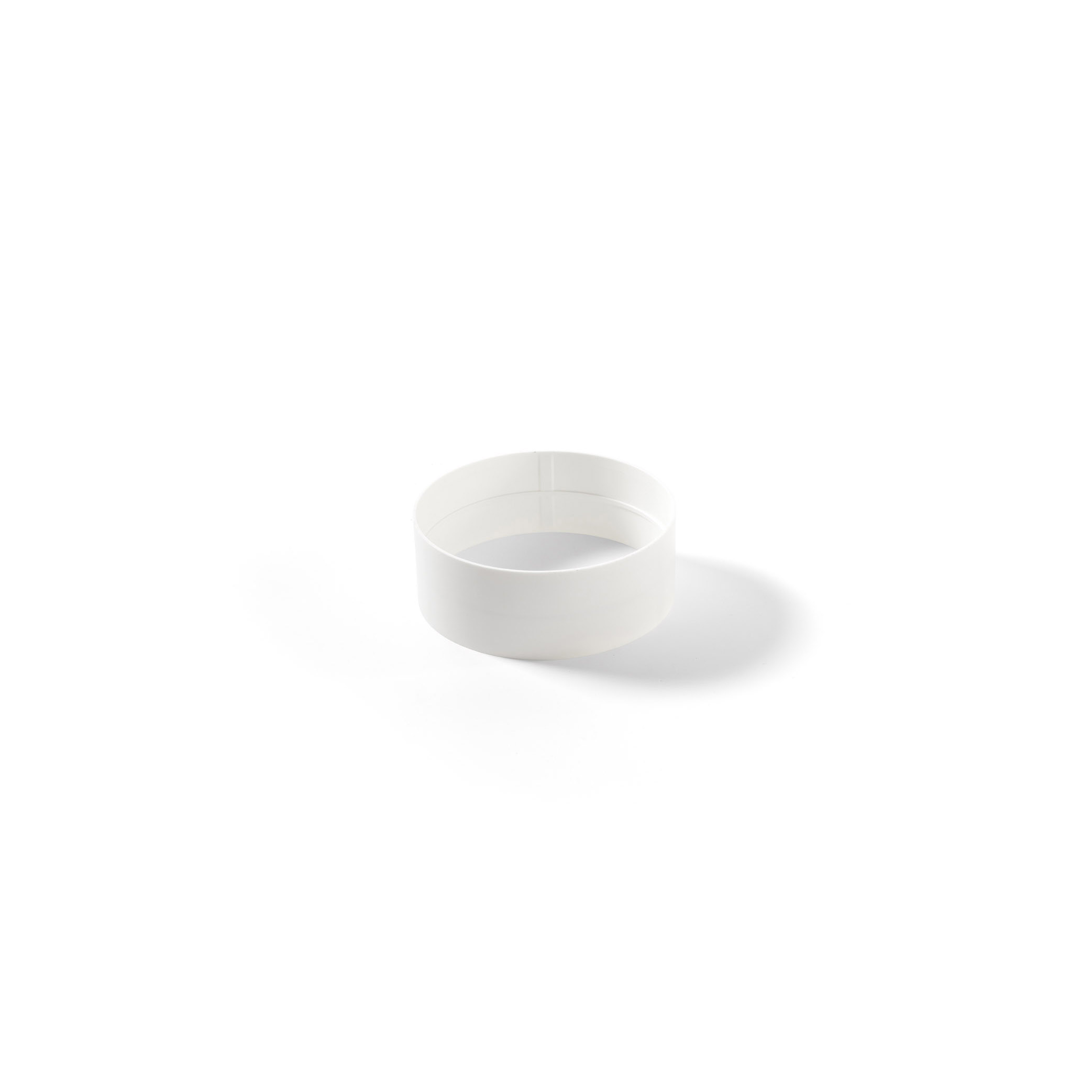

/Accessories/Duct Work/906.417_duct_work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)

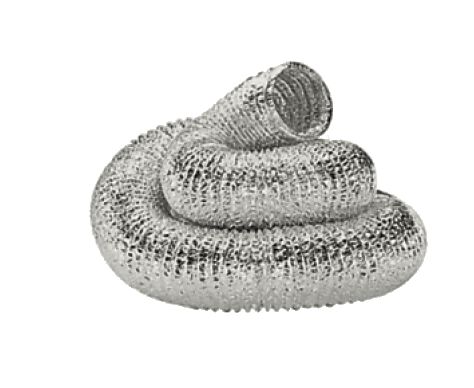

/Accessories/Duct Work/906218-Novy-Aluminium-Duct-packshot_01.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Duct Work/906287_flexibele_geluidsdemper_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Duct Work/906217-Novy-Aluminium-Duct-packshot_01.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Duct Work/906301_Installation_kit-150mm_packshot_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
/Accessories/Others/906.432_non_return_valve_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)

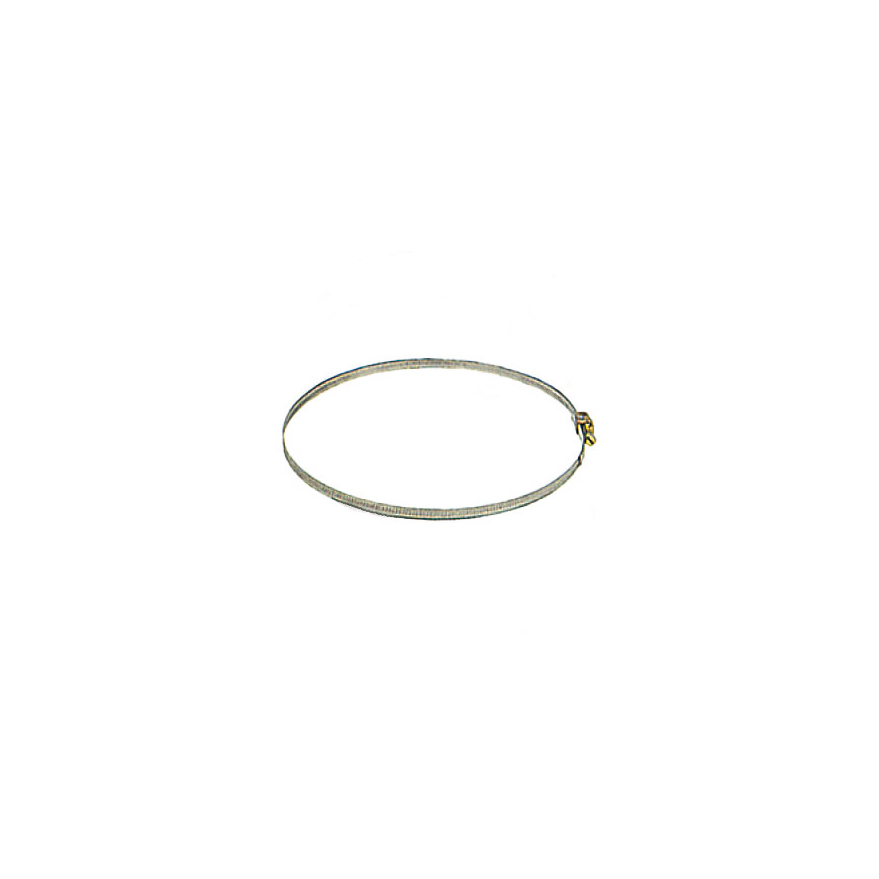

/Accessories/Duct Work/906291_packshot - web.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)

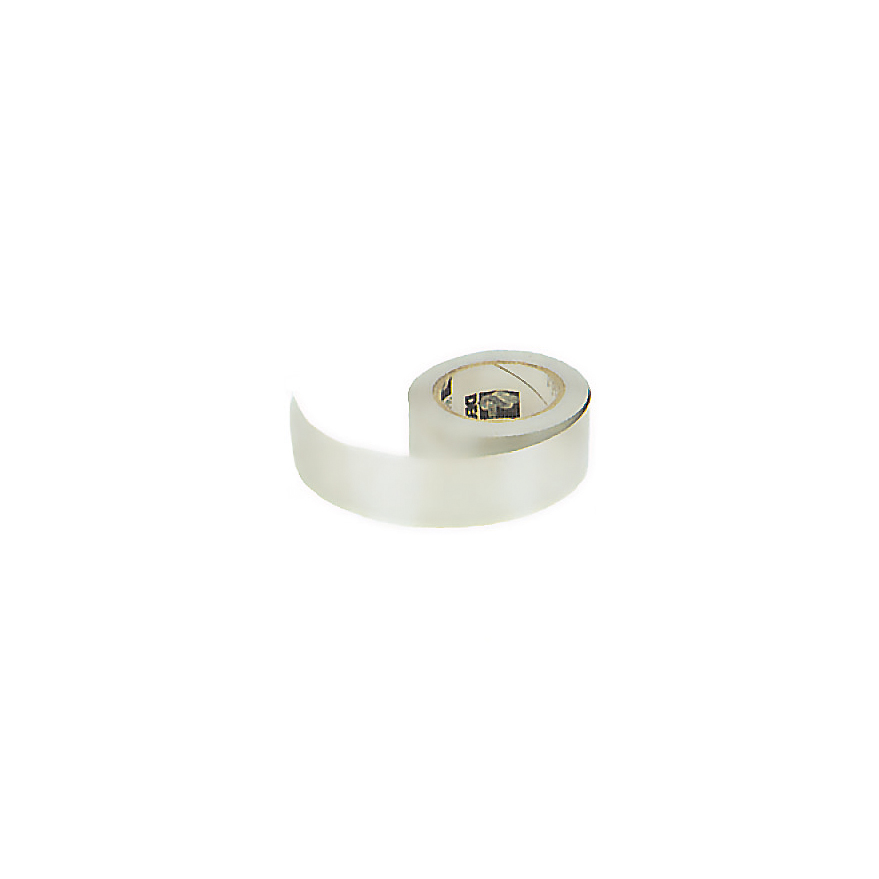

/Accessories/Duct Work/906292_packshot - web.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)

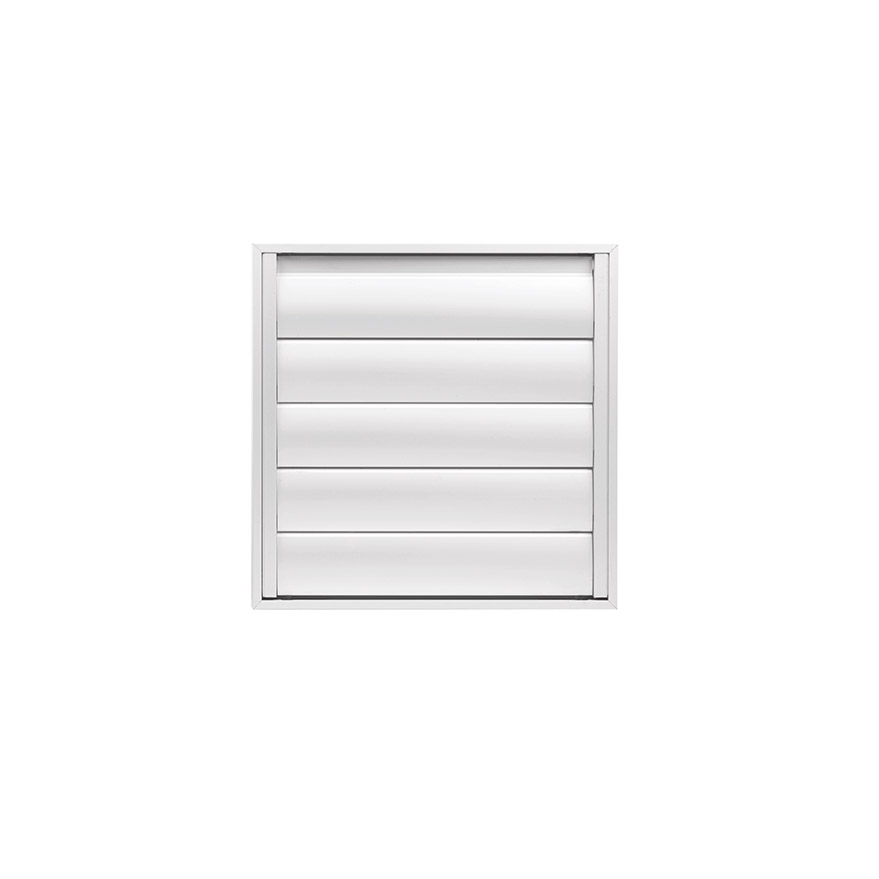

/Accessories/Duct Work/906.178-Duct Work_.jpg?rmode=crop&width=500&height=500&format=webp&quality=70)
