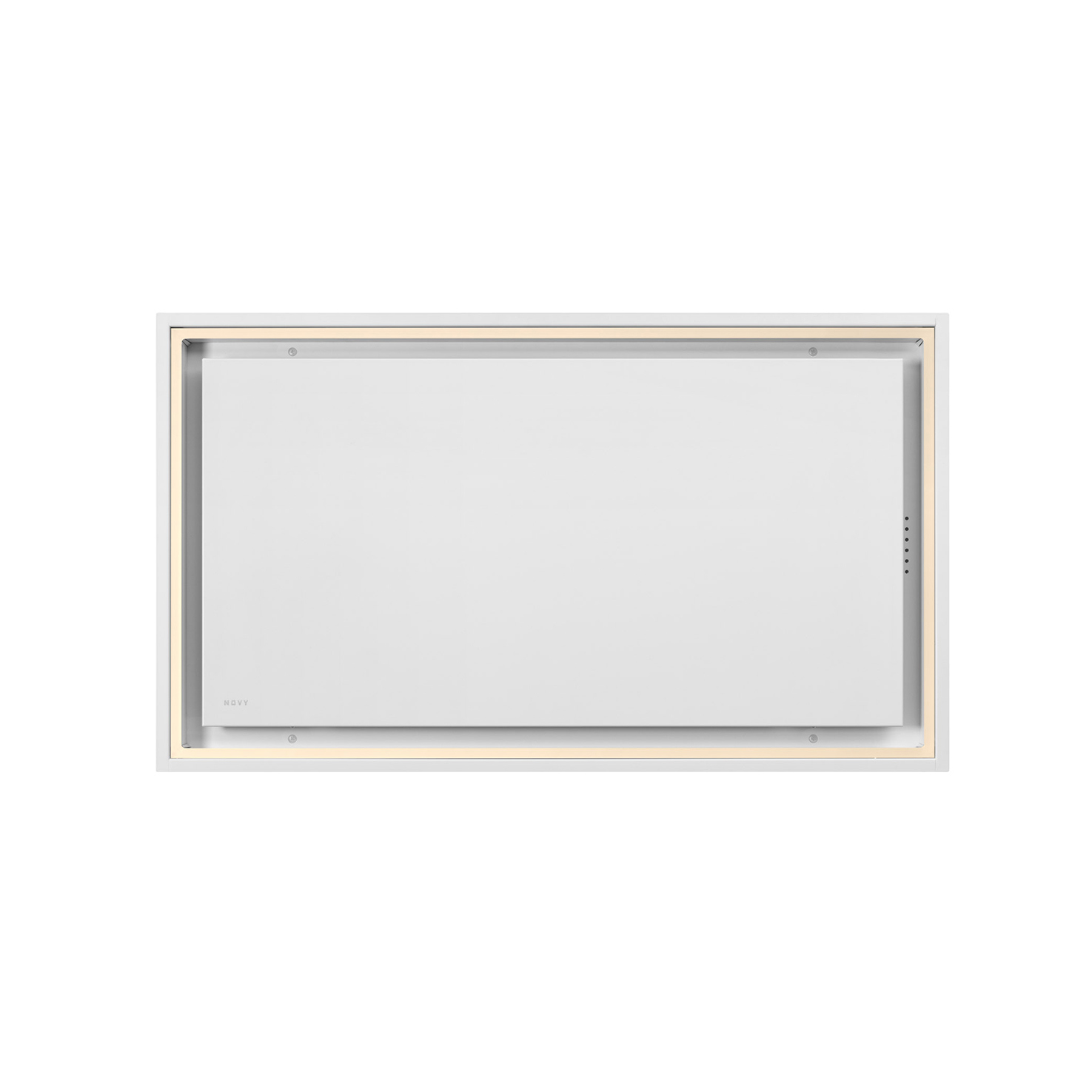

Novy Ceiling unit Novy Pureline Pro Compact 6911

Type number: 6911

Novy Ceiling unit Novy Pureline Pro Compact 6911 Enlarge
6911 Ceiling unit Pureline Pro Compact White
6911 Ceiling unit Pureline Pro Compact White
6911 Ceiling unit Pureline Pro Compact White
See other versions of this product

Novy Pureline Pro Compact 90 cm White

  • A built-in height of only 19.5 cm thanks to a compact motor
  • Flexible installation possibilities due to rotating motor in several directions (left, right, front or rear)
  • Maximum efficiency yet extremely quiet
  • LED lighting warm white (2,700 K) adjustable to neutral white (5,000 K)
  • Ultra slim led strip with extensive lighting function for the right amount of light and atmosphere during and after cooking (cooking mode and ambient mode)
  • Automatic speed control with the Novy Sense sensor for detection of cooking vapours and odour (optional)
  • Operation and settings possible via smartphone or tablet, as well as via remote control or InTouch
Show dealers
Add to my selection

Specifications

Energy label

Energy Efficiency class (EEIhood)
B
Annual Energy Consumption (kWh/year) (AEChood)
71,3
Lighting Efficiency class (LEhood)
B
Fluid Dynamic Efficiency class (FDEhood)
B
Grease Filtering Efficiency class (GFEhood)
D

Functions and features

Control method
Remote control
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Integrated
Sound absorber
Integrated
Recirculation
Optional
InTouch function
Standard
Auto stop
Yes
Delayed switch off (minutes)
10
Number of grease filters
2
Grease filter
6830020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes

Lighting

Functional lighting type
Led strip
Ambient lighting type
Led strip
Functional light dimmable
Yes
Soft-ON/OFF
Yes
Total energy consumption functional light (W)
21
Total energy consumption ambient light (W)
21
Color functional light (K)
2700-5000
Color ambient light (K)
2700-5000
External light connector
Not Applicable

Dimensions

Product dimensions (WxDxH) (mm)
868 x 508 x 195
Height incl. mounting clamps (without motorbox) (mm)
133
Width flange (mm)
15
Dimensions cut-out opening (WxD) (mm)
845 x 485
Advised mounting height induction hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 1600
Diameter outlet (mm)
222x89
Position exhaust
Right / Left / Front / Back

Airflow and noise level

Airflow duct out speed 1 (m³/h)
257
Airflow duct out speed 2 (m³/h)
474
Airflow duct out speed 3 (m³/h)
550
Airflow duct out max powerspeed (m³/h) (Qboost)
618
Sound pressure duct out speed 1 (dB(A))
29
Sound pressure duct out speed 2 (dB(A))
44
Sound pressure duct out speed 3 (dB(A))
48
Sound pressure duct out at max powerspeed (dB(A))
50

Technical specifications

Maximum power (W)
210
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1,2
Power consumption in stand-by-mode (Ps) (W)
0.48
Net weight (kg)
19,8
See all specifications

Manuals & downloads

Energy label Product File Technical File User Manual Installation Manual Conformity Declaration CAT
