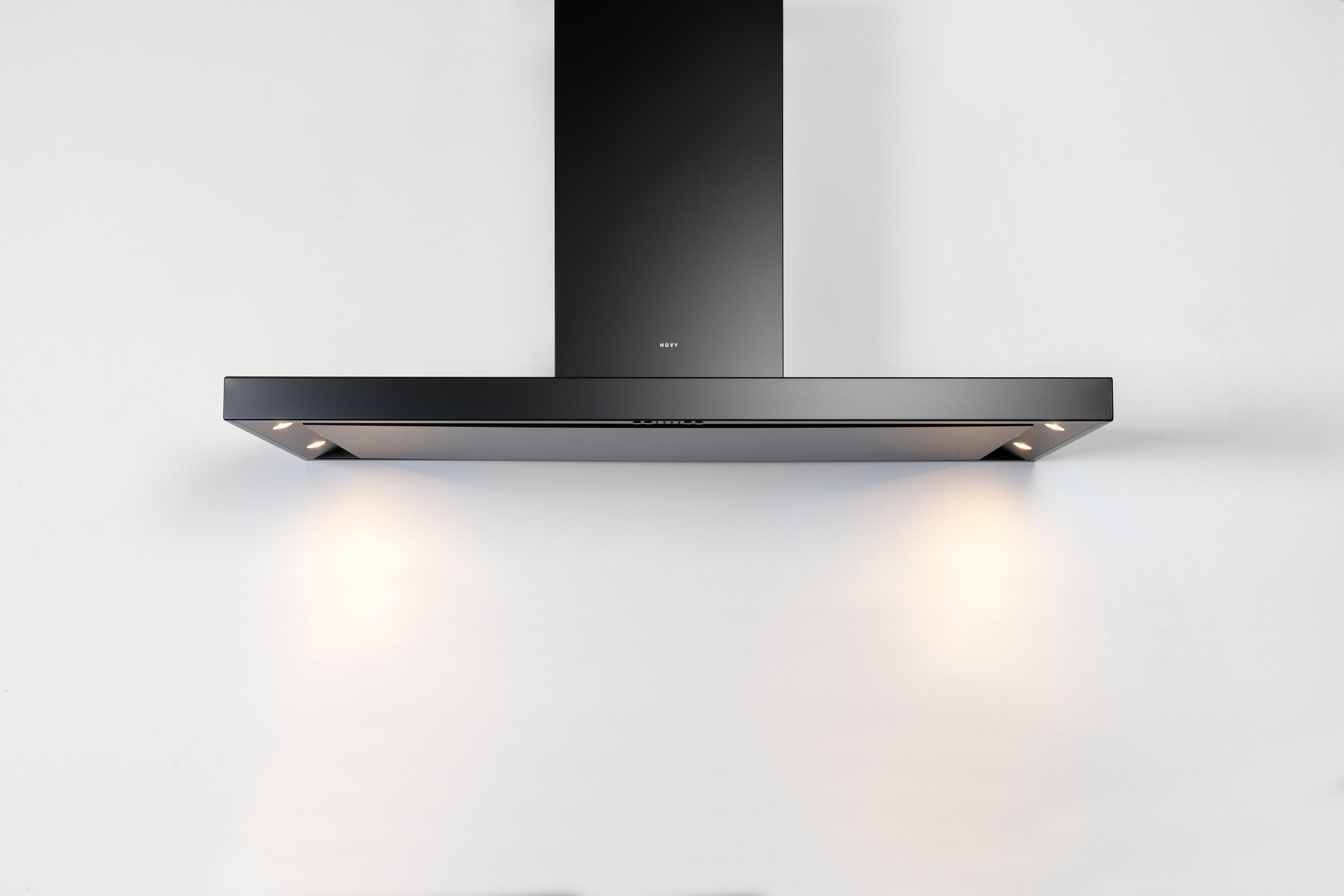

Wall mounted Novy Flatline 7612

Type number: 7612

Wall mounted Novy Flatline 7612 Enlarge
7612 Wall mounted Novy Flatline 120 cm Black
7612 Wall mounted Novy Flatline 120 cm Black
7612 Wall mounted Novy Flatline 120 cm Black
7612 Wall mounted Novy Flatline 120 cm Black
Clean lines in a timeless design

Novy Flatline 120 cm Mineral Black

  • Mineral Black: stylish design effect, low-maintenance and less sensitive to fingerprints
  • Extra slim lines
  • Seamless finish
  • Subtle looking LED lighting (2700K)
  • Reversible chimney for recirculation as standard
Ecosmart Cooker hoods with a motor (direct outlet) Installation height 75cm Peripheral extraction InTouch

Optional

Recirculation Remote control

£ 2,409 including VAT

Show dealers
See other versions of this product

Specifications

Energy label

Energy Efficiency class (EEIhood)
A+
Annual Energy Consumption (kWh/year) (AEChood)
33,7
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
A
Grease Filtering Efficiency class (GFEhood)
D

Functions and features

Control method
Push buttons
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Integrated
Sound absorber
Integrated
Recirculation
Optional
InTouch function
Optional
Auto stop
Yes
Delayed switch off (minutes)
10
Number of grease filters
1
Grease filter
7530020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Novy Connect
Not applicable

Lighting

Functional lighting type
LED
Ambient lighting type
Not Applicable
Functional light dimmable
Yes
Soft-ON/OFF
Yes
Number of functional lights
4
Total energy consumption functional light (W)
12
Color functional light (K)
2700
Color ambient light (K)
Not Applicable

Dimensions

Advised mounting height induction hobs (Hmin-Hmax) (mm)
650 - 750
Product dimensions exhaust (WxDxHmin-Hmax) (mm)
1198 x 554 x 660 - 1050
Product dimensions recirculation (WxDxHmin-Hmax) (mm)
1198 x 554 x 730 - 1120
Max height optional chimney exhaust (mm)
1410
Max height optional chimney recirculation (mm)
1480
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 750
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 750
Diameter outlet (mm)
150
Position exhaust
Top

Airflow and noise level

Airflow duct out speed 1 (m³/h)
259
Airflow duct out speed 2 (m³/h)
420
Airflow duct out speed 3 (m³/h)
550
Airflow duct out max powerspeed (m³/h) (Qboost)
631
Sound pressure duct out speed 1 (dB(A))
26
Sound pressure duct out speed 2 (dB(A))
38
Sound pressure duct out speed 3 (dB(A))
44
Sound pressure duct out at max powerspeed (dB(A))
48

Technical specifications

Maximum power (W)
117
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1,3
Power consumption in stand-by-mode (Ps) (W)
0.25
Net weight (kg)
35,6
See all specifications

Manuals & downloads

Energy label Product File Technical File Exploded View User Manual Installation Manual Declaration of conformity CAT Technical drawing Safety Instructions
